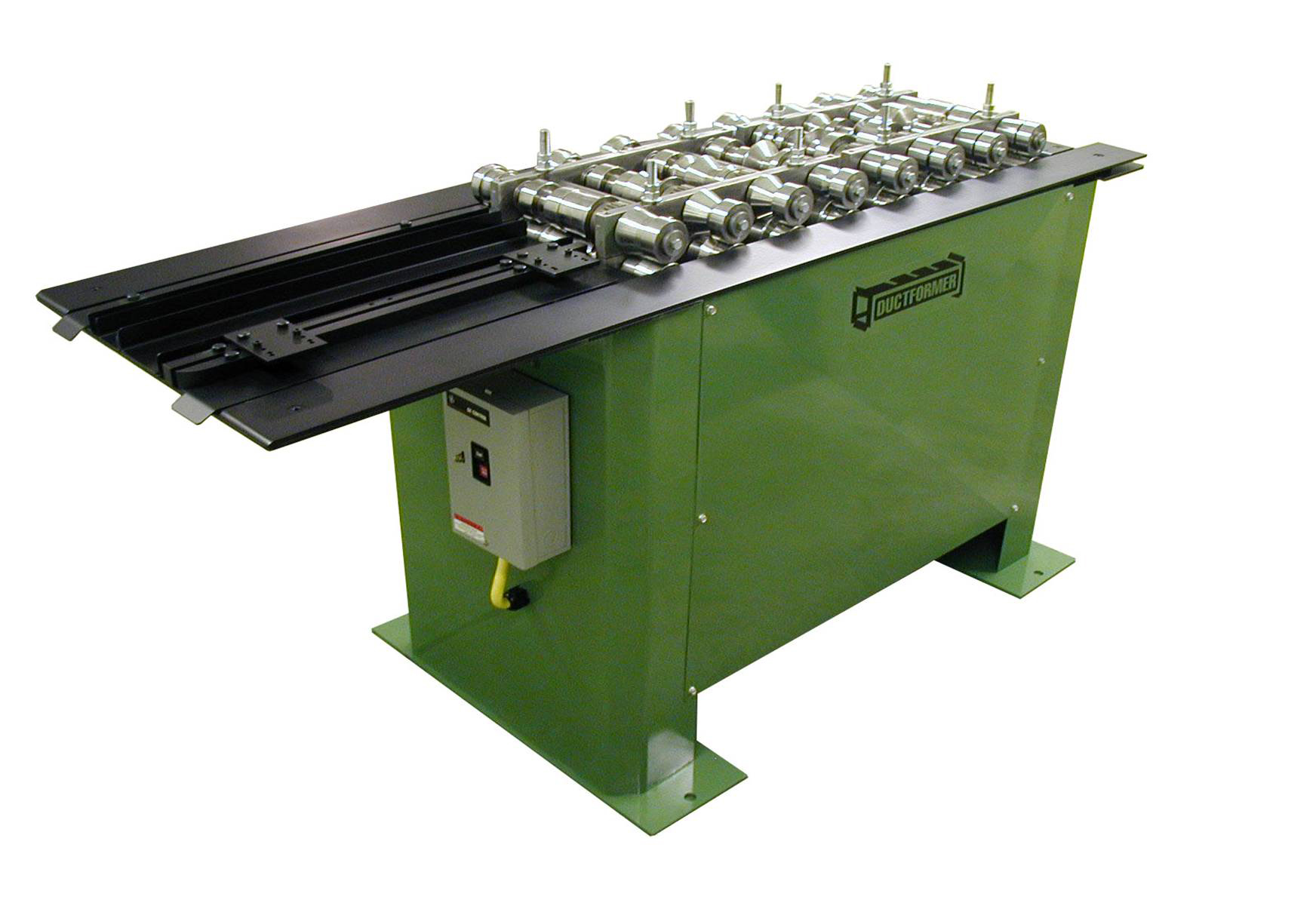

Ductformer 5HP 240V Three Phase Rollformer CR8
$8,833.50Current price is: $8,833.50.
- Motor: 5HP 240V Three Phase
- Speed: 60 FPM
- Passline Height: 34”
- Gauge Capacity w/additional tooling: 16-28
Ductformer 5HP 240V Three Phase Rollformer CR8 is a Ductformer product in the Metal Forming & Shaping collection.
Product Details
- Motor: 5HP 240V Three Phase
- Speed: 60 FPM
- Passline Height: 34”
- Gauge Capacity w/additional tooling: 16-28
- Description
- The model CR8 is the work horse of the Ductformer line. It can accommodate up to four sets of tooling (available tooling options listed below). Ductformer’s CR8 Rollformers are designed with versatility and flexibility in mind. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 he quietest machine in its class. See the difference, hear the difference.
- You will notice the quality of the Ductformer Rollformer as soon as you turn the power on. The quietness while running reveals the machines’ precision workmanship and superior design guaranteeing years of dependable service. The sealed Bearings are protected from contamination eliminating lubrication or maintenance. The Oil Bath Gear Reduction Transmission Unit (U.S. brand) is both quiet and smooth running. In addition, all of the CR8’s tooling options are made in Ductformer’s own machine shop on new CNC machines.
- Features
- Sealed Roller Bearings – keep metal particles out of bearings and eliminates external thrust bearings
- All New Computer-Aided Design – all hardened roll tooling and eliminates Pittsburgh opening rolls
- Full Oil Bath Gear Reducer – quiet running, strong power transmission
- All Gear Drive – built for day in, day out use
- Specifications
- 16-28 gauge capacity
- Dimensions: 69”L x 24”W x 40”H
- Passline: 34”
- Weight: 900 lbs
- Full Hardened Tool Steel Infeed Guides
- Options
- Multiple Roll Tolling options available as add-ons Flat ‘S’ Slip (Inboard Rolls) Drive Cleats (Inboard Rolls) Male and Female Snap-Lock (Outboard Rolls) Pittsburgh (16-28 Gauge Capacity – Outboard Rolls) Acme Seams (Outboard Rolls) Tri-Plex (Outboard Rolls) Standing Seam (Outboard Rolls)
- Flat ‘S’ Slip (Inboard Rolls)
- Drive Cleats (Inboard Rolls)
- Male and Female Snap-Lock (Outboard Rolls)
- Pittsburgh (16-28 Gauge Capacity – Outboard Rolls)
- Acme Seams (Outboard Rolls)
- Tri-Plex (Outboard Rolls)
- Standing Seam (Outboard Rolls)
Specifications
- Manufacturer: Ductformer
- SKU: CR8 (240V)
- Shipping Method: Flatbed
- Weight: 900 lb
- Dimensions: 69 × 24 × 40 in
- Country of Origin: United States of America
| Weight | 900.0 lbs |
|---|---|
| Dimensions | 69.0 × 24.0 × 40.0 in |
| Brand | Ductformer |
