Ductformer 5HP 440V Three Phase Flat S and Drive Cleat Automated Coil Feed Rollform System
$35,808.50Current price is: $35,808.50.
- Motor: 5HP 440V Three Phase
- Line Speed: 24 FPM
- Gauge Capacity: 22-26 Ga
- Passline Height: 35”
Ductformer 5HP 440V Three Phase Flat S and Drive Cleat Automated Coil Feed Rollform System is a Ductformer product in the Metal Forming & Shaping collection.
Product Details
- Motor: 5HP 440V Three Phase
- Line Speed: 24 FPM
- Gauge Capacity: 22-26 Ga
- Passline Height: 35”
- Description

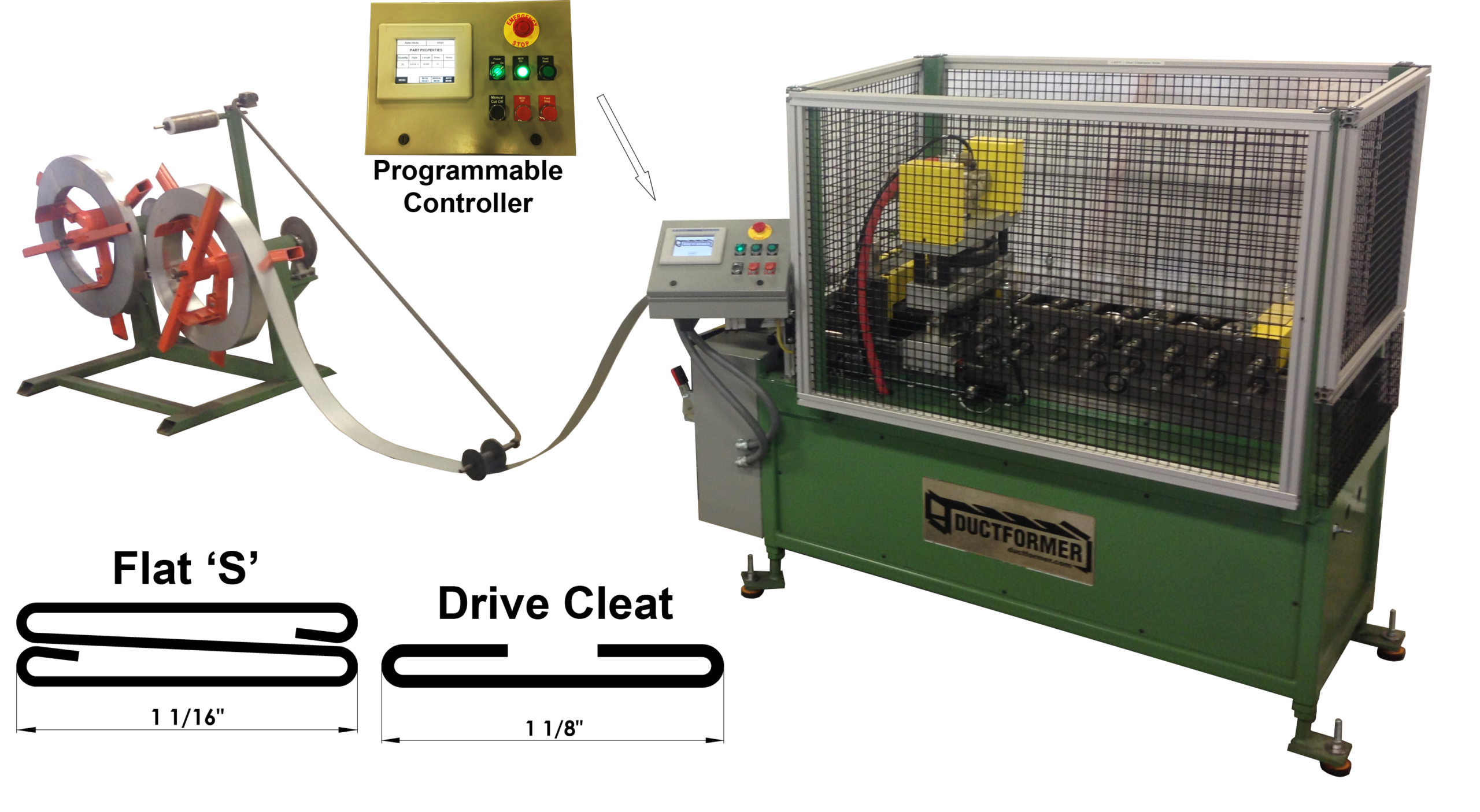

- The Automated CR8-SDC Auto Feed Rollform System is designed to feed and form the Flat ‘S’ and Drive Cleats on the inboard Rolls directly from coil stock. The Automated System consists of a Dual Station Coil Cradle, Flying Shear Cut Off Die, and Pre-Tooled Rollformer to form either Flat ‘S’ or Drive Cleat sections in a single pass-through operation. The Pre-Tooled Rollformer consist of one (1) set of Hardened and Polished Steel Roller Dies to form the Drive Cleat Profile and one (1) set of Hardened and Polished Steel Roller Dies to form the Flat ‘S’ Profile in a single pass-through operation. Rolls will form the section from 22-26 gauge galvanized mild steel.
- A User Friendly / Programmable Controller will sequence the strip feed and cycle the Cut Off Die based on simple batch quantity and part length inputs. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 the quietest machine in its class! See the difference, hear the difference!
- Features
- 8 Station Rollformer
- All Gear Drive
- Self-adjusting Full Gauge Range
- Oil Bath Gear reduction transmission
- Hardened tool steel entrance guides
- Hardened & Polished Rolls
- Maintenance free Anti-friction Sealed Roll Bearings
- Pneumatic Flying Cut-Off
- Specifications
- Gauge Range: 22-26 Ga
- 60 Hz
- Dimensions: 225”L x 39”W x 75”H
- Weight: 2,200 lbs
Specifications
- Manufacturer: Ductformer
- SKU: Coil Feed-SDC (440V)
- Shipping Method: Flatbed
- Weight: 2,500 lb
- Dimensions: 100 × 75 × 75 in
- Country of Origin: United States of America
| Weight | 2500.0 lbs |
|---|---|
| Dimensions | 100.0 × 75.0 × 75.0 in |
| Brand | Ductformer |
