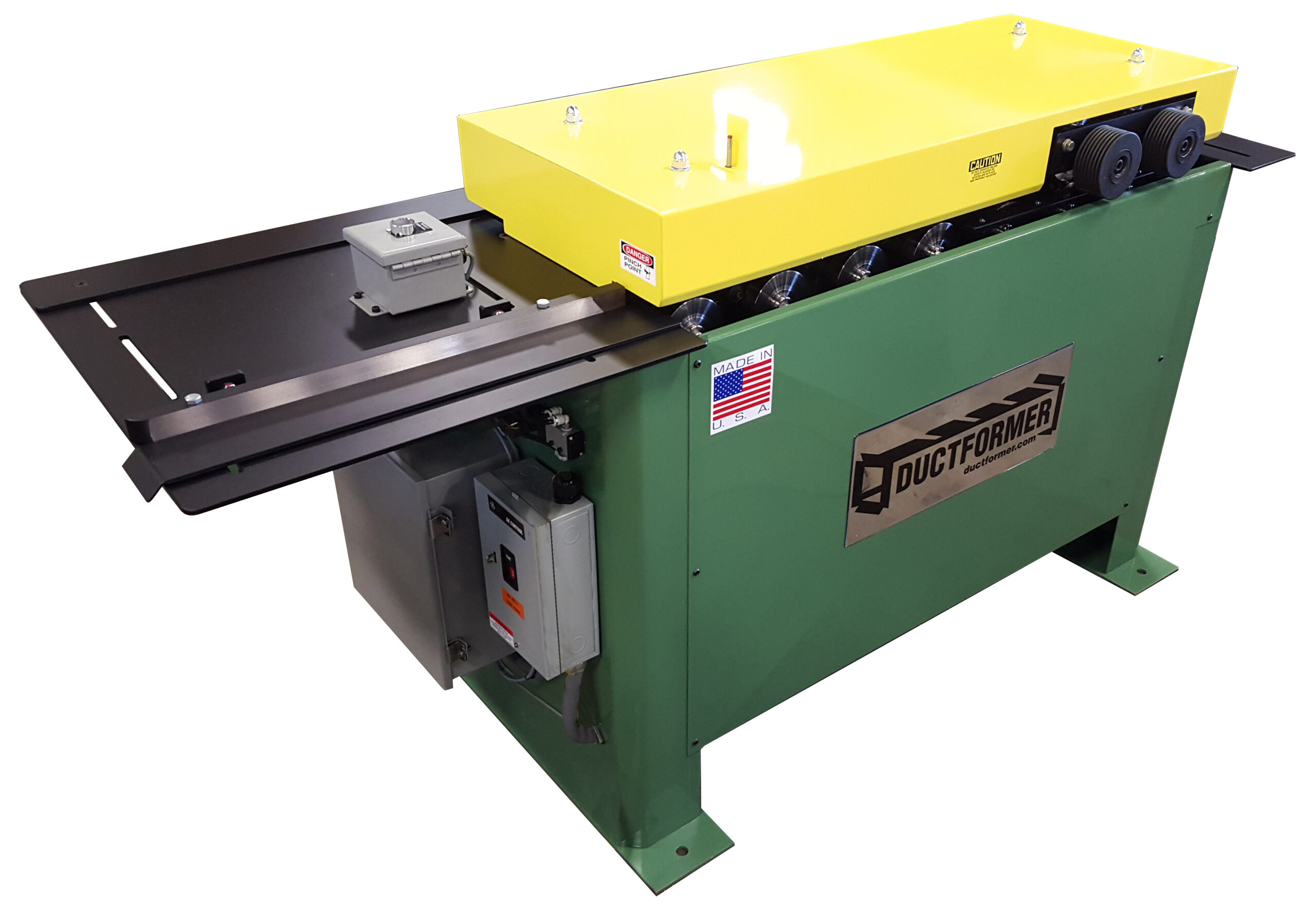

Ductformer 5HP 440V Three Phase Single Head Cleat Former CR8-CF
$22,360.00Current price is: $22,360.00.
- Motor: 5HP 440V Three Phase
- Line Speed: 50 FPM
- Gauge Capacity: 18-26 Ga
- Passline Height: 34”
Ductformer 5HP 440V Three Phase Single Head Cleat Former CR8-CF is a Ductformer product in the Metal Forming & Shaping collection.
Product Details
- Motor: 5HP 440V Three Phase
- Line Speed: 50 FPM
- Gauge Capacity: 18-26 Ga
- Passline Height: 34”
- Description
- Ductformer’s Model CR8-CF forms the Drive Cleat Flange on the end of the Duct. This is in a single pass-through operation for use with both L-Shape or Full Wrapper Duct. All of Ductformer’s standard Rollformers come equipped with a System that features an all gear drive, direct oil bath gear reduction, and sealed (lube for life) bearings to provide the smoothest, quietest Rollformer on the market to date.
- The Roll Tooling forms the 180° Drive Cleat hems on one edge of the pre-notched sheet metal. As the pre-cut Duct passes through the Model CR8-CF, the system senses the notch to form the Cleat Edges for L-shape and Full Wrapper Duct. The Small Parts Feed for smaller Duct or Fittings comes standard on the Drive Cleat Edge Former. Parts are clamped onto the Roller Guide and fed through the Rollformer.
- You will notice the quality of the CR8-CF Cleat Edge Former as soon as you turn the power on. The quietness while running reveals the precision workmanship and superior design to provide years of dependable service. Just like all Ductformer products, everything is American made at their plant in St. Louis, MO.
- Features
- Simple selector switch allows you to choose a leading or trailing form option
- Forms 180° drive cleat hems on pre-notched blanks
- Forms 180° hems for pans
- Air Actuated
- All sealed roller bearings
- All gear drive
- Heavy duty oil bath gear reducer
- High efficiency motor
- Specifications
- Dimensions: 72”L x 48”W x 48”H
- Weight: 900 lbs
Specifications
- Manufacturer: Ductformer
- SKU: CR8-CF (440V)
- Shipping Method: Flatbed
- Weight: 900 lb
- Dimensions: 72 × 48 × 48 in
- Country of Origin: United States of America
| Weight | 900.0 lbs |
|---|---|
| Dimensions | 72.0 × 48.0 × 48.0 in |
| Brand | Ductformer |
