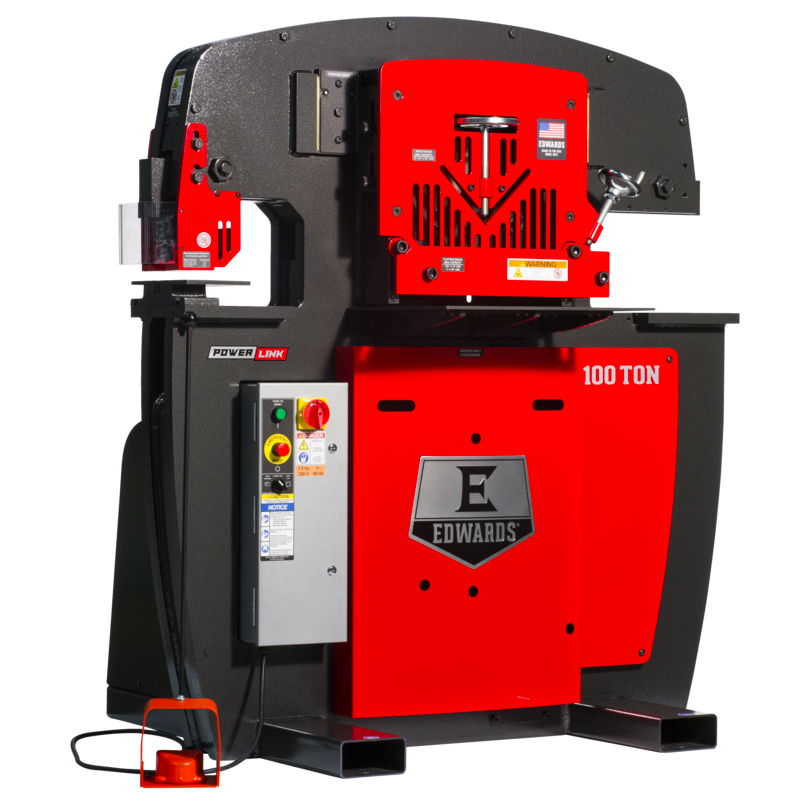

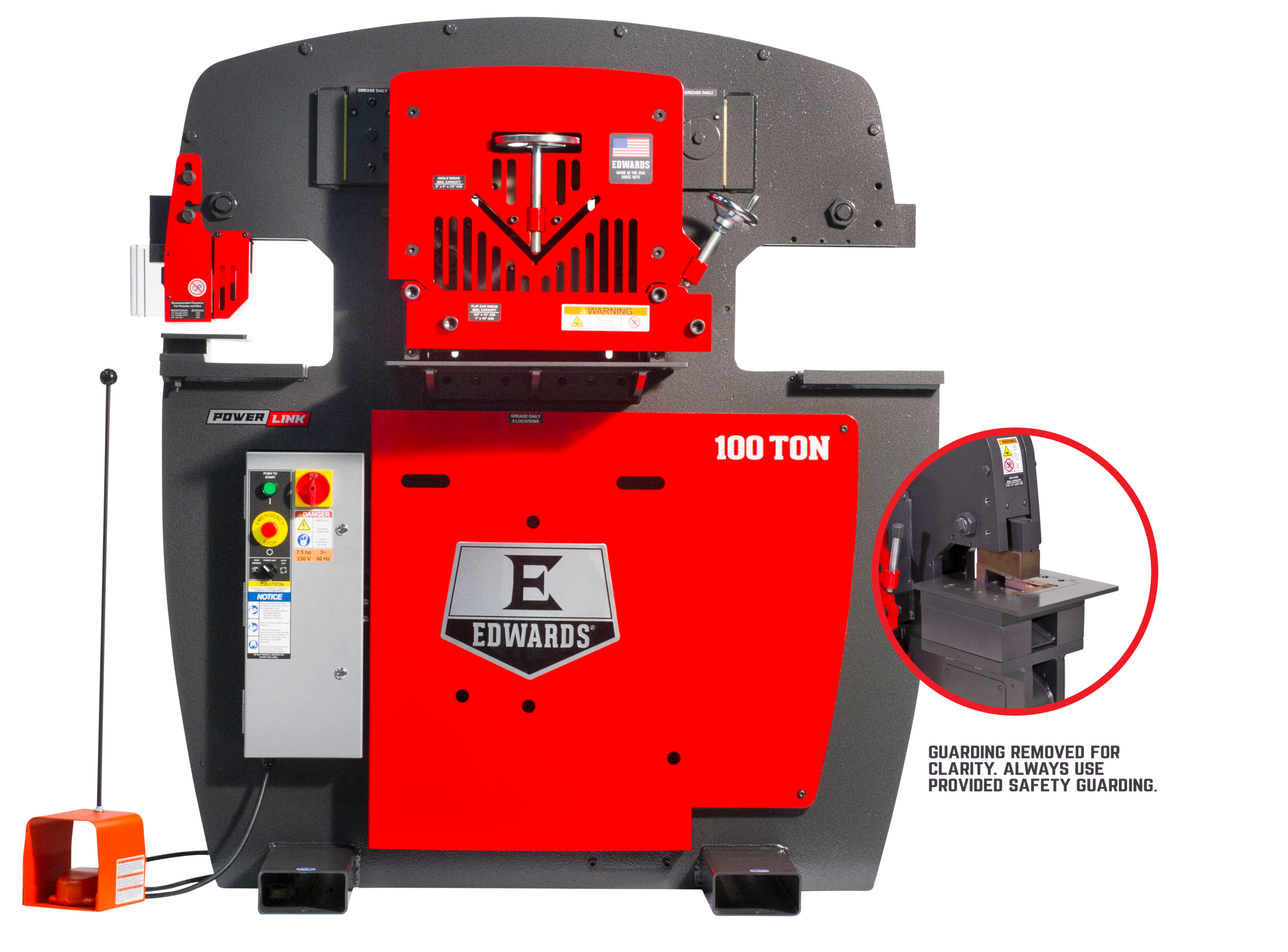

Edwards 100 Ton Ironworker 230V, 1Ph, PowerLink, Coper Notcher & 2 LED Lights 10203512

Edwards 100 Ton Ironworker 230V, 1Ph, PowerLink, Coper Notcher & 2 LED Lights 10203512 is a Edwards Manufacturing product in the Ironworkers collection.

Product Details

• Adjustable electric stoke control
• ANSI B11.5-1988(02) Compliant Guarding
• Bright LED lights increases visibility
• Durable, heavy-duty Made in USA steel construction
• ETL Certified Controls
• This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed Coper Notcher. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
• Optional Accessories available to increase precision and efficiency
• Specification: Value
• Motor Speed (RPM): 1765
• Punch Max Capacity (In.): 1-1/16 dia in 1" A36"
• Punch Stroke (In.): 1-13/16
• Punch Throat Depth (In.): 11
• Punch Work Height (In.): 39-1/16
• Flat Bar Shear Max Capacity 1": 14
• Flat Bar Shear Work Height (In.): 37
• Weight (Lbs.): 4650
• Flat Bar Shear Max Square (In): 1-1/4
• Flat Bar Shear Max Round (In): 1-1/4
• Hydraulic Pump (GPM): 10-1/2
• Punch Shut Height (In): 6-15/16
• Punch Open Height (In): 8-3/4
• Rating (Tons): 100
• Reservoir (Gal.): 7
• Valve Pressure (PSI): 3500
• Motor (HP): 7.5 HP 1 ~ 230V
• Motor Amps: 36
• Length: 46.0000
• Height: 67.0000
• Weight: 4735.0000
• Width: 69.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-10203512
• UPC: 731325864144
• Shipping Method: Flatbed
• Weight: 4,735 lb
• Dimensions: 46 × 69 × 67 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts) / 1 Year (Labor)
