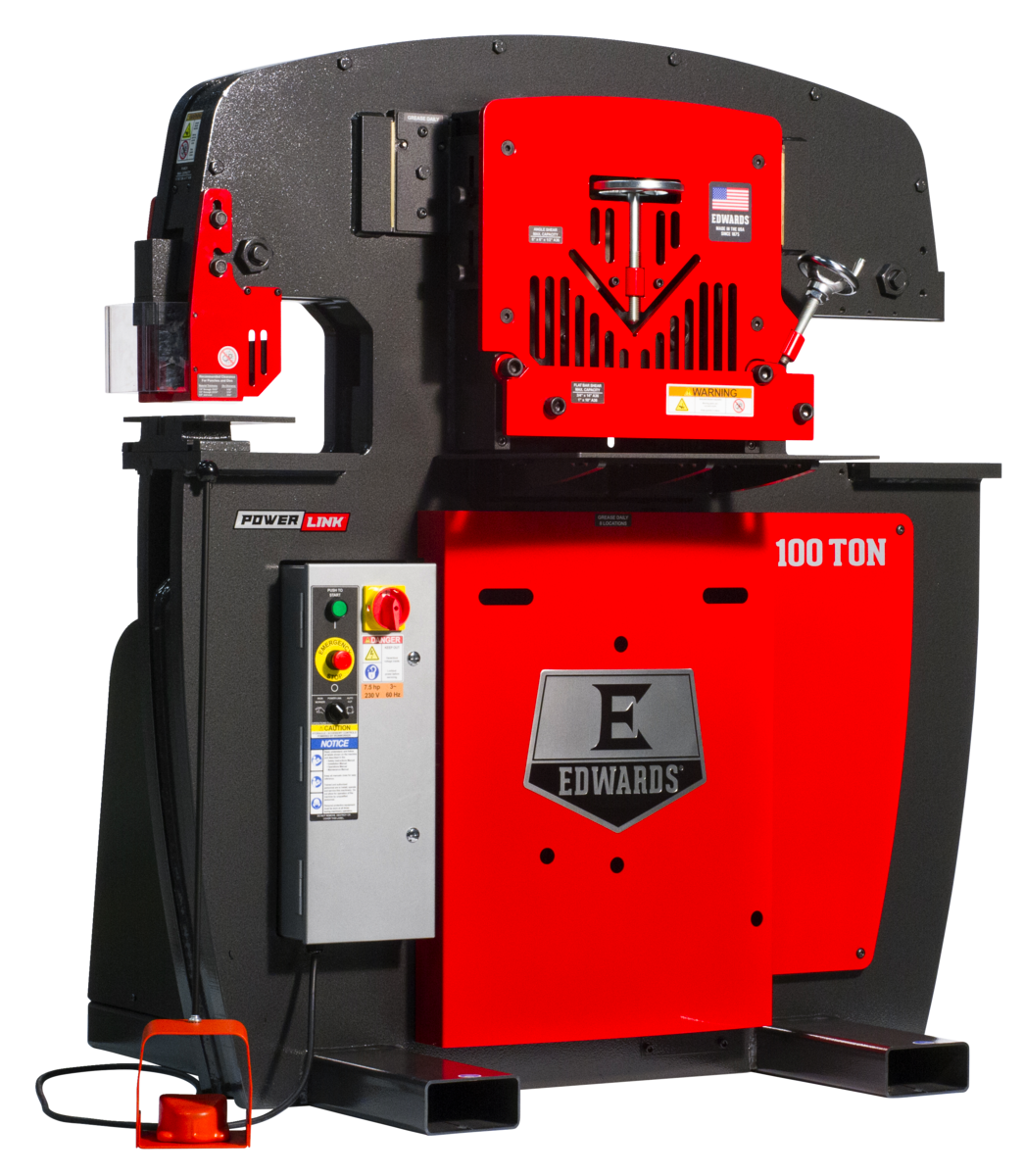

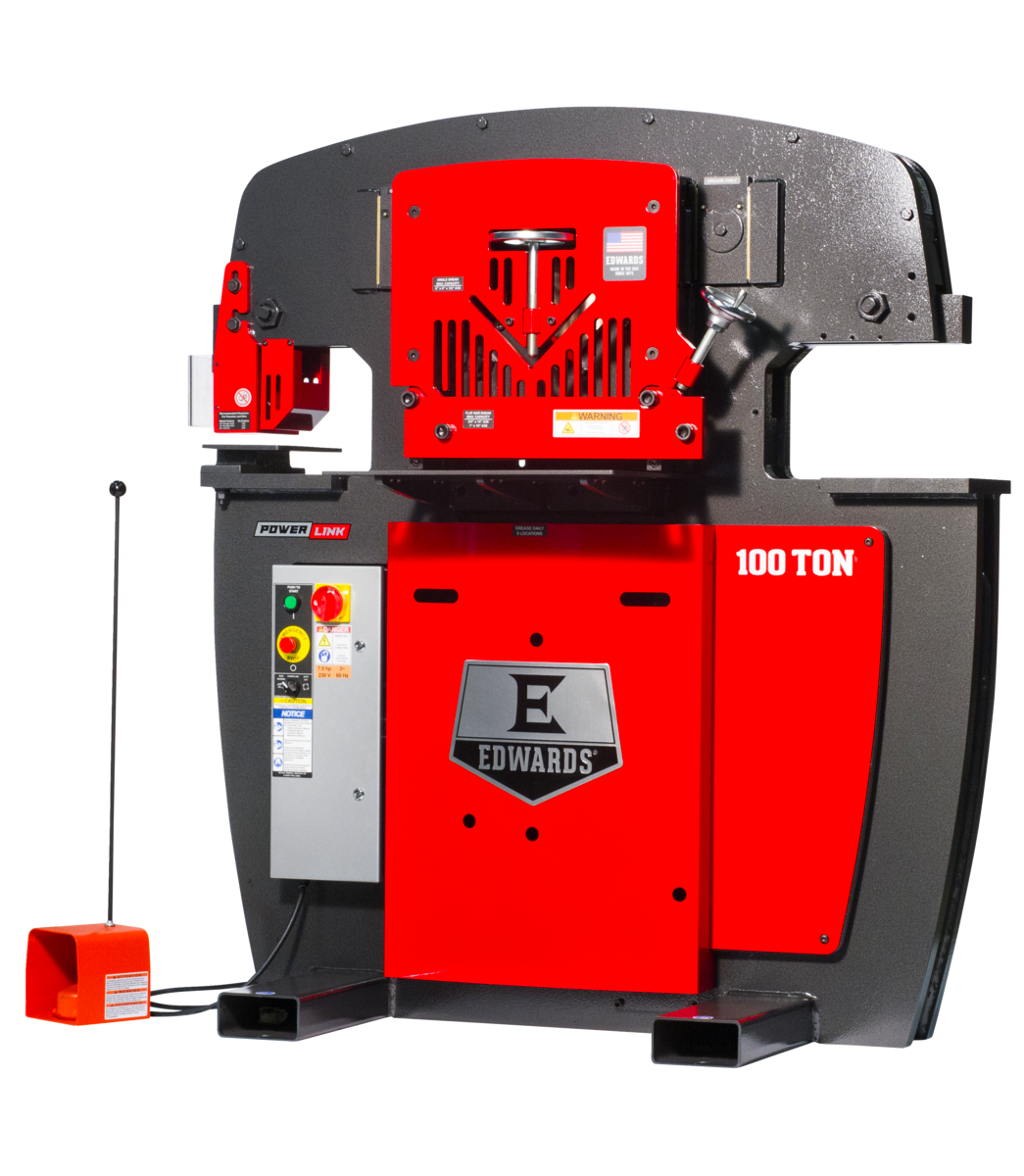

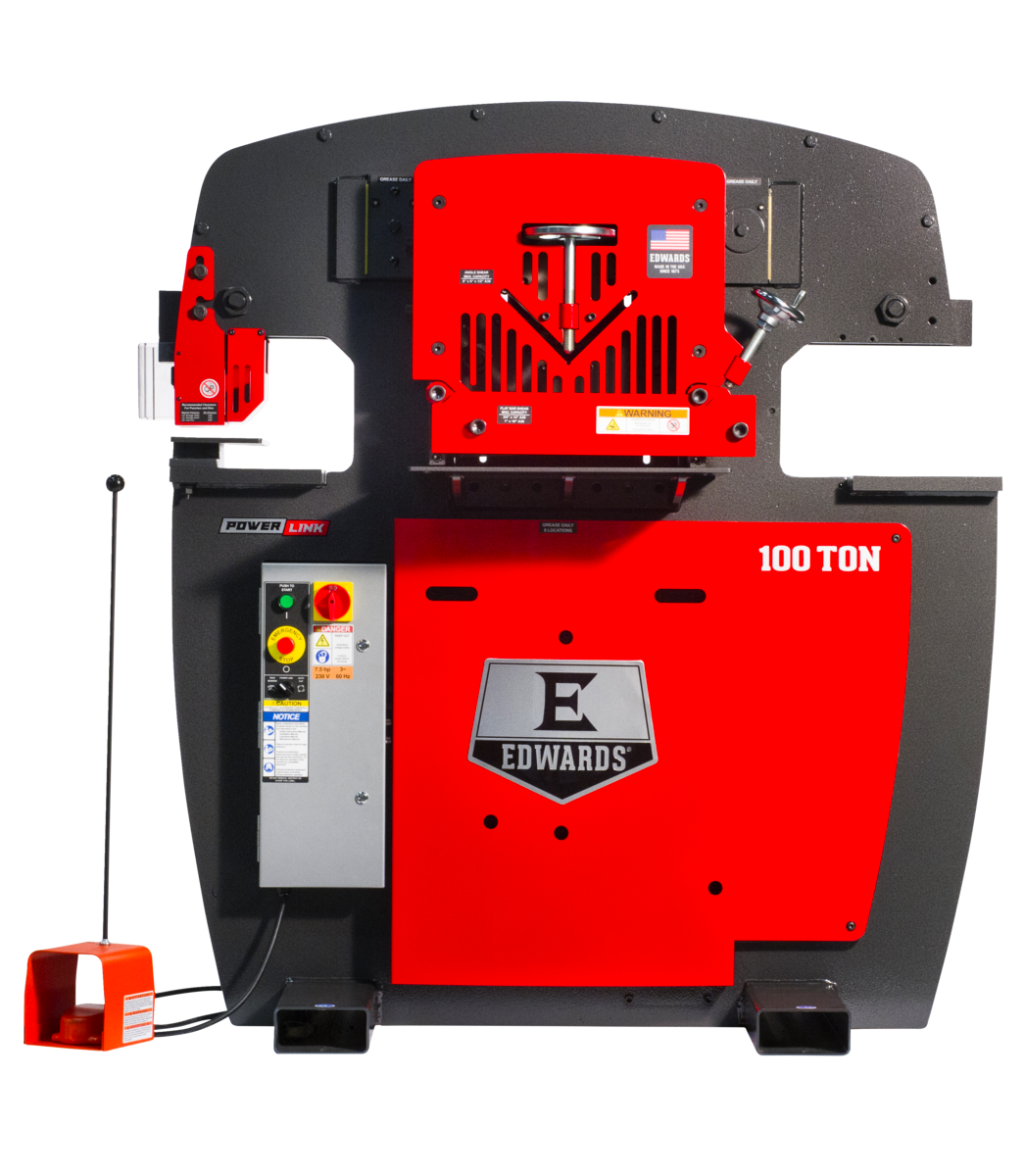

Edwards 100 Ton Ironworker 460V, 3Ph, with PowerLink IW100-3P460-AC600

Edwards 100 Ton Ironworker 460V, 3Ph, with PowerLink IW100-3P460-AC600 is a Edwards Manufacturing product in the Ironworkers collection.

Product Details

• Adjustable electric stoke control
• ANSI B11.5-1988(02) Compliant Guarding
• Bright LED lights increases visibility
• Durable, heavy-duty Made in USA steel construction
• Electric foot pedal with integrated jog control
• Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to your needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
• ETL Certified Controls
• Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
• Specification: Value
• Motor Speed (RPM): 1765
• Punch Max Capacity (In.): 1-1/16 diam. in 1 mild steel
• Punch Stroke (In.): 1-13/16
• Punch Work Height (In.): 39-1/16
• Flat Bar Shear Max Capacity 1": 10
• Flat Bar Shear Max Capacity (In.): 3/4 x 14, 1 x 10
• Flat Bar Shear Work Height (In.): 37
• Flat Bar Shear Max Round Capacity (In.): 1-1/4
• Angle Shear Max Capacity (In.): 6 x 6 x 1/2
• Angle Shear Work Height (In.): 43-15/16
• Weight (Lbs.): 4650
• Coper Notcher Max Capacity (In.): 2-1/2 x 6 x 1/2
• Flat Bar Shear Max Square (In): 1-1/4
• Coper Notcher Work Height (In.): 42
• Flat Bar Shear Max Capacity 3/4": 14
• Flat Bar Shear Max Round (In): 1-1/4
• Open Workstation Throat Depth (In.): 14-3/4
• Open Workstation Work Height (In.): 37
• Hydraulic Pump (GPM): 10-1/2
• Punch Shut Height (In): 6-15/16
• Punch Open Height (In): 8-3/4
• Amps: 11
• Hydraulics (GPM): 10-1/2
• Rating (Tons): 100
• Reservoir (Gal.): 17
• Hydraulics (PSI): 3500
• Hydraulic Reservoir (Gal.): 17
• Valve Pressure (PSI): 3500
• Product Dimensions (In.): 56-1/8 x 45 x 61-11/16
• Motor (HP): 7.5 HP 3 ~ 460V
• Overall Dimensions (L x W x H) (In.): 45 x 56-1/8 x 61-11/16
• Motor Amps: 11
• Shipping Dimensions (L x W x H) (In.): 46 x 69 x 67
• Gross Weight (Lbs): 4650
• Height: 67.0000
• Length: 46.0000
• Weight: 4650.0000
• Width: 69.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-IW100-3P460-A
• UPC: 731325555790
• Shipping Method: Flatbed
• Weight: 4,650 lb
• Dimensions: 46 × 69 × 67 in
• Country of Origin: United States of America
