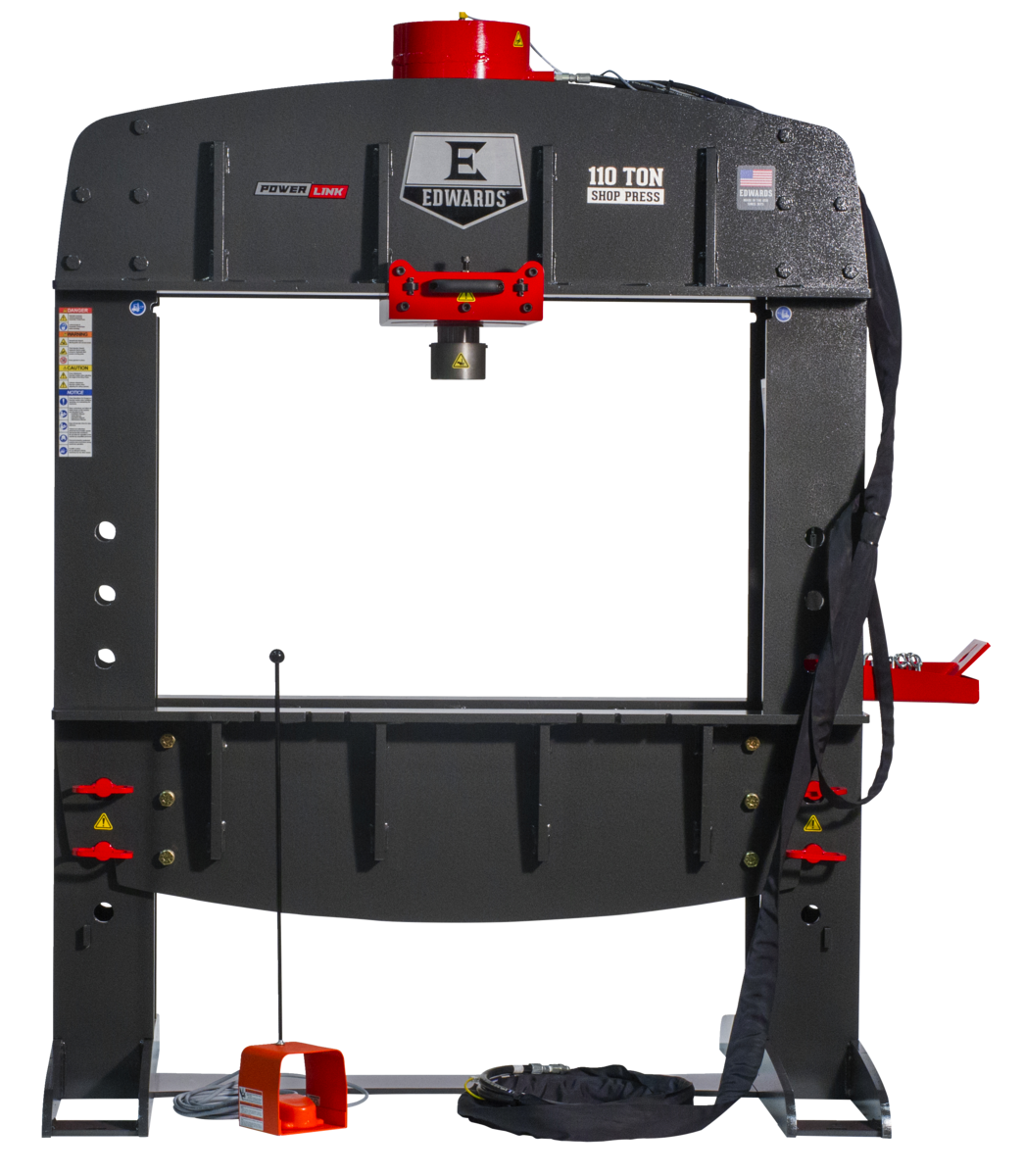

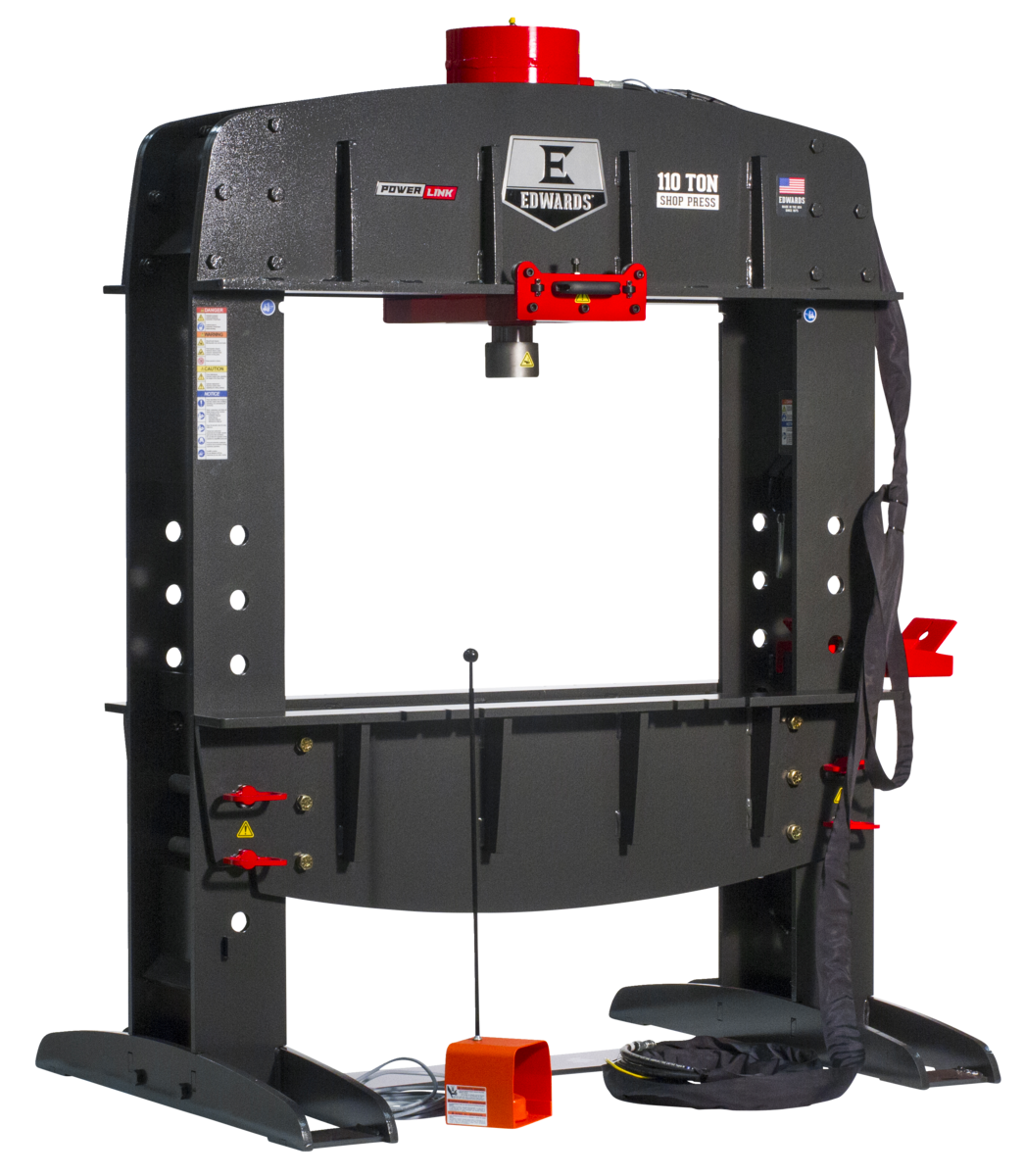

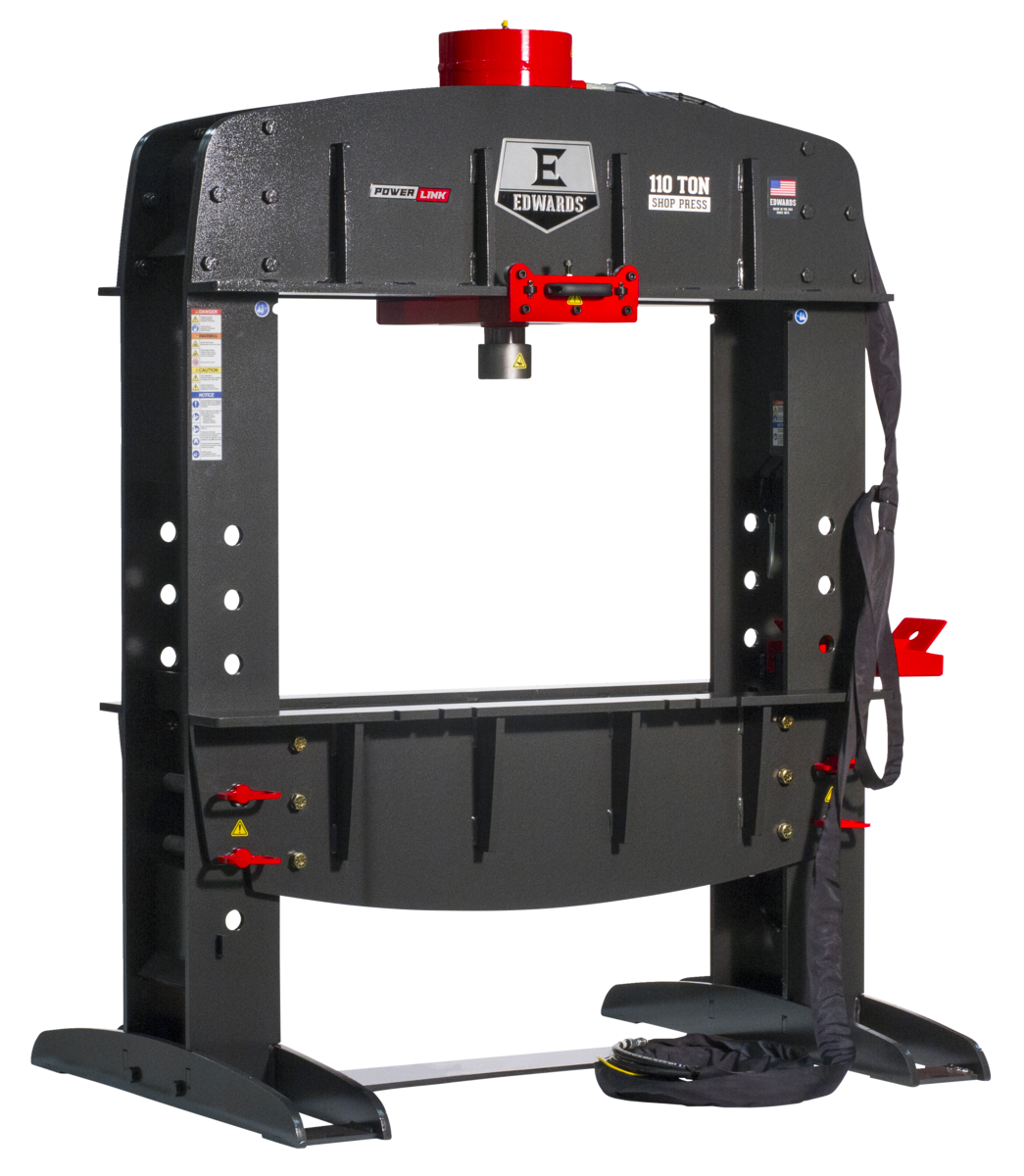

Edwards 110 Ton Shop Press and Portable Power Unit 230V, 1Ph HAT9010
$19,723.92Current price is: $19,723.92.
- 20' quick-connect hoses for simple "plug & play" operation
- Accepts a variety of standard and custom tooling
- Electric foot pedal with integrated jog control
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
Edwards 110 Ton Shop Press and Portable Power Unit 230V, 1Ph HAT9010 is a Edwards Manufacturing product in the Hydraulic Presses collection.
Product Details
- 20' quick-connect hoses for simple "plug & play" operation
- Accepts a variety of standard and custom tooling
- Electric foot pedal with integrated jog control
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
- Open-sided design allows longer material to pass through the frame
- Our most powerful Shop Press, the 110 Ton offers the greatest capacity for the widest variety of projects. Able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP. Also available with Programmable Logic Control (PLC).
- Pressure gauge provides accurate measurements allowing for easy repeatable parts production
- Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
- Rolling cylinder provides maximum adaptability
- Specification: Value
- Minimum Ram Speed (In./Sec): 0.186
- Minimum Return Speed (In./Sec): 0.22
- Stroke (In.): 12-1/4
- Steel Frame Thickness (In.): 3/4
- Work Table (In.): 37-7/16 x 48
- Weight (Lbs.): 3120
- Rating (Tons): 110
- Product Dimensions (In.): 48 x 64 x 88
- Net Weight (Lbs.): 2600
- Gross Weight (Lbs): 2600
- Height: 123.0000
- Length: 72.0000
- Weight: 2200.0000
- Width: 112.0000
Specifications
- Manufacturer: Edwards Manufacturing
- SKU: ED9-HAT9010
- UPC: 731325714296
- Shipping Method: LTL Freight
- Weight: 2,600 lb
- Dimensions: 72 × 112 × 123 in
- Country of Origin: United States of America
| Weight | 2600.0 lbs |
|---|---|
| Dimensions | 72.0 × 112.0 × 123.0 in |
| Brand | Edwards Manufacturing |
