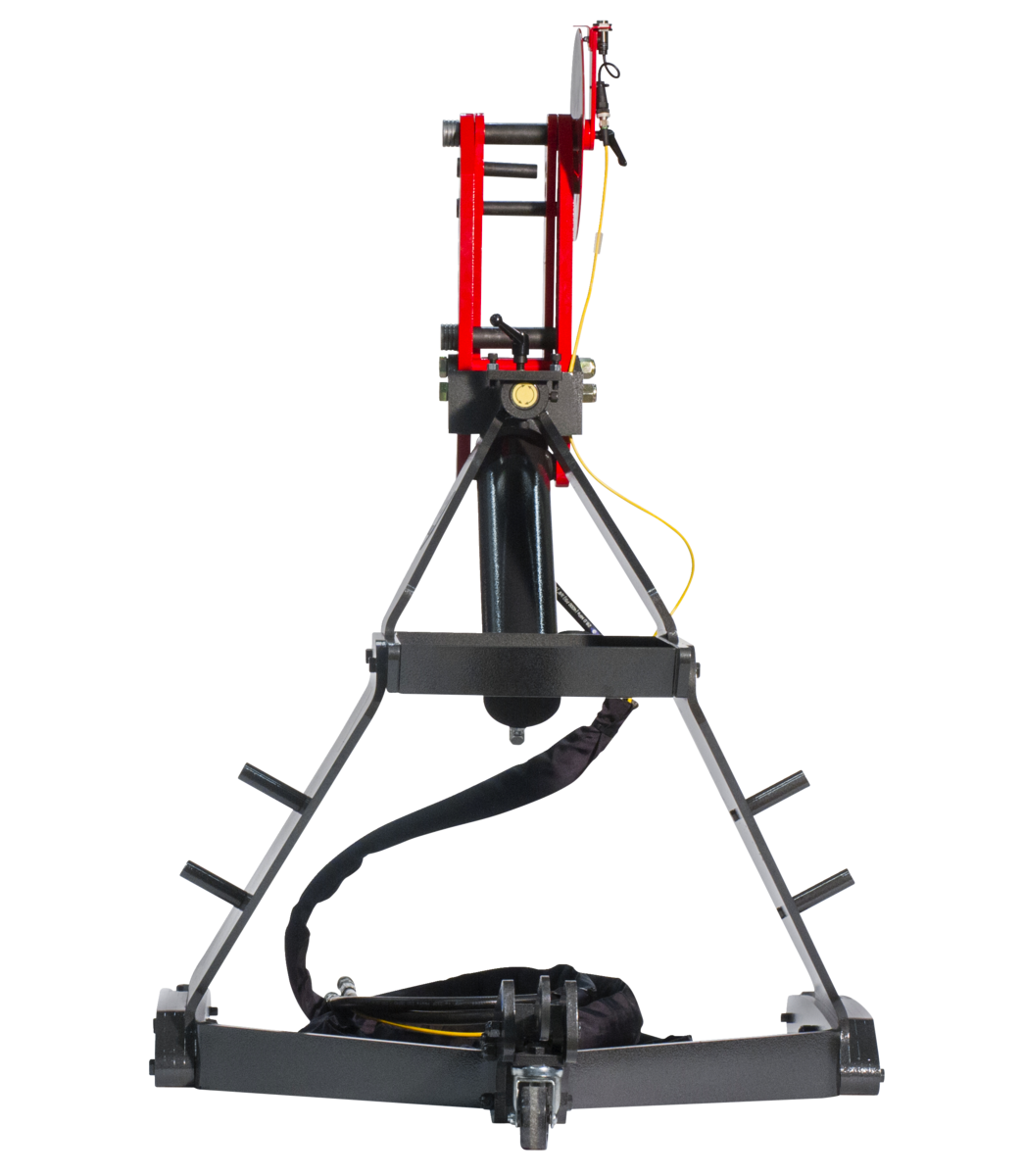

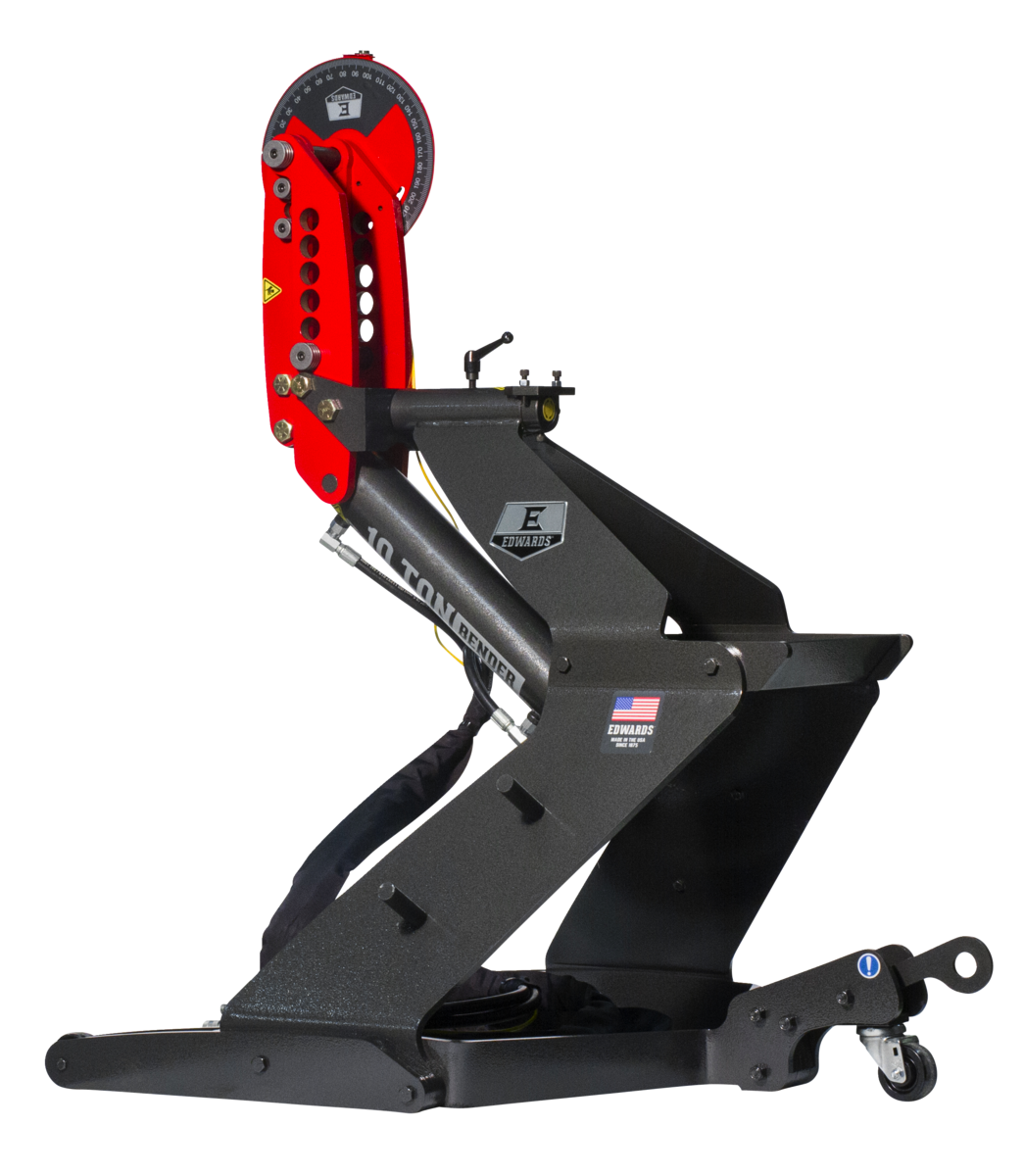

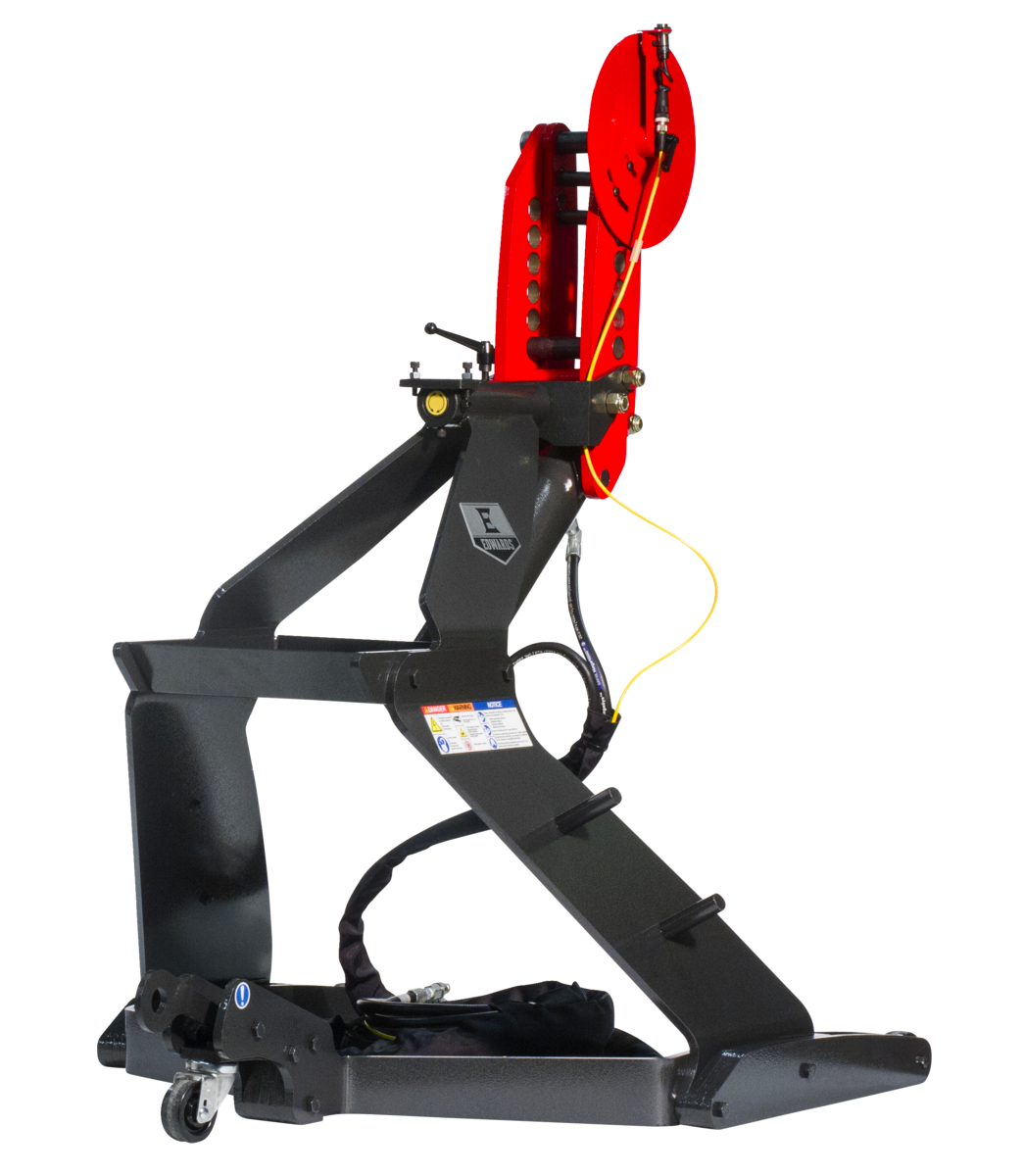

Edwards Edwards 10 Ton Tube and Pipe Bender HAT1000
$3,672.63Current price is: $3,672.63.
- 20' quick-connect hoses for simple "plug & play" operation
- Bend a wide variety of round or square tube and pipe up to 180°s
- Built-in storage on the frame keeps your Bender Dies conveniently close
- Easy-to-use hand/jog controls with integrated E-Stop
Edwards Edwards 10 Ton Tube and Pipe Bender HAT1000 is a Edwards Manufacturing product in the Ironworkers collection.
Product Details
- 20' quick-connect hoses for simple "plug & play" operation
- Bend a wide variety of round or square tube and pipe up to 180°s
- Built-in storage on the frame keeps your Bender Dies conveniently close
- Easy-to-use hand/jog controls with integrated E-Stop
- Heavy-duty rolling stand allows you to move the Radius Roller around as needed
- The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180°, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.
- Horizontal or Vertical operation provides the user flexibility
- Integrated proximity sensor and degree wheel ensure you make the right bend every time
- Over 300 standard dies available to handle your bending needs
- Specification: Value
- Tube Capacity (In.): 2-1/2 (OD) .095
- Bend Capacity: 180
- Pipe Capacity (In.): 2 (ID) Sch 40
- Stroke (In.): 14
- Round Pipe Sch. 40 Capacity (In.): 2
- Cylinder (In): 1-3/4" Ram
- Round Tube Capacity (In.): 2-1/2
- Square Tube Capacity (In.): 2 (OD) .25
- Weight (Lbs.): 600
- Rating (Tons): 10
- Hydraulics (GPM): 3-1/2
- Valve Pressure (PSI): 2750
- Product Dimensions (In.): 40-1/2 x 36-1/2 x 42
- Max. Bend (Deg.): 180
- Overall Dimensions (L x W x H) (In.): 42 x 45 x 63
- Net Weight (Lbs.): 600
- Gross Weight (Lbs): 600
- Height: 63.0000
- Length: 42.0000
- Weight: 600.0000
- Width: 45.0000
Specifications
- Manufacturer: Edwards Manufacturing
- SKU: ED9-HAT1000
- UPC: 731325555554
- Shipping Method: LTL Freight
- Weight: 600 lb
- Dimensions: 42 × 45 × 63 in
- Country of Origin: United States of America
| Weight | 600.0 lbs |
|---|---|
| Dimensions | 42.0 × 45.0 × 63.0 in |
| Brand | Edwards Manufacturing |
