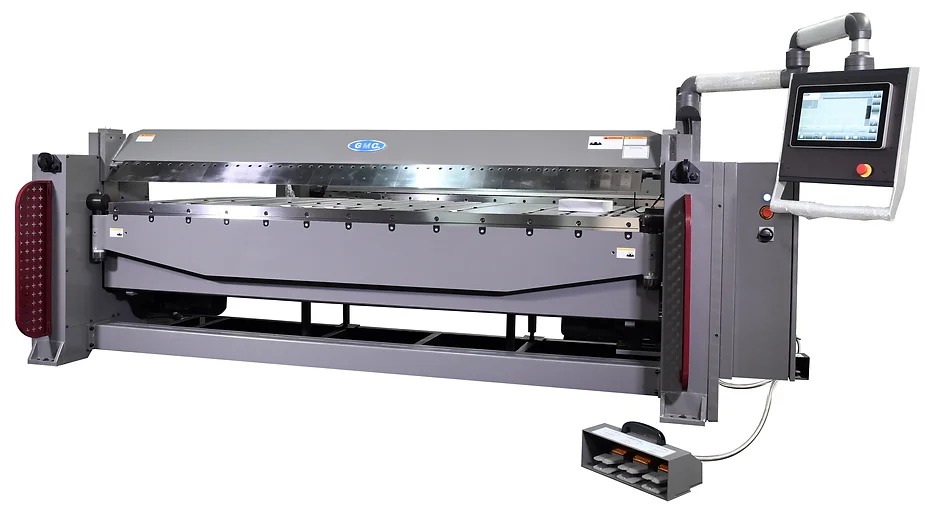

GMC Machinery 10’ x 14 Gauge CNC Folder and Box & Pan Brake EBB-1014CNC
$48,002.50Current price is: $48,002.50.
- Bending length capacity: 10’1”
- Bend Angle Degree, programmable: 0- 135 degree
- Max depth of box or pan: 4”
- Large Beam Opening/clamping opening: 4-7/8”
GMC Machinery 10’ x 14 Gauge CNC Folder and Box & Pan Brake EBB-1014CNC is a GMC Machinery product in the Sheet Metal Brakes collection.
Product Details
- Bending length capacity: 10’1”
- Bend Angle Degree, programmable: 0- 135 degree
- Max depth of box or pan: 4”
- Large Beam Opening/clamping opening: 4-7/8”
- Features
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA S840 CNC control, made in Italy
- 16” large Digital glass touch screen
- Max. 99 bends per program
- Upto 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct

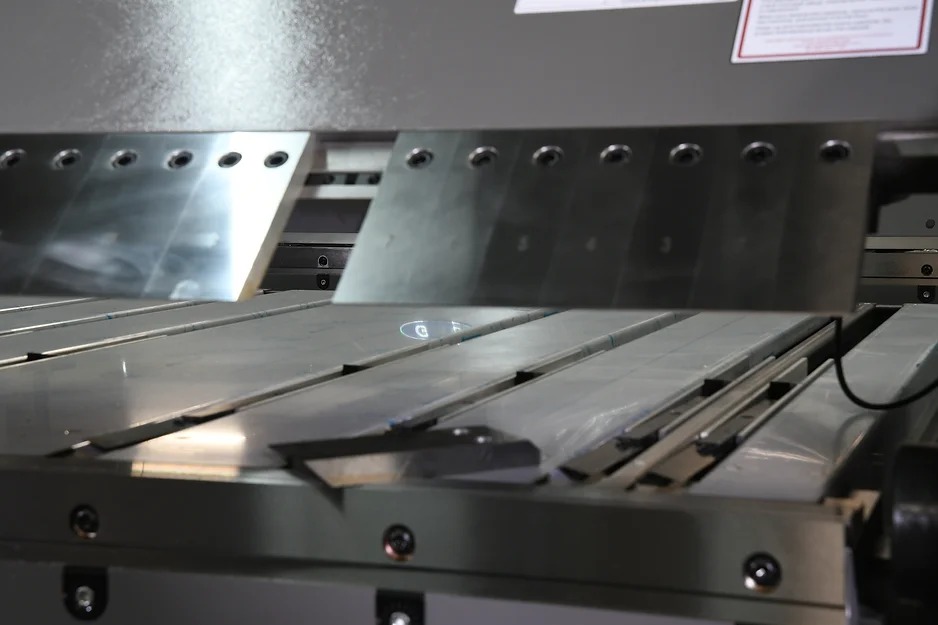

- 48” CNC back gauge with table and fingers
- One piece 10' long straight finger
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
- One year industrial warranty for parts
- Specifications
- Capacity Mild Steel: 14Ga Stainless Steel: 18Ga Close hemming with one piece finger: 26Ga Open hemming: 24Ga
- Mild Steel: 14Ga
- Stainless Steel: 18Ga
- Close hemming with one piece finger: 26Ga
- Open hemming: 24Ga
- Min. Reverse Bend: 1/2”
- Max. Table Back Gauge Distance: 48-3/8”
- Min. Table Back Gauge Distance: 1/2”
- Back Gauge Repeatability: 0.0039”
- Back Gauge Table height: 35-3/4”
- Motor for bending leaf: 4HP, 220V,3phase
- Servo motor for back gauge: 2HP ,220V, 3phase
- Clamping motor: 1-1/2HP , 220V, 3phase
- Amperage Draw: 35A
- Machine weight: 9,850 lbs
- Shipping weight: 10,150 lbs
- Machine dimensions: 168”x79”x67”
- Shipping dimensions: 174”x80”x71”
- Options
- One day on-site training
- Digital phase convertor PTE010 for 220v 1PH to 220v 3PH
Specifications
- Manufacturer: GMC Machinery
- SKU: EBB-1014CNC
- Shipping Method: LTL Freight
- Weight: 10,150 lb
- Dimensions: 174 × 80 × 71 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 10150.0 lbs |
|---|---|
| Dimensions | 174.0 × 80.0 × 71.0 in |
| Brand | GMC Machinery |
