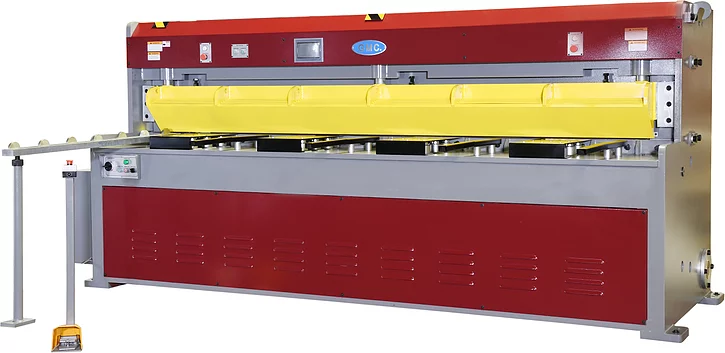

GMC Machinery 12’ x 14 Gauge Heavy Duty Hydraulic Shear with Manual Back Gauge HS-1214M
$32,402.50Current price is: $32,402.50.
- 24" Manual Back Gauge
- Cutting Capacity Mild Steel: 12’ x 14 Ga
- Cutting Capacity Stainless Steel: 12’ x 18 Ga
- Main Motor: 10 HP
GMC Machinery 12’ x 14 Gauge Heavy Duty Hydraulic Shear with Manual Back Gauge HS-1214M is a GMC Machinery product in the Shears collection.
Product Details
- 24" Manual Back Gauge
- Cutting Capacity Mild Steel: 12’ x 14 Ga
- Cutting Capacity Stainless Steel: 12’ x 18 Ga
- Main Motor: 10 HP
- Standard Features
- ISO 9001 certified
- Taiwan machines
- Quick Change Blade Gap Adjustment
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
- Included Equipment
- 24” manual back gauge (one side wheel drive)
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
- Specifications
- Cutting capacity: Mild steel: 12’ x 14 Ga. Stainless steel: 12’ x 18 Ga.
- Mild steel: 12’ x 14 Ga.
- Stainless steel: 12’ x 18 Ga.
- Blade length: 12'
- Strokes per minute: 10-12
- Throat depth: 18"
- Worktable height: 34 1/2"
- Front support arm: 24"
- Back gauge: 24" manual back gauge
- Blade rake angle: 2 degree
- Oil tank cap.: 45 Gal.
- Machine weight: 12,350 LBS
- Machine dimensions: 202" x 95" x 65"
- Options
- Safety fence for enclosure of the back side of the machine
Specifications
- Manufacturer: GMC Machinery
- SKU: HS-1214M
- Shipping Method: LTL Freight
- Weight: 12,350 lb
- Dimensions: 202 × 95 × 65 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 12350.0 lbs |
|---|---|
| Dimensions | 202.0 × 95.0 × 65.0 in |
| Brand | GMC Machinery |
