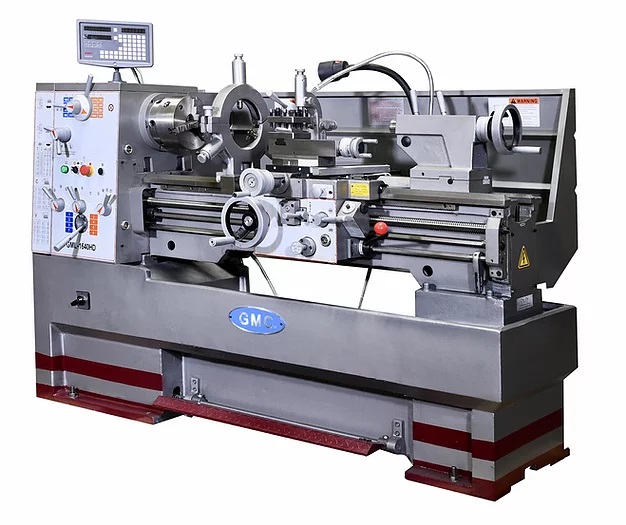

GMC Machinery 14” x 40” Heavy Duty Precision Gap Bed Lathe GML-1440HD
$9,002.50Current price is: $9,002.50.
- Max. swing over bed: 14 7/8"
- Max. length of workpiece: 40"
- Max. swing over cross slide: 10 1/16"
- Main motor: 6 HP, 220V, 3 Phase
GMC Machinery 14” x 40” Heavy Duty Precision Gap Bed Lathe GML-1440HD is a GMC Machinery product in the Lathes collection.
Product Details
- Max. swing over bed: 14 7/8"
- Max. length of workpiece: 40"
- Max. swing over cross slide: 10 1/16"
- Main motor: 6 HP, 220V, 3 Phase
- Standard Features
- ISO 9001 certified
- Large spindle bore 2-1/16”
- Heavy Duty spindle D1-6
- One-piece solid cast iron machine base
- Heavy Duty guideway width 10-1/4”
- Heavy Duty main motor 6 HP
- 16 spindle speeds from 45-1,800 rpm, speeds: 45/ 75/ 90/ 130/ 160/ 195/ 210/ 260/ 350/ 390/ 600/ 690 / 790 / 910/ 1,200/ 1,800 rpm
- 45 kinds of inch threads, and 39 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year warranty for parts
- Included Equipment:
- Free Taper turning attachment installed
- 8” 3-jaw chuck with one set reversible jaws
- 10” 4-jaw chuck
- 12” Face plate
- 5 1/2” large steady rest with roller jaws
- Oil pump on Apron for all guideways and leadscrews
- 2” follow rest
- Removeable gap
- 4-way tools post
- Foot brake
- Coolant system
- Halogen Work light
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
- Specifications
- Max. Swing in gap: 23 1/4"
- Width of Bed: 10 1/4"
- Effective length in gap to spindle: 8 1/2"
- Effective length in gap to chuck jaws: 3 1/2"
- Spindle bore: 2 1/16" D1-6
- Taper of spindle center: M.T. #6 (MT6/MT4 sleeve)
- Spindle speeds: 45-1,800 rpm / 16 steps
- Longitudinal feeds: 0.0018-0.07 IPR, 42 kinds
- Cross feeds: 0.0009-0.03 IPR, 42 kinds
- Inch threads: 70-2 TPI, 45 kinds
- Metric threads: 0.2-14 mm , 39 kinds
- Diametral Pitch threads: 8-40 DP , 21 kinds
- Module threads: 0.3-3.6 mm, 18 kinds
- Max. travel of top slide: 4 1/4"
- Max. travel of cross slide: 8 1/2"
- Spindle length w/o chuck: 20 1/2
- Diameter of tailstock quill: 2 1/16"
- Max. travel of tailstock quill: 5”
- Headstock size: 16" x 17"
- Taper of tailstock quill center: MT4
- Coolant pump:1/8 HP, 220V, 1phase
- Net weight: 4,350 lbs.
- Overall dimensions, LxWxH: 79" x 38" x 53"
- *This model does not work with a phase converter*
Specifications
- Manufacturer: GMC Machinery
- SKU: GML-1440HD
- Shipping Method: LTL Freight
- Weight: 4,350 lb
- Dimensions: 79 × 38 × 53 in
- Country of Origin: China
- Warranty: 1 Year (Parts)
| Weight | 4350.0 lbs |
|---|---|
| Dimensions | 79.0 × 38.0 × 53.0 in |
| Brand | GMC Machinery |
