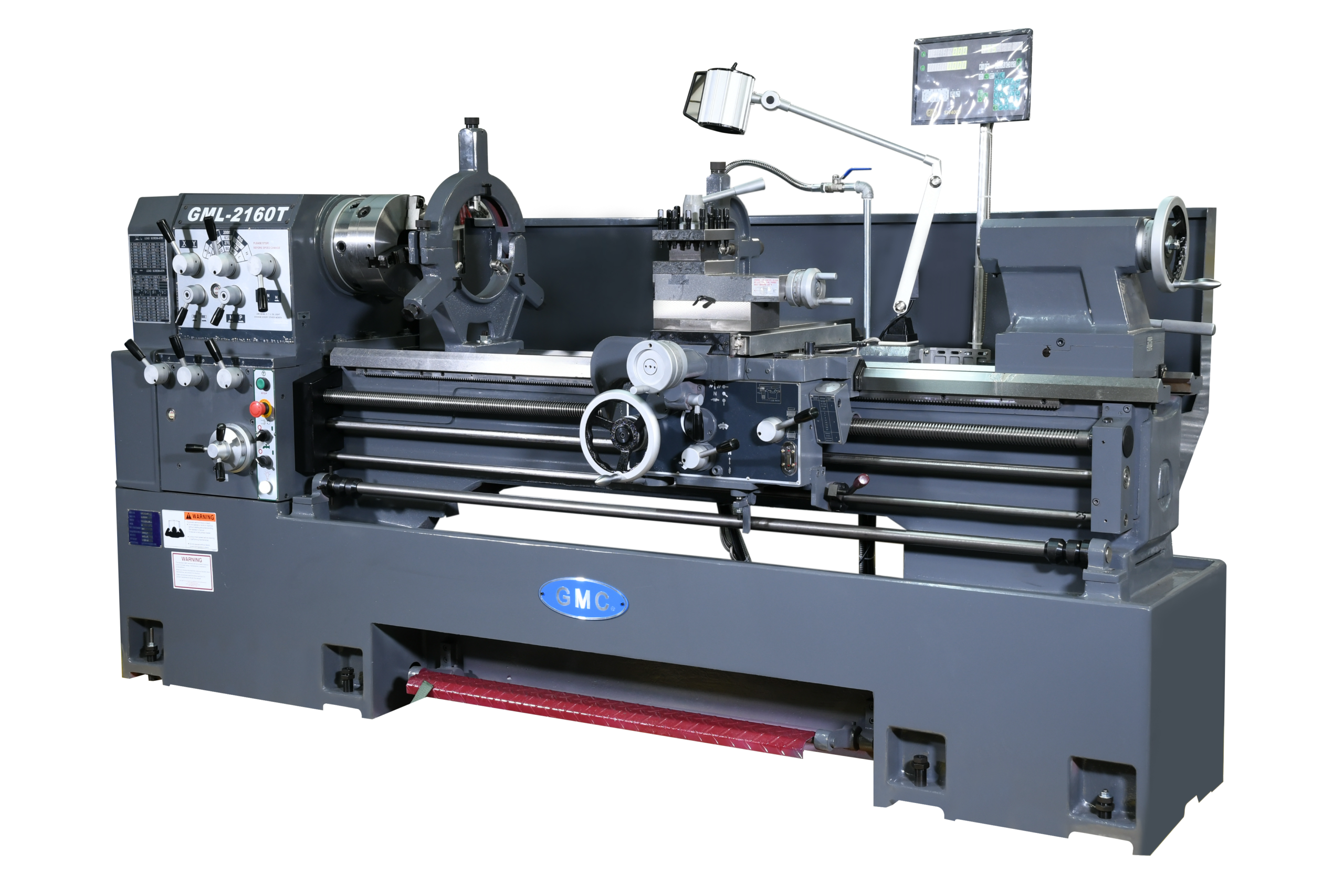

GMC Machinery 220V Three Phase 21” x 60” 12-Speed Heavy-Duty Precision Gap Bed Lathe with DRO GML-2160T
$20,702.50Current price is: $20,702.50.
- Large spindle bore 3-1/8”
- Max swing over bed: 20½”
- Max swing in gap: 29-1/8”
- Spindle speeds: 40-2,000 rpm (12 steps)
GMC Machinery 220V Three Phase 21” x 60” 12-Speed Heavy-Duty Precision Gap Bed Lathe with DRO GML-2160T is a GMC Machinery product in the Lathes collection.
Product Details
- Large spindle bore 3-1/8”
- Max swing over bed: 20½”
- Max swing in gap: 29-1/8”
- Spindle speeds: 40-2,000 rpm (12 steps)
- Features
- Made in Taiwan by top manufacturer with very high level of quality
- One piece solid casting base, Meehanite high performance cast iron
- Machine bed is made of Meehanite casting – high performance cast iron
- ISO 9001 certified
- Heavy duty spindle D1-8
- Heavy duty guideway width 12”

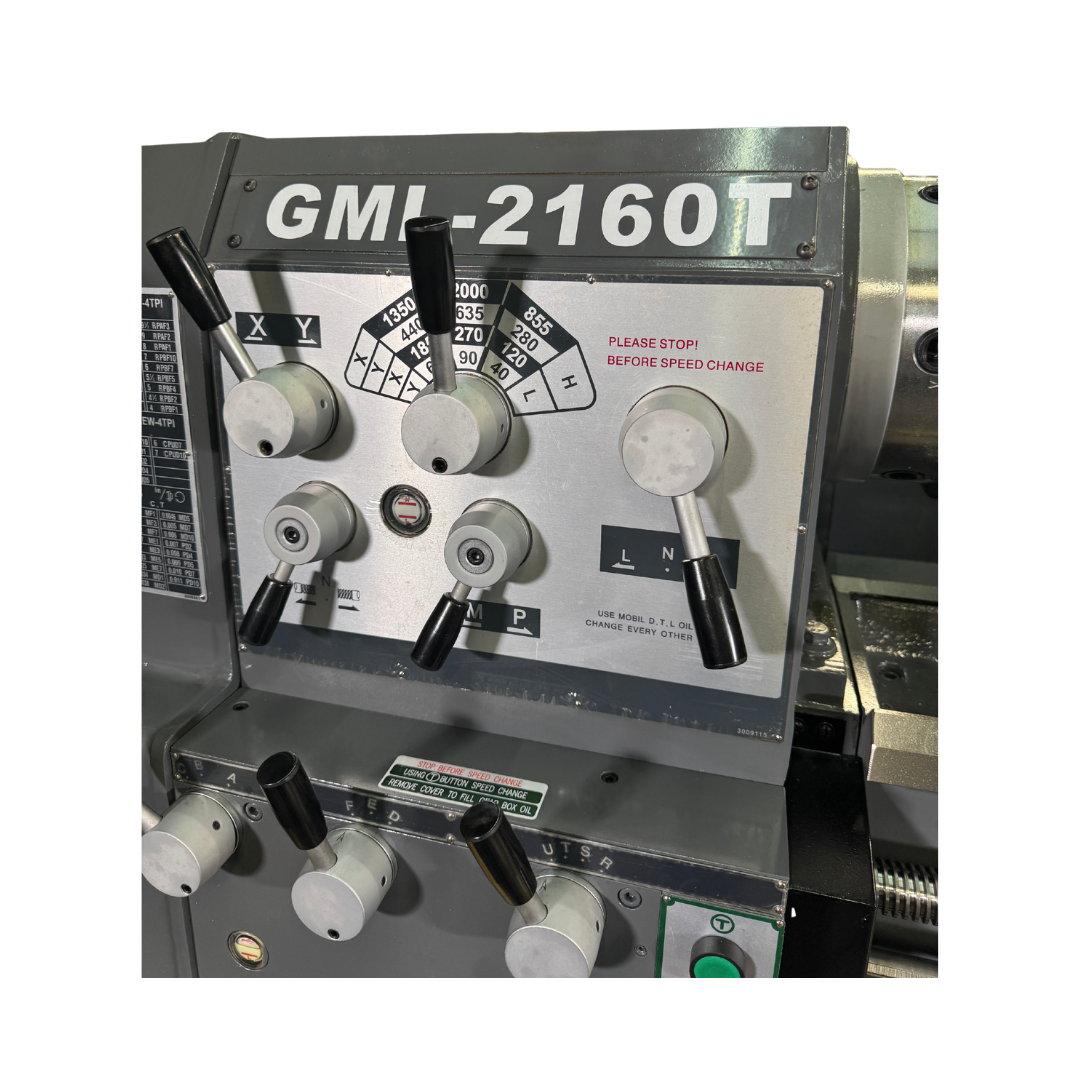

- Spindle speeds from 40-2,000 rpm, 12 speeds
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened, and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Standard Equipment
- Free CARMAR DRO installed
- Automatic kick-out longitudinal carriage stop system
- 10” 3-jaw chuck with reversible jaws, direct mount
- 16” face plate
- 9” steady rest with roller jaws
- 4” follow rest with roller jaws
- 4-way tools post
- Foot brake
- LED work light
- Coolant system
- Full length rear splash guard
- Dead centers
- Thread chasing dial
- Reducing sleeve MT6/MT5 for spindle
- Tool box and leveling pads
- Specifications
- Max length of workpiece: 60”
- Max swing over cross slide: 13”
- Width of bed: 12”
- Effective length in gap to spindle: 6”
- Effective length in gap to chuck jaws: 3½”
- Spindle bore: 3-1/8”, D1-8
- Taper of spindle center: MT6
- Longitudinal feeds: 0.002-0.03 IPR, 35 kinds
- Cross feeds: 0.0008-0.011 IPR, 35 kinds

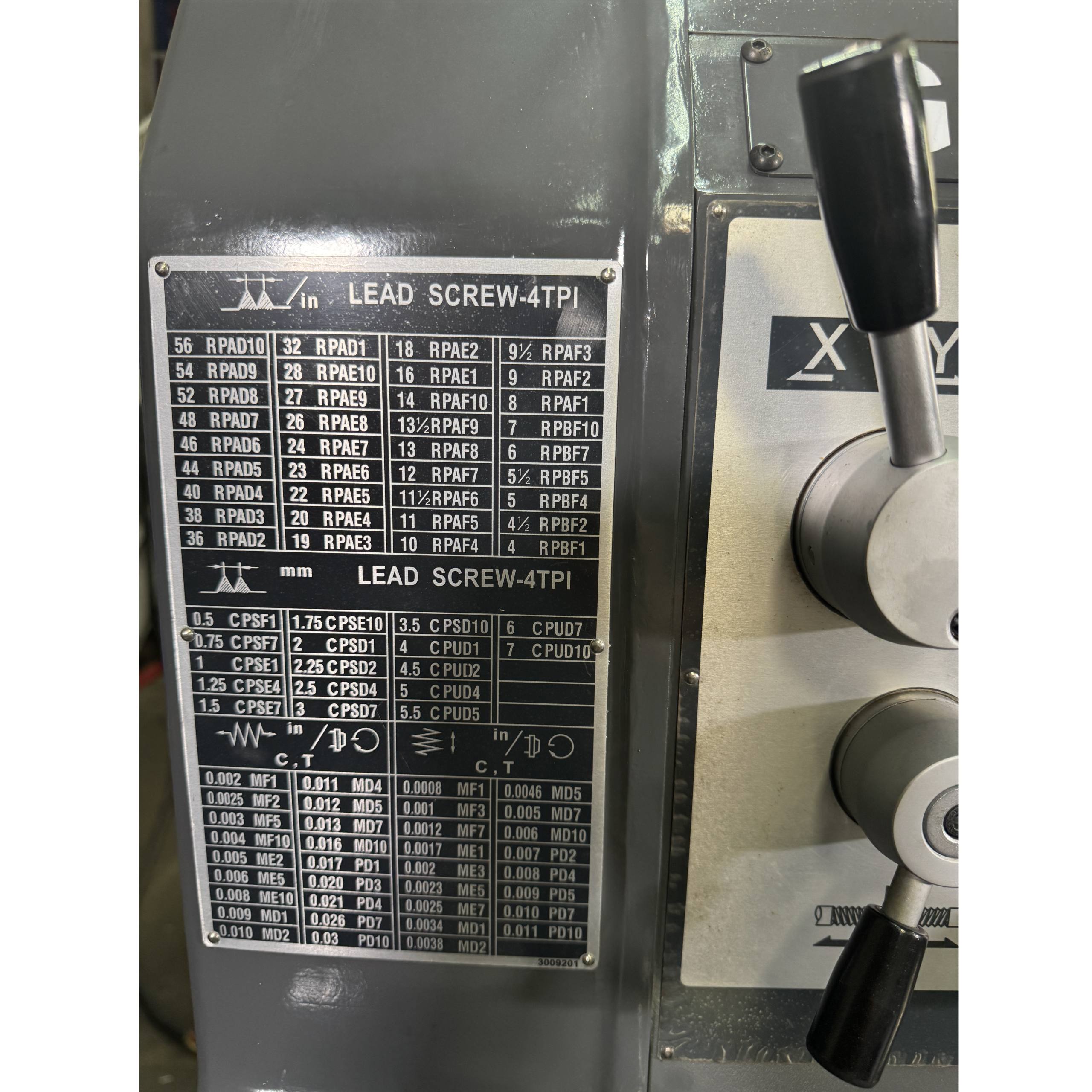

- Inch threads: 4-56 TPI, 36 kinds
- Metric threads: 0.5-7.0mm, 17 kinds
- Max travel of top slide: 5”
- Max travel of cross slide: 11”
- Spindle length w/o chuck: 17”
- Leadscrew length X TPI: 1¼” x 4 TPI
- Diameter of tailstock quill: 2¾”
- Max travel of tailstock quill: 5-7/8”
- Taper of tailstock quill center: MT4
- Machine oil: #30 weight machine oil, 5 gallons
- Coolant pump motor: 220V Three Phase 1/8HP, 2 gal coolant
- Electrical Requirements: 220V Three Phase 7.5HP 35A
- Machine Dims: 105” x 41” x 59”
- Approx Weight: 4,150 lbs
- Optional Add-Ons
- Taper attachment
- 5C hand lever type collet closer
- 33pc 5C collet set, from 1/16”-1-1/16” by 32ndth
- ALORIS type QC tool post set
- Live center for tailstock
- Live center for headstock
- Chuck guard
- **This model does not work with a phase converter**
Specifications
- Manufacturer: GMC Machinery
- SKU: GML-2160T
- Shipping Method: Flatbed
- Weight: 4,300 lb
- Dimensions: 110 × 38 × 66 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 4300.0 lbs |
|---|---|
| Dimensions | 110.0 × 38.0 × 66.0 in |
| Brand | GMC Machinery |
