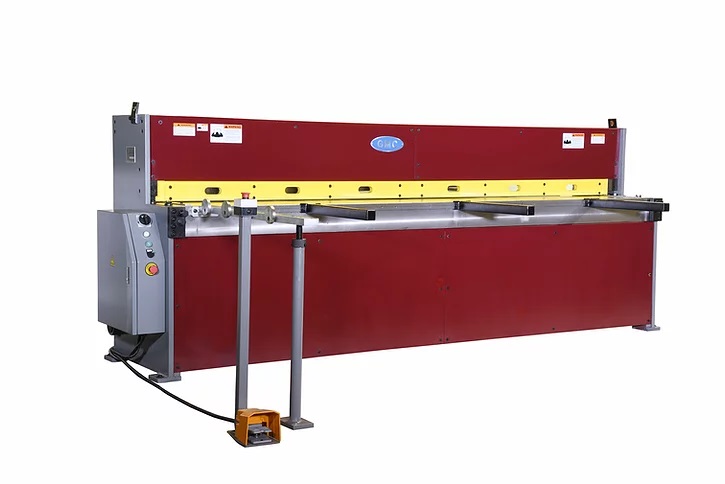

GMC Machinery 8’ x 10 Gauge 220V 3PH Deluxe Hydraulic Shear HS-0810MD
$16,152.50Current price is: $16,152.50.
- Cutting Capacity Mild Steel: 8’ x 10 Ga
- Cutting Capacity Stainless Steel: 8’ x 14 Ga
- Throat Depth: 16”
- Worktable Height: 30-1/2”
GMC Machinery 8’ x 10 Gauge 220V 3PH Deluxe Hydraulic Shear HS-0810MD is a GMC Machinery product in the Shears collection.
Product Details
- Cutting Capacity Mild Steel: 8’ x 10 Ga
- Cutting Capacity Stainless Steel: 8’ x 14 Ga
- Throat Depth: 16”
- Worktable Height: 30-1/2”
- Features
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- Standard Equipment
- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
- Specifications
- Blade Length: 8' 2”
- Strokes Per Minute Adjustable: 14-18
- Front Support Arm: 24”
- Manual Back Gauge: 26”
- Blade Rake Angle: 1.5
- Oil Tank Cap: 20 Gal
- Main Motor: 5.5 HP 220v
- Machine Weight: 5,650 lbs
- Machine Dimensions: 118 x 35 x 52
Specifications
- Manufacturer: GMC Machinery
- SKU: HS-0810MD
- Shipping Method: LTL Freight
- Weight: 5,650 lb
- Dimensions: 118 × 35 × 52 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 5650.0 lbs |
|---|---|
| Dimensions | 118.0 × 35.0 × 52.0 in |
| Brand | GMC Machinery |
