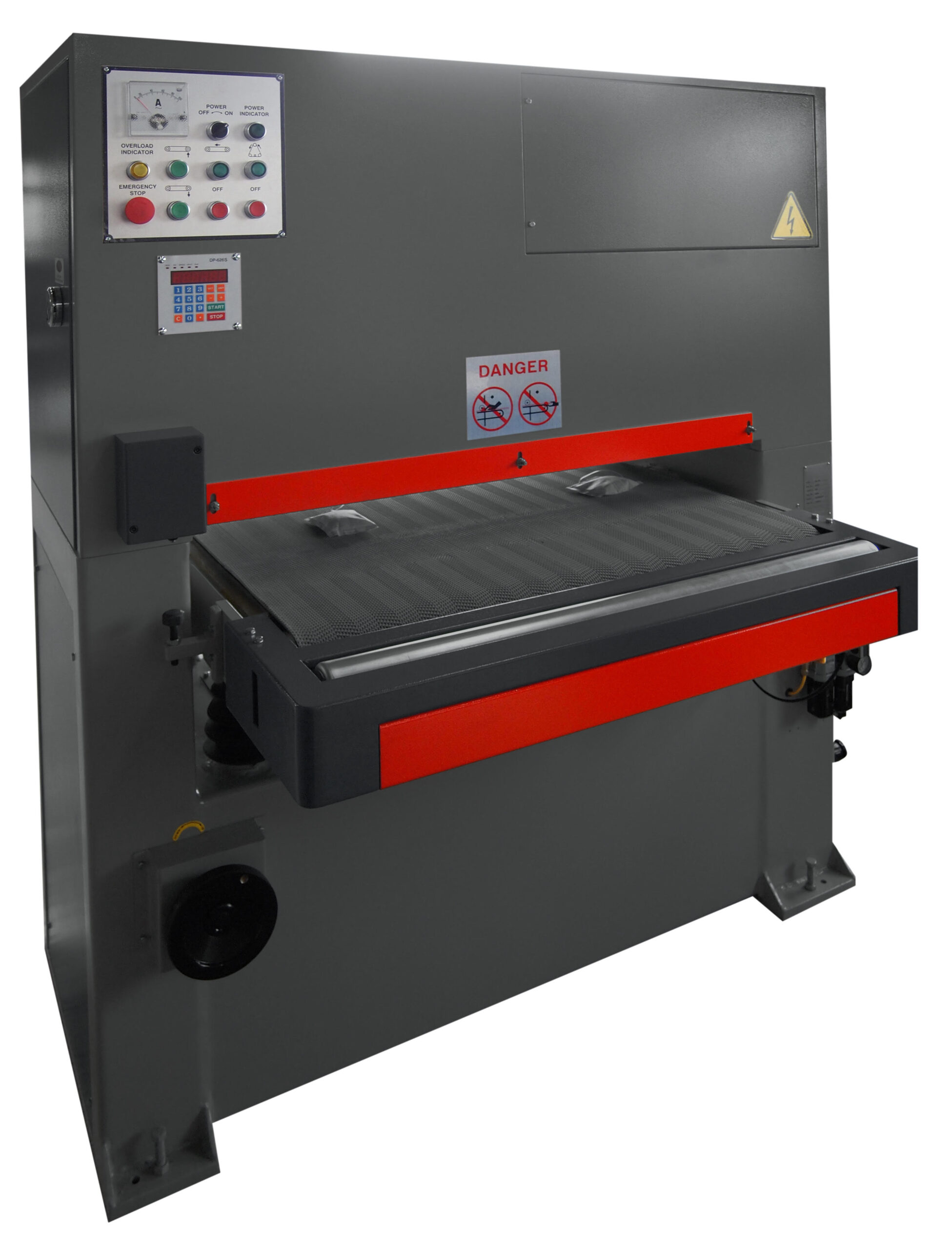

GMC Machinery Finish Pro 37” x 60” 20HP Heavy-Duty Dry Line Graining Deburring & Finishing Machine FP-3760T
$15,567.50Current price is: $15,567.50.
- Contact Roller Size: 8” diameter
- Passline Height: 31” – 37”
- Max Thickness Capacity: 5-1/8”
- Conveyor Drive Speeds: 16 – 66 fpm
GMC Machinery Finish Pro 37” x 60” 20HP Heavy-Duty Dry Line Graining Deburring & Finishing Machine FP-3760T is a GMC Machinery product in the Grinding & Sanding collection.
Product Details
- Contact Roller Size: 8” diameter
- Passline Height: 31” – 37”
- Max Thickness Capacity: 5-1/8”
- Conveyor Drive Speeds: 16 – 66 fpm
- Features
- Computerized programmable material thickness control
- Abrasive belt size: 37” x 60”
- Motorized table lift with computer display
- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Overtravel Switches
- Electronic eye belt tracking. Belt tracking adjusting lever (belt trimmer) to re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double infeed & outfeed pinch roll with protective guards
- Conveyor Belt Tracking System
- Safety system with disc brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the event of loss of air pressure of activation of any emergency stop device
- Load meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- Specifications
- Max Part Width: 37”
- Min Workpiece Length: 12” (smaller parts require a fixture)
- Max Workpiece Weight: 275 lbs
- Infeed Conveyor Length: 20”
- Dust Collector Capacity: 1,800 CFM
- Outlet of Dust Hood: 6”
- Compressed Air Required: 2 CFM @ 90 PSI
- Conveyor Motor: 230V Three Phase 2HP
- Table Lifting Motor: 230V Three Phase ¼HP
- Electrical Requirements: 230V Three Phase 20HP 75A
- Machine Dims: 63” x 63” x 70”
- Approx Weight: 2,650 lbs
- We strongly recommend using a good dust collector for the GMC Finish Pro, otherwise, the warranty will be void
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Wet Dust Collector (WDC-2100)
- Heavy Duty Ducting Package (HDDP-FP40)
- CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc, are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
- OPTIONAL: WET DUST COLLECTROS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by ranking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
Specifications
- Manufacturer: GMC Machinery
- SKU: FP-3760T
- Shipping Method: LTL Freight
- Weight: 2,950 lb
- Dimensions: 65 × 65 × 72 in
- Country of Origin: Taiwan
| Weight | 2950.0 lbs |
|---|---|
| Dimensions | 65.0 × 65.0 × 72.0 in |
| Brand | GMC Machinery |
