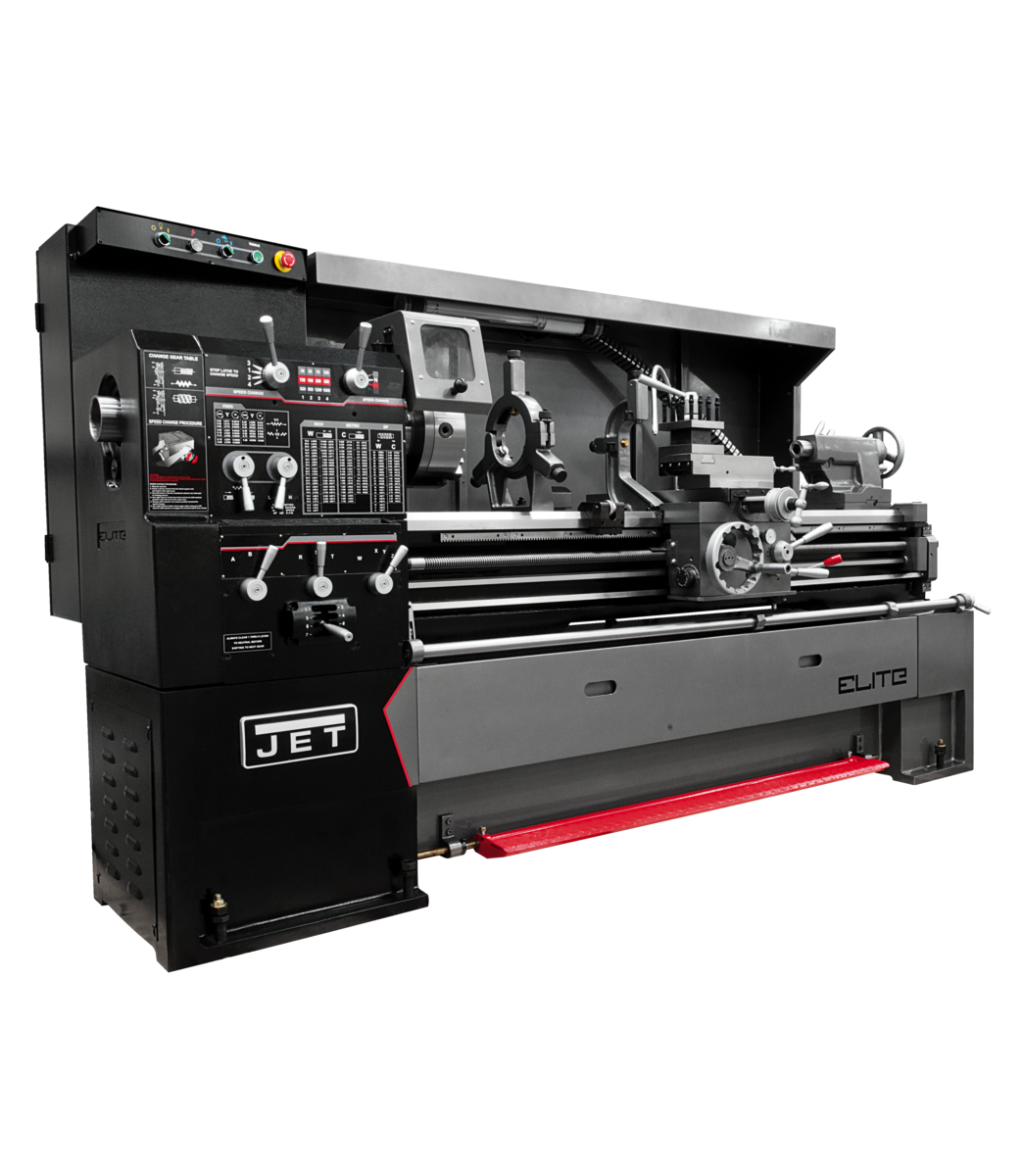

Jet EGH-1740 With Newall DP700 DRO 892511

Jet EGH-1740 With Newall DP700 DRO 892511 is a JET product in the Lathes collection.

Product Details

• 4-Position Carriage Stop
• Anti-Float design eliminates backlash in the cross slide
• Enclosed coolant system contains excess coolant for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine

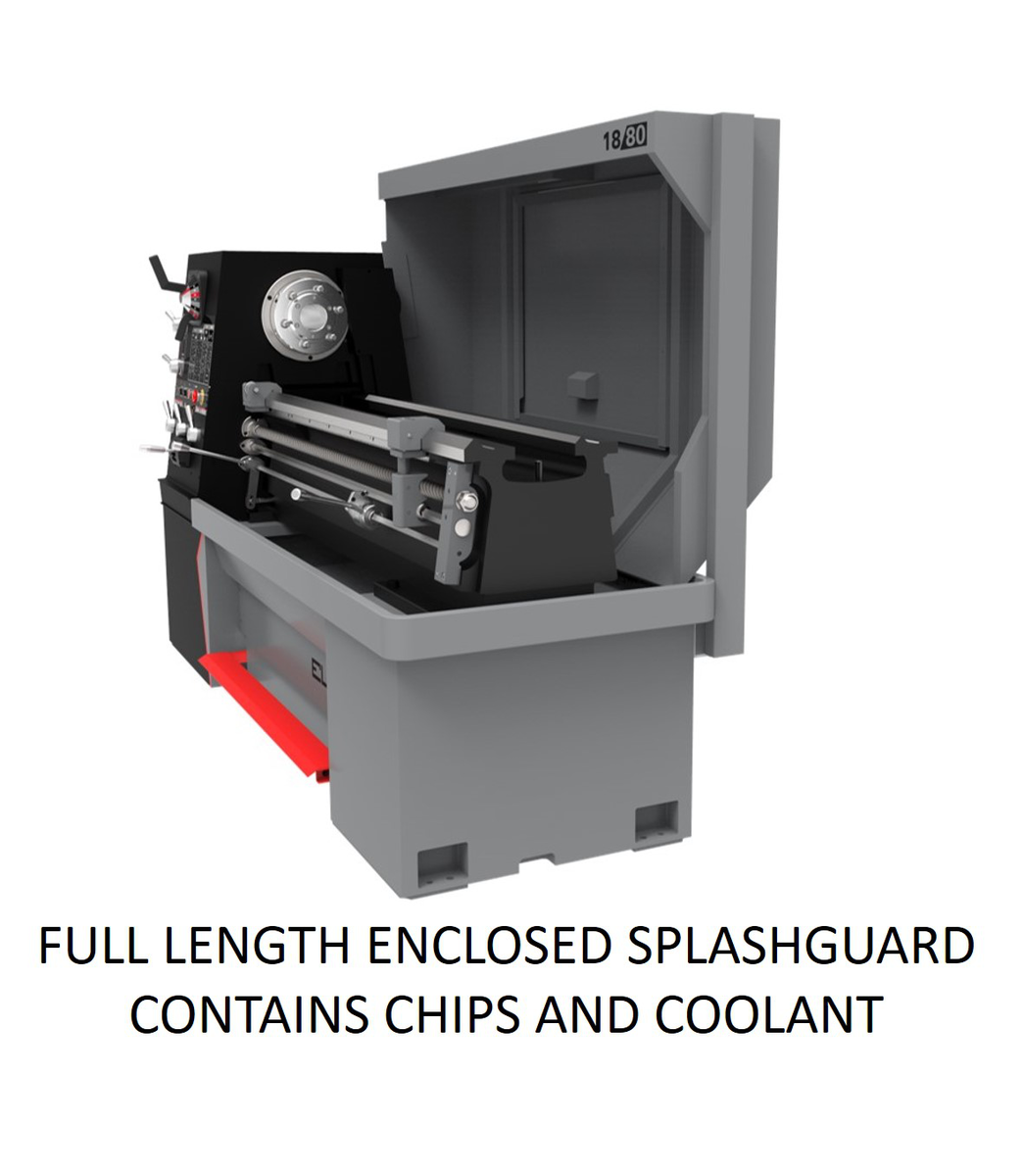

• Full Length Splash Guard
• Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
• Nylon safety gears in the end train prevent overloading, increasing safety
• One-Shot lubrication in the carriage reduces maintenance
• Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
• Steady rests feature ball bearing guides for smooth material movements
• Specification: Value
• Size: 17 x 40
• Style (Type): Engine
• Swing Over Bed (In.): 17
• Number of Spindle Speeds: 12
• Swing Over Cross Slide (In.): 11
• Diametral Pitch Threads Number: 21
• Length of Gap (In.): 7-2/3
• Modular Pitch Threads Number: 18
• Spindle Bore (In.): 3-1/8
• Spindle Mount: D1-6
• Weight (Lbs.): 3747
• Amperage Draw @ 230V 3Ph: 22
• Amperage Draw @ 460V 3Ph: 11
• Range of Spindle Speeds (RPM): 36 – 1,800
• Spindle Taper with Sleeve: MT-5
• Range of Longitudinal Feeds (IPR): 0.0015 – 0.04
• Range of Cross Feeds (IPR): 0.00075 – 0.02
• Number of Inch Threads: 45
• Range of Inch Threads (TPI): 2 – 72
• Number of Metric Threads: 39
• Range of Metric Threads: 0.2 – 14
• Max Tool Size (In.): 1 x 1
• Compound Slide Travel (In.): 6-2/7
• Tailstock Spindle Travel (In.): 5
• Steady Rest Capacity (In.): 3/8 – 6-3/4
• Width of Bed (In.): 12
• Overall Dimensions (L x W x H) (In.): 94 x 44 x 68
• Drive: Geared Head
• Height: 0.0000
• Length: 0.0000
• Width: 0.0000
• Weight: 4409.0000

Specifications

• Manufacturer: JET
• SKU: JT9-892511
• UPC: 731325283099
• Shipping Method: LTL Freight
• Weight: 4,409 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
