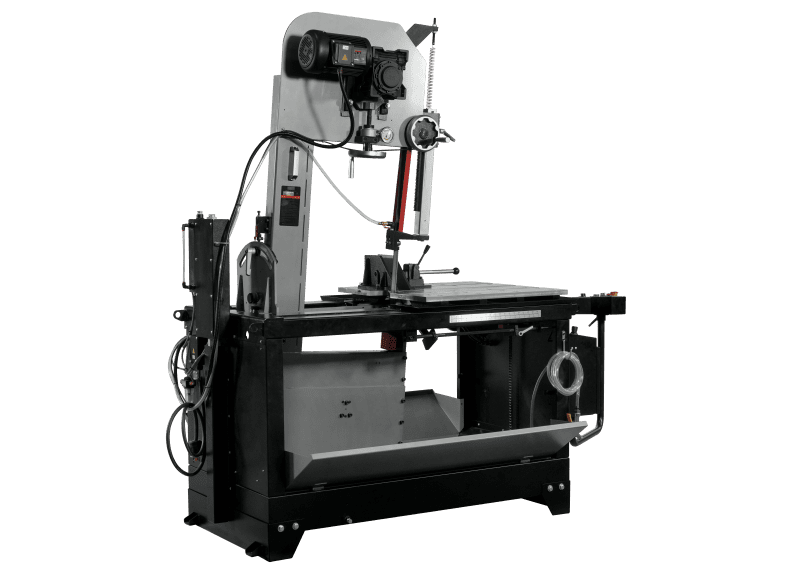

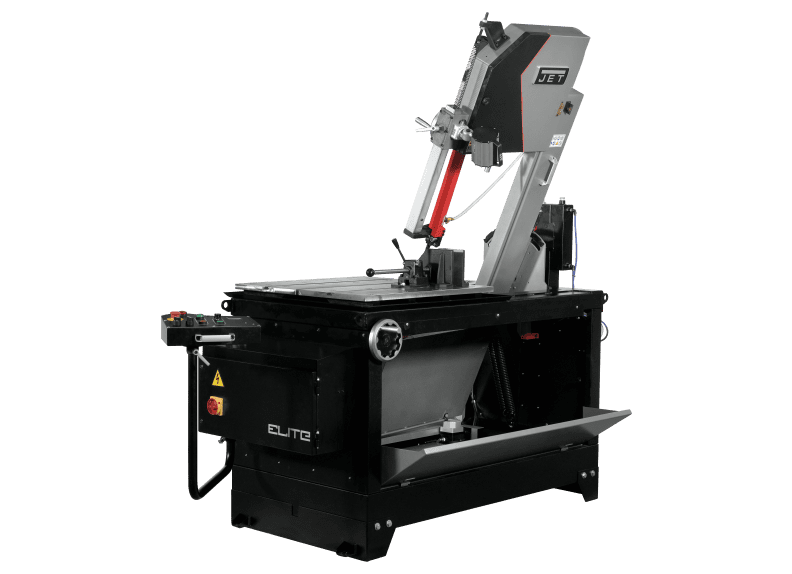

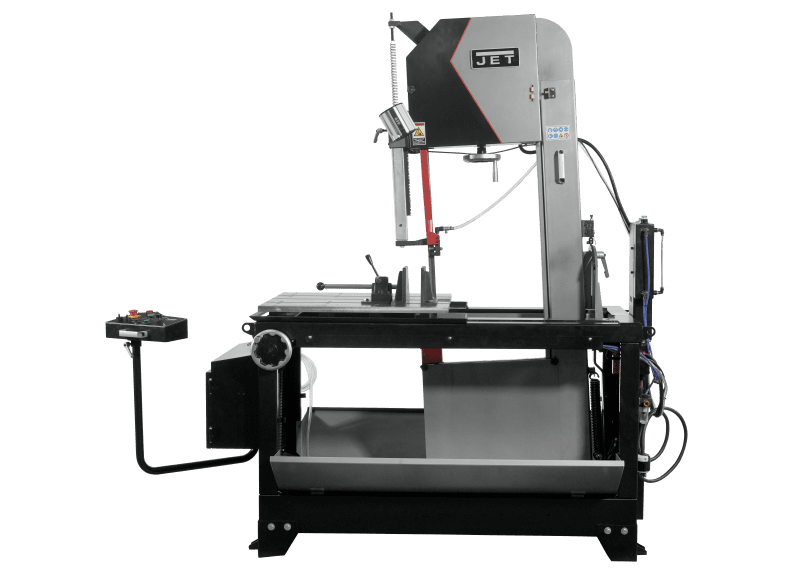

Jet Elite Series EVTBS16VS 460V Three Phase 16” Electrical Variable Speed Vertical Tilt Frame Bandsaw JT9-891210

Jet Elite Series EVTBS16VS 460V Three Phase 16” Electrical Variable Speed Vertical Tilt Frame Bandsaw JT9-891210 is a JET product in the Band Saws collection.

Product Details

• Blade speeds: 76-430 SFPM
• Blade size: 1-1/16” x 0.035” x 168½”
• Work height: 39-3/8”
• Max vise opening: 17½”
• Description
• At the heart of every metalworking operation, there is a saw. Saws that are being challenged to cut a wider variety of materials in different ways than ever before. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer and operate more safely at the same time.
• The Elite EVTBS-16” EVS Vertical Tilt Frame Bandsaw is that answer to your shops needs.
• The 3 degree forward approach angle allows for increased efficiency in cutting structural materials. Inverter drive with speed range of 76-30 SFPM and a Digital Readout to always let you know what speed you are at. The quick action vise saves set up time and can be moved in either the right or left of the blade and fast locking.
• Durability is built into the steel frame construction that reduces vibrations and deflection. Safety is a must with CSA/US Certification, the blade is fully guarded, and a strong internal spring allows the operator to safely move the bow and fix at any angle.
• Elite saws are the most precise, most durable, and safest bandsaws you could ever have in your shop.
• Features
• Electronic variable speed 76-430 SFPM with Digital Readout for FPM
• Blade tension gauge helps to ensure the blade is in the correct cutting position
• 3° forward approach angle for increased efficiency in cutting of structural materials
• Quick action vise saves set up time and can be moved to either the right or left of the blade and fast locking
• Fully adjustable air hydraulic control for bow travel
• Heavy-duty steel construction reduces vibration and deflection
• Automatic stops can be pre-set to stop advancement and return of the blade
• CSA Certified Electrics following strict guidelines and electrical requirements and are certified by the CSA Group
• Integrated pressurized wash off hose for easy machine clean up
• Auto-shut off switch stops the sawing process
• Accessories: Material stop, wash-off hose, blade tension gauge, coolant system, leveling feet, LED work lamp, toolbox
• Specifications
• Blade guide: carbide & roller
• Blade speed (variable): 76-430 RPM
• Blade thickness: 0.035”
• Coolant pump motor: 32W
• Drive: EVS
• Drive type: Inverter driven
• Miter angle range: 45°-90°-45°
• Prop 65: Cancer
• Rectangle at 45°: 13¼” x 16”
• Table size: 29½” x 14-3/16”
• Table T-slot: ¾”
• Throat depth: 16”
• Reservoir: 60 Liter
• Round Capacity at 45° Right: 13¼”
• Rectangle Capacity at 45° Left: 11½” x 16”
• Rectangle Capacity at 45° Right: 13¼” x 13¼”
• Rectangle Capacity at 90°: 20” x 16”
• Round Capacity at 45° Left: 11½”
• Round Capacity at 90°: 16”
• Square Capacity at 45° Left: 11½” x 11½”
• Square Capacity at 45° Right: 13¼” x 13¼”
• Square Capacity at 90°: 16” x 16”
• Electrical Requirements: 460V Three Phase 2HP
• Machine Dims: 94½” x 49-1/8” x 90½”
• Approx Weight: 1,408 lbs

Specifications

• Manufacturer: JET
• SKU: JT9-891210
• UPC: 662755519703
• Shipping Method: LTL Freight
• Weight: 1,510 lb
• Dimensions: 100 × 55 × 95 in
