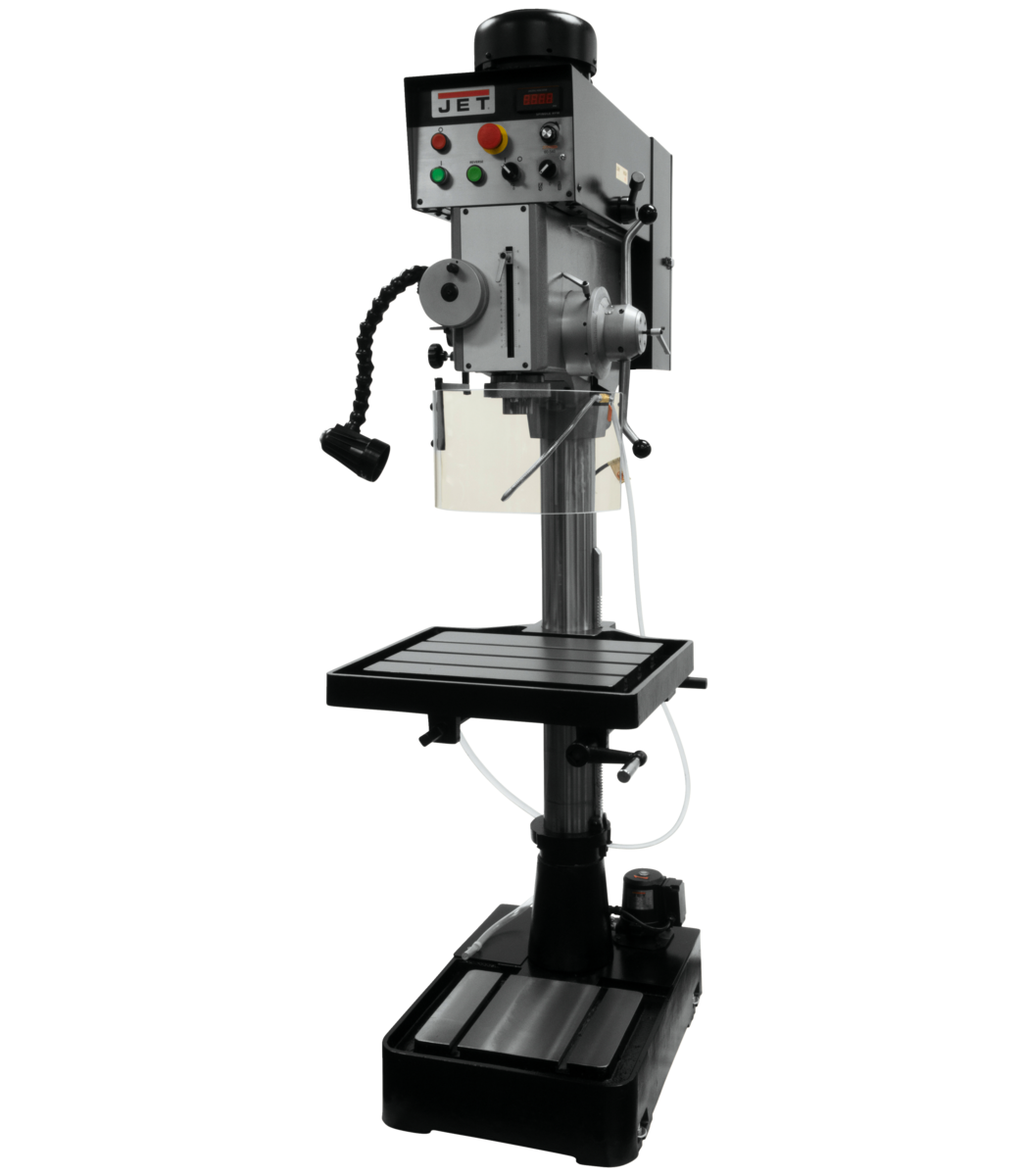

Jet Geared Head Drill Press with Power Downfeed, 2HP, 3Ph, 230V | JDP20EVST-230-PDF 354245

Jet Geared Head Drill Press with Power Downfeed, 2HP, 3Ph, 230V | JDP20EVST-230-PDF 354245 is a JET product in the Drill Presses collection.

Product Details

• CSA Coolant System
• Front Mounted LED Spindle RPM Readout
• Front mounted positive control depth stop
• Heavy-duty steel column for increased precision and rigidity
• High torque at all speeds both forward and reverse
• Accuracy, stability and versatility are the benchmark features of the JET 20" Drill Presses. This high-quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. The spindle head is supported by high quality ball bearings. Designed to permit continuous speed adjustment – even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. JET backs their machines with the industry leading Two Year Warranty and are CSA/CUS Certified.
• Large Hand Grips designed with the users comfort in mind
• Large precision ground T-Slot production table for easy set ups
• Latest AC Inverter Variable Speed Technology
• Specification: Value
• Swing (In.): 20
• Style (Type): Variable Speed
• Drills to Center of Circle (In.): 20
• Spindle Travel (In.): 6
• Drilling Capacity Mild Steel (In.): 2
• Distance Column to Spindle (In.): 10-7/16
• Table Size (L x W) (In.): 22×18-3/4
• Tapping Capacity Mild Steel (In.): 1
• Tapping Capacity Cast Iron (In.): 1
• Weight (Lbs.): 847
• Spindle Taper (In. x TPI): MT-4
• Spindle Travel Auto (In.): 4-1/2
• Range of Spindle Speeds (RPM): 60 – 2,000(60-540/225-2000)
• Table Travel (In.): 20
• T-Slot Centers (In.): 7-7/16
• Work Table Weight Capacity (Lbs.): 154
• Column Diameter (In.): 4-1/2
• Base Dimensions (In.): 27 x 19
• Motor (HP): 2 HP, 230V 3ph
• Inverter Type: B Type 230V 1/3Ph
• Overall Dimensions (L x W x H) (In.): 42.5 x 27.16 x 78.74
• Prewired Voltage (V.): 230
• Net Weight (Lbs.): 827
• Gross Weight (Lbs): 847
• Height: 78.7400
• Length: 42.5000
• Weight: 847.0000
• Width: 27.1600

Specifications

• Manufacturer: JET
• SKU: JT9-354245
• UPC: 731325503937
• Shipping Method: LTL Freight
• Weight: 847 lb
• Dimensions: 42.5 × 27.16 × 78.74 in
• Country of Origin: Taiwan
