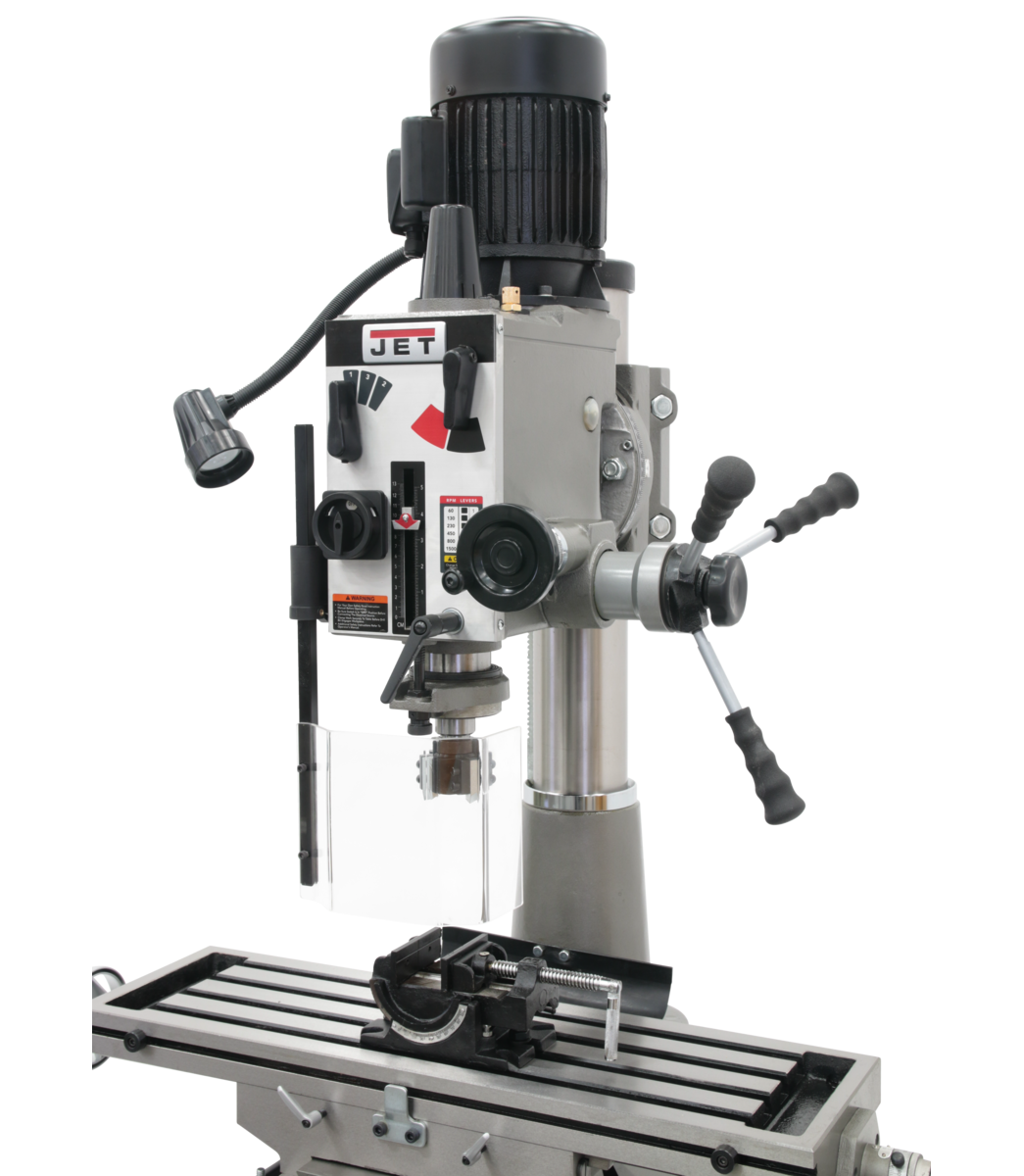

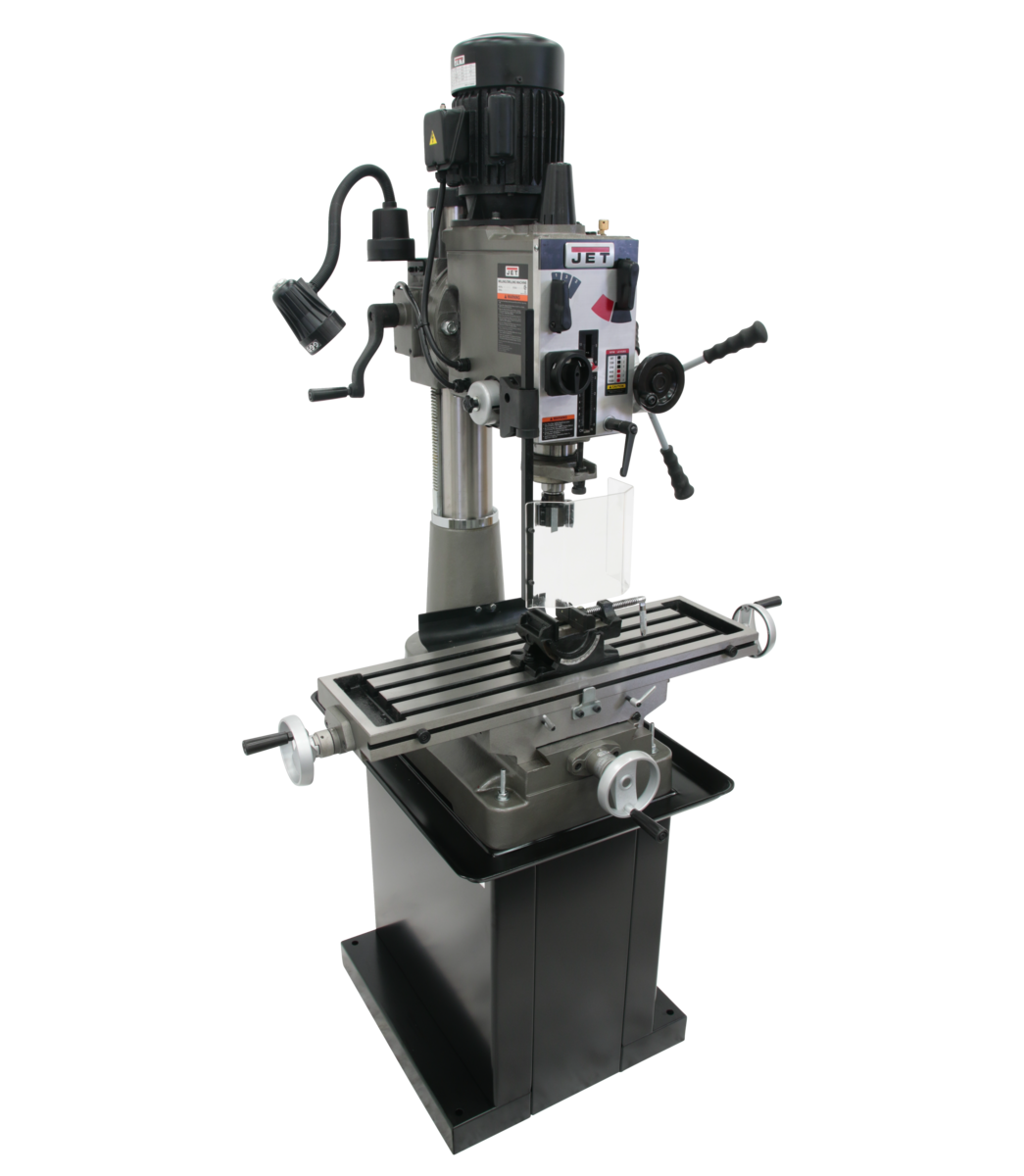

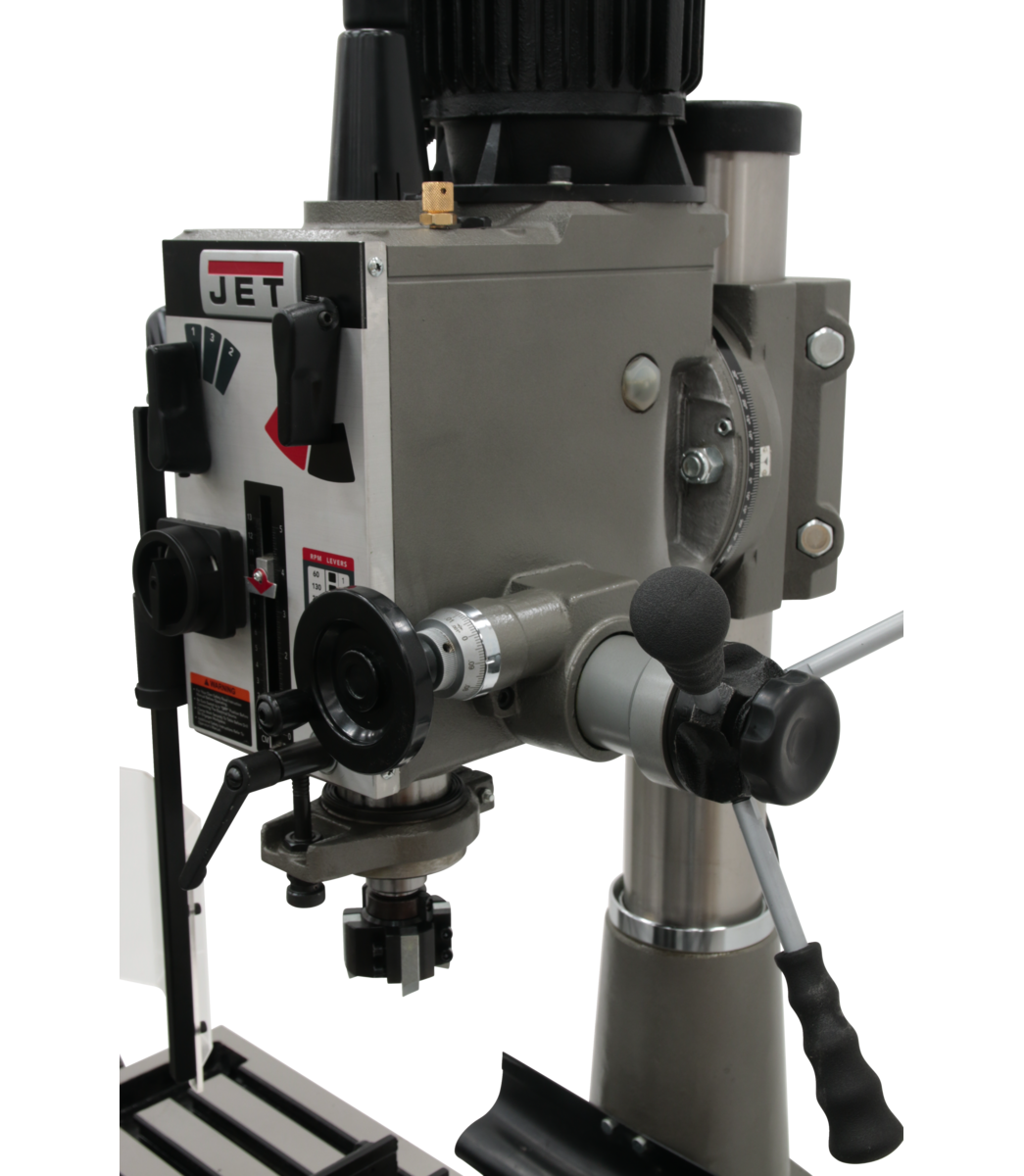

Jet JMD-40GH Geared Head Mill/Drill with Newall DP500 2-Axis DRO 351144
$6,799.00Current price is: $6,799.00.
- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
Jet JMD-40GH Geared Head Mill/Drill with Newall DP500 2-Axis DRO 351144 is a JET product in the Milling Machines collection.
Product Details
- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.
- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Specification: Value
- Swing (In.): 20-1/2
- Spindle Travel (In.): 5
- Number of Spindle Speeds: 6
- Face Mill Capacity (In.): 4
- Weight (Lbs.): 694
- Spindle Taper (In. x TPI): R-8
- Max Distance Spindle to Table (In.): 15-3/4
- Quill Diameter (In.): 3
- Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550rpm
- Table Longitudinal Travel (In.): 20-1/2
- Column Diameter (In.): 4-1/2
- Base Dimensions (In.): 24-1/4 x 15-15/16
- Motor (HP): 1-1/2HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
- Height: 42.5000
- Length: 28.0000
- Weight: 694.0000
- Width: 39.2500
Specifications
- Manufacturer: JET
- SKU: JT9-351144
- UPC: 731325709087
- Shipping Method: LTL Freight
- Weight: 694 lb
- Dimensions: 28 × 39.25 × 42.5 in
- Country of Origin: Taiwan
| Weight | 694.0 lbs |
|---|---|
| Dimensions | 28.0 × 39.25 × 42.5 in |
| Brand | JET |
