Jet JMD-45GH Geared Head Square Column Mill/Drill 351045
$6,500.34Current price is: $6,500.34.
- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
Jet JMD-45GH Geared Head Square Column Mill/Drill 351045 is a JET product in the Milling Machines collection.
Product Details
- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- The heavy-duty JMD-45GH Square Column Geared Head Mill Drill is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.

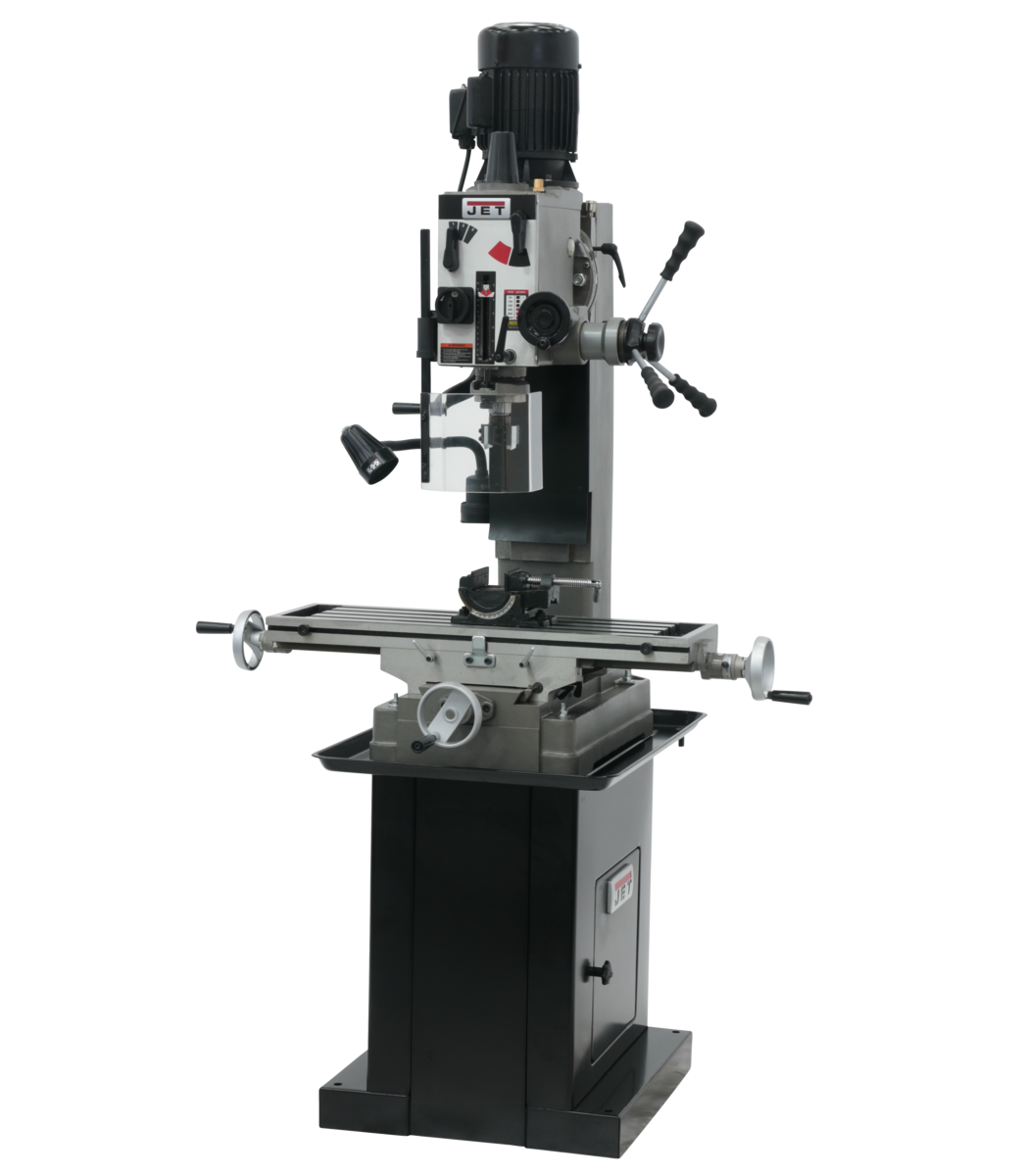

- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways
- Specification: Value
- Swing (In.): 19-11/16
- Spindle Travel (In.): 5
- Number of Spindle Speeds: 6
- Face Mill Capacity (In.): 4
- Table Size (L x W) (In.): 9-1/2 x 32-1/4
- Weight (Lbs.): 794
- Spindle Taper (In. x TPI): R8
- Max Distance Spindle to Table (In.): 18-1/8
- Quill Diameter (In.): 3
- Range of Spindle Speeds (RPM): 65-1550
- Table Longitudinal Travel (In.): 20-1/2
- Base Dimensions (In.): 26-11/16 x 15-15/16
- Motor (HP): 1-1/2HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
- Height: 60.0000
- Length: 46.8500
- Width: 36.4000
- Weight: 794.0000
Specifications
- Manufacturer: JET
- SKU: JT9-351045
- UPC: 731325512878
- Shipping Method: LTL Freight
- Weight: 794 lb
- Dimensions: 46.85 × 36.4 × 60 in
- Country of Origin: Taiwan
| Weight | 794.0 lbs |
|---|---|
| Dimensions | 46.85 × 36.4 × 60.0 in |
| Brand | JET |
