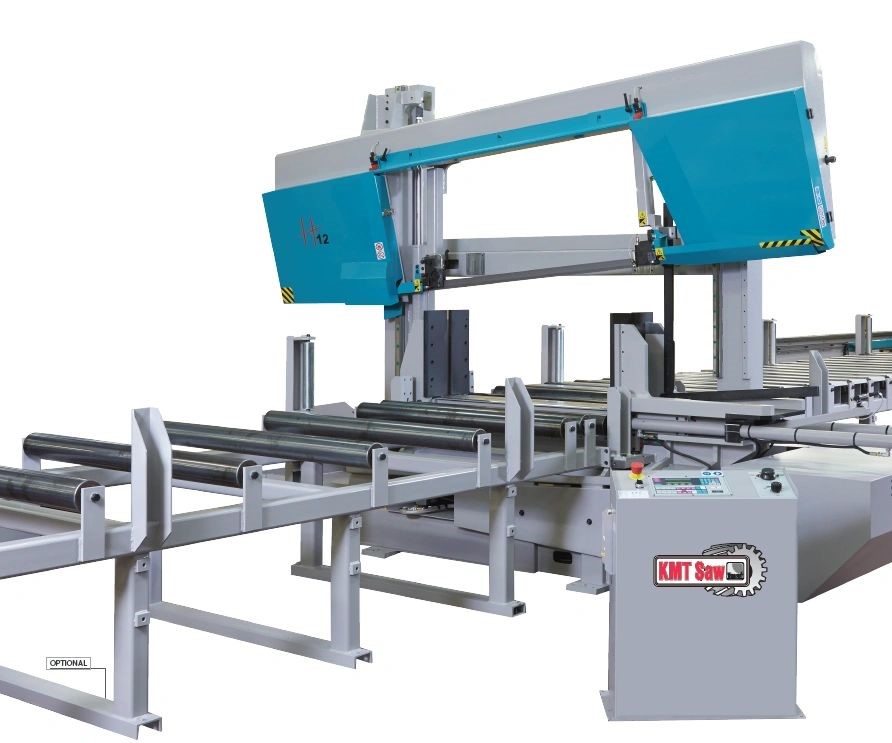

Kalamazoo Machine Tool 10HP 460V Three Phase 23” x 49” Twin Column Semi-Automatic Bandsaw H12SA
$74,750.00Current price is: $74,750.00.
- One Bi-metal sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
Kalamazoo Machine Tool 10HP 460V Three Phase 23” x 49” Twin Column Semi-Automatic Bandsaw H12SA is a Kalamazoo Machine Tool product in the Band Saws collection.
Product Details
- One Bi-metal sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Features
- Semiautomatic
- When a heavy duty bandsaw is needed for structural steel look no further than the H7 SA, H8 SA, or the H12 SA.
- Straight cut
- Double column
- 5 Degree cant
- Carbide guides w/ rollers
- Largest beam capacity
- H12 SA W36
- Perfectly counter balanced
- Clamping on both sides of cut
- Vibration free sawing in a range of interrupted and solid materials
- All moving components on linear bearing guides Hydraulic blade tension on H8 SA and H12 SA
- Rear guide is fixed, the outside guide automatically moves close to the cut
- Standard Equipment
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Specifications

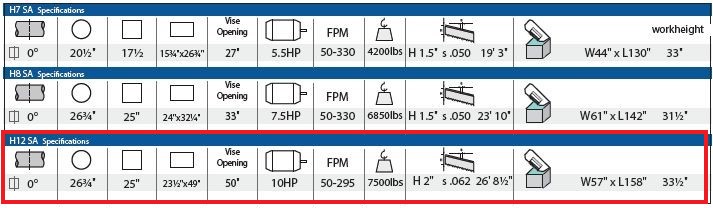

- (See chart in pictures.) Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
- Options
- AC600 – 10' Conveyor
- AC625 – 5' Conveyor with coolant tray
- AC116 – Spray mist coolant
Specifications
- Manufacturer: Kalamazoo Machine Tool
- SKU: H12SA (460V)
- Shipping Method: Flatbed
- Weight: 7,600 lb
- Dimensions: 163 × 62 × 38 in
- Warranty: 1 Year (Parts)
| Weight | 7600.0 lbs |
|---|---|
| Dimensions | 163.0 × 62.0 × 38.0 in |
| Brand | Kalamazoo Machine Tool |
