Kalamazoo Machine Tool 7.5HP 208V Three Phase 24” Double Column Semi-Automatic Bandsaw H8SA
$55,900.00Current price is: $55,900.00.
- One Bi-metal sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
Kalamazoo Machine Tool 7.5HP 208V Three Phase 24” Double Column Semi-Automatic Bandsaw H8SA is a Kalamazoo Machine Tool product in the Band Saws collection.
Product Details
- One Bi-metal sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Features
- Semiautomatic
- When a heavy duty bandsaw is needed for structural steel look no further than the H7 SA, H8 SA, or the H12 SA.
- Straight cut
- Double column
- 5 Degree cant
- Carbide guides w/ rollers
- Largest beam capacity
- H7 SA W24
- Perfectly counter balanced
- Clamping on both sides of cut
- Vibration free sawing in a range of interrupted and solid materials
- Rear guide is fixed, the outside guide automatically moves close to the cut
- Standard Equipment
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Specifications

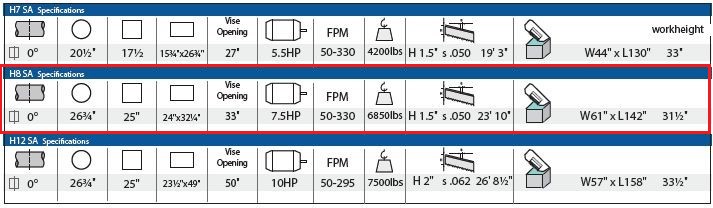

- (See chart in pictures.) Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
- Options
- AC600 – 10' Conveyor
- AC625 – 5' Conveyor with coolant tray
- AC116 – Spray mist coolant
Specifications
- Manufacturer: Kalamazoo Machine Tool
- SKU: H8SA (208V)
- Shipping Method: Flatbed
- Weight: 6,950 lb
- Dimensions: 147 × 66 × 36 in
- Warranty: 1 Year (Parts)
| Weight | 6950.0 lbs |
|---|---|
| Dimensions | 147.0 × 66.0 × 36.0 in |
| Brand | Kalamazoo Machine Tool |
