Kalamazoo Machine Tool Automatic Cold Saw KMT C 370A-NC
$25,996.75Current price is: $25,996.75.
- Blade Spindle Speeds: 13-89 rpm, infinitely variable
- Work Height: 35.25"
- Automatic Feed Lengths: 1/8" – 20" (with 1 feed)
- Capacity Round at 90 Deg: 4"
Kalamazoo Machine Tool Automatic Cold Saw KMT C 370A-NC is a Kalamazoo Machine Tool product in the Cold Saws collection.
Product Details
- Blade Spindle Speeds: 13-89 rpm, infinitely variable
- Work Height: 35.25"
- Automatic Feed Lengths: 1/8" – 20" (with 1 feed)
- Capacity Round at 90 Deg: 4"
- Description

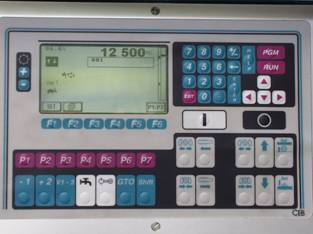

- The C 370 A-NC is a rugged heavy duty vertical column circular sawing machine with saw frame swiveling capability for mitering. Vertical column construction provides extremely stable saw frame guidance and stability, with vibration free sawing. The air over hydraulic system provides optimum sawing rates with minimum effort by the operator. The Numeric Control transforms our standard automatic into the easiest-to-use programmable sawing machine available today. The pendant mounted operators console features soft-touch controls for all setup and sawing operations, including height/depth controls for efficient saw cycling
- Standard Equipment
- Heavy Duty Drive, TEFC Motor
- Rotary Blade Brush
- Power Top Clamp Vise
- Full Electronic Control/Information System
- Height/Depth Cut Adjustments
- Hydraulic Oil
- Variable Clamping Pressure
- Blade Speed Indicator
- Disconnect Switch
- Totally Enclosed Transmission
- 24 Volt Controls
- HSS Sawblade
- Full coolant System
- Operators Tools
- All Safety Guards
- 6 feet of In-feed Conveyor
- Specifications
- Max Vise Opening: 7.125"
- Vises: Pneumatic, infinitely variable clamping pressure
- Weight Capacity: 1000 lbs
- Blade Specifications: 12.5" thru 14.5"
- Blade Mounting Specifications: 40 mm arbor, with 2 pins
- 10 mm on 63 mm bolt circle
- Sawing Force: infinitely adjustable
- Motors: Blade Drive 4 HP/Coolant 200 Watt
- Automatic Feed Lengths: 1/8" to 20" ( with 1 feed )
- 1/8" to infinite ( with multiple feeds )
- Barfeed Accuracy: +/- 0.005"
- Leftover Material Length: 5"
- Coolant Capacity: 5 Gallons
- Net Weight: 1875 lbs
- Machine Dimensions: 36" x 98" x 64"
- Round: Square | Rectangle
- 90 Deg: 4" | 4" | 3.5" x 7"
- 45 Deg Right: 4" | 4" | 4.75" x 3.5"
- 45 Deg Left: 4" | 4" | 4.75" x 3.5"
- 60 Deg Right: 4" | 3.5" | 3.5" x 3.5"
Specifications
- Manufacturer: Kalamazoo Machine Tool
- SKU: C 370A-NC
- Shipping Method: LTL Freight
- Weight: 1,875 lb
- Dimensions: 36 × 98 × 64 in
- Country of Origin: Italy
- Warranty: 1 Year (Parts)
| Weight | 1875.0 lbs |
|---|---|
| Dimensions | 36.0 × 98.0 × 64.0 in |
| Brand | Kalamazoo Machine Tool |
