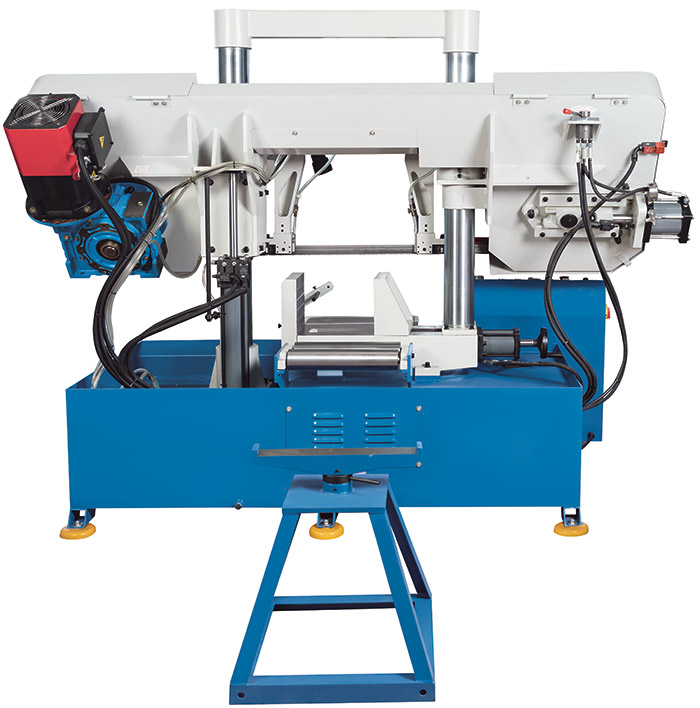

Knuth 0.67HP HB 400 T Horizonal Band Saw 152821
$20,374.25Current price is: $20,374.25.
- Cutting speed: 118, 184 fpm
- Motor rating hydraulic pump: 1 Hp
- Motor rating coolant pump: 0.1 Hp
- Blade dimensions: 196.85” x 1.61” x 0.05”
Knuth 0.67HP HB 400 T Horizonal Band Saw 152821 is a Knuth product in the Band Saws collection.
Product Details
- Cutting speed: 118, 184 fpm
- Motor rating hydraulic pump: 1 Hp
- Motor rating coolant pump: 0.1 Hp
- Blade dimensions: 196.85” x 1.61” x 0.05”
- Description
- The HB T series models are semi-automatic horizontal band saws for high-precision straight cuts in large workpieces made of steel, cast-iron, and other metals. These machines are designed with a rigid, highly stable dual-column frame. The saw frame’s stroke cylinder is integrated in the frame.
- Features
- The torsion-resistant dual-column construction and rigid, heavy cast-iron frame ensure minimal vibration

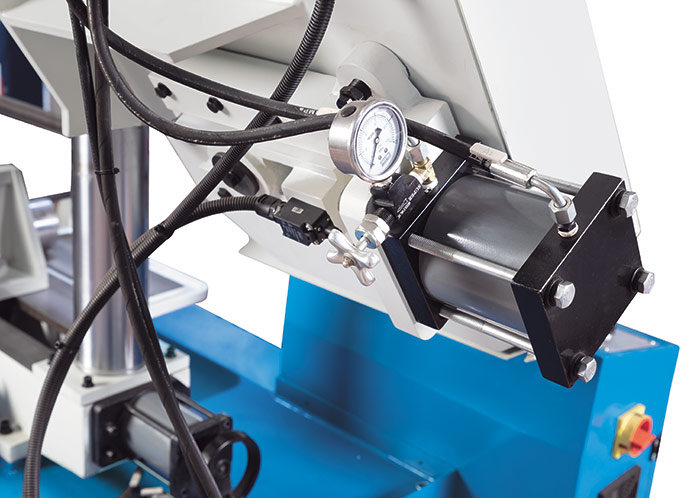

- Hydraulically controlled saw frame feed
- At the end of the cutting cycle, the machine automatically shuts off and the saw blade returns to its adjustable home position
- The powerful motorized saw blade drive is reduction gear-driven on the HB 400T
- The HB 400T features a precision-machined support table with integrated feed rollers and hydraulic saw blade tensioning
- Coolant system and material support base are part of the standard equipment
- Dual-column construction
- Hydraulic vise with micro adjustment
- Extensive standard equipment
- Standard Equipment
- Bimetallic band saw blade
- Support block
- Coolant system
- Work lamp
- Operating tools
- Operator instructions
- Specifications
- Cutting Capacities Cutting capacity 0° Round: 16” Square: 16” Flat (length x width): 16” x 16” Cutting speed: 118, 184 fpm
- Cutting capacity 0° Round: 16” Square: 16” Flat (length x width): 16” x 16”
- Round: 16”
- Square: 16”
- Flat (length x width): 16” x 16”
- Drive Capacity Motor rating hydraulic pump: 1 Hp Main motor rating: 4/6 Hp (0.67 Hp) Motor rating coolant pump: 0.1 Hp
- Main motor rating: 4/6 Hp (0.67 Hp)
- Measures and Weights Overall dimensions (length x width x height): 107” x 54” x 85” Weight: 2,915 lbs. Blade dimensions: 196.85” x 1.61” x 0.05”.
- Overall dimensions (length x width x height): 107” x 54” x 85”
- Weight: 2,915 lbs.
- Optional
- 103184 – Coolant Concentrate 5 Ltr
Specifications
- Manufacturer: Knuth
- SKU: 152821
- Shipping Method: Flatbed
- Weight: 3,115 lb
- Dimensions: 112 × 59 × 90 in
- Country of Origin: China
| Weight | 3115.0 lbs |
|---|---|
| Dimensions | 112.0 × 59.0 × 90.0 in |
| Brand | Knuth |
