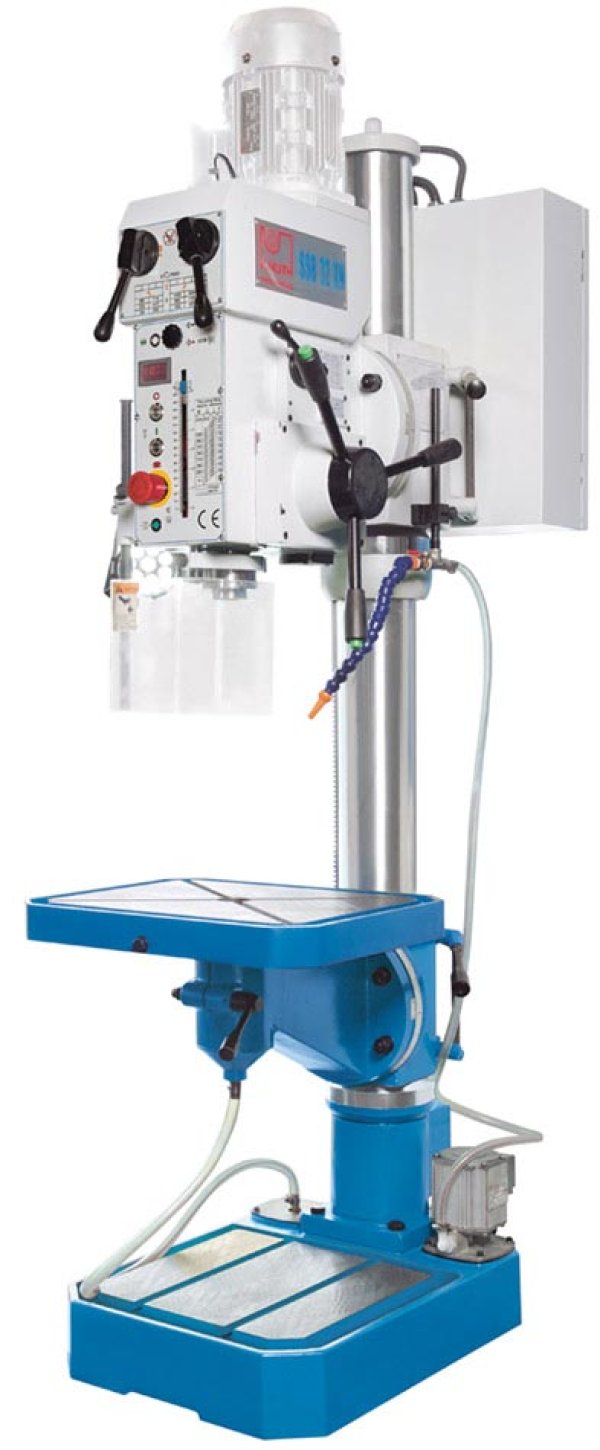

Knuth 1.6HP 1.26” 230V Three Phase SSB 32 Xn Column Drill Press 162332

Knuth 1.6HP 1.26” 230V Three Phase SSB 32 Xn Column Drill Press 162332 is a Knuth product in the Drill Presses collection.

Product Details

• Drilling capacity: 1.26”
• Table set up area: 20”x17”
• Head swivel range: ±45°
• 5 Year Parts Warranty
• Description
• The drilling machines of the SSB Xn series are the right choice for every workshop, both for repair and production. These universal drilling machines have a thick-walled column, powerful drives, and robust gearboxes for spindle and feed. The large work area and the large universal clamping tables allow easy handling and processing of small workpieces, but also large and heavy parts and assemblies. With its proven reliability, this series has been one of Knuth’s best-selling solutions for more than 20 years.
• Features
• Heavy cast-iron construction with thick-walled column
• Tapping feature
• Automatic drill feeds controlled by an electromagnetic clutch

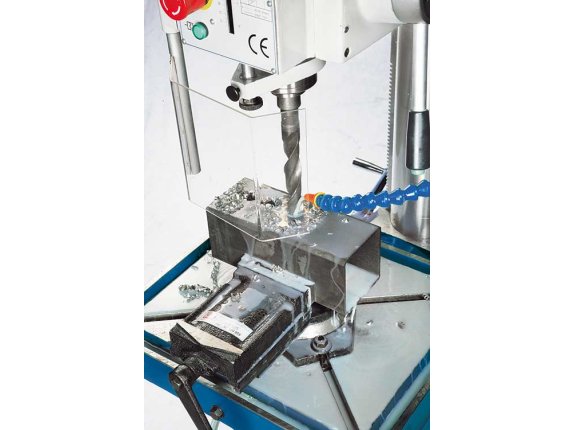

• Includes coolant system and work lamp
• Table rotates and swivels ±45°
• 2-step motor for 12 speed levels
• Head swivels ±45°, adjustable height

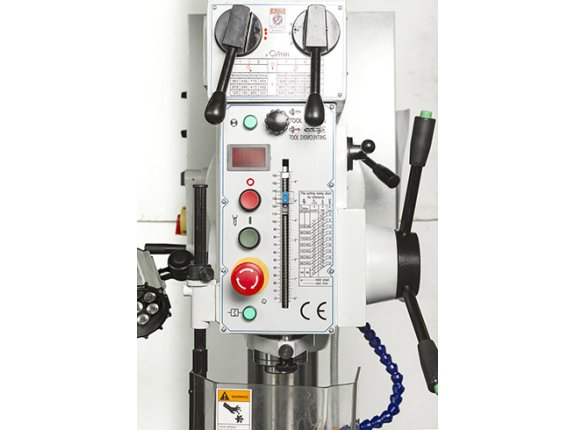

• Digital speed (rpm) display
• Tilting table for drilling at an angle
• Work table with 2-axes of rotation for flexibility in operation
• Well-considered safety protection
• Specifications
• Thread cutting function
• Protective shield
• LED work lamp
• Coolant system
• Operating tools
• Operator manual
• Working Area Drilling capacity: 1.26” Tapping capacity, steel: M 20 Table set up area: 20”x17” Table stroke: 19” Quill stroke: 6” Table swivel range (max): ±45° Spindle nose-to-table surface distance: 25” Spindle nose-to-foot distance: 47” Throat: 13” Column diameter: 5” Head swivel range: ±45° Table load capacity: 220 lbs
• Tapping capacity, steel: M 20
• Table stroke: 19”
• Quill stroke: 6”
• Table swivel range (max): ±45°
• Spindle nose-to-table surface distance: 25”
• Spindle nose-to-foot distance: 47”
• Throat: 13”
• Column diameter: 5”
• Table load capacity: 220 lbs
• Headstock Spindle mount: MT 4 Spindle speed: 125 rpm – 3030 rpm
• Spindle mount: MT 4
• Spindle speed: 125 rpm – 3030 rpm
• Feed Quill feeds: 0.004; 0.008, 0.12”/rev
• Quill feeds: 0.004; 0.008, 0.12”/rev
• Drive Capacity Motor rating main drive: 1.6HP
• Motor rating main drive: 1.6HP
• Measures and Weights Overall dimensions (LxWxH): 32”x 20” x 78” Weight: 1,188 lbs
• Overall dimensions (LxWxH): 32”x 20” x 78”
• Weight: 1,188 lbs
• Optional Accessories
• 103330 – Pivoted mounts LK 3
• 103820 – Reduction sleeve MT 4/1
• 103825 – Reduction sleeve MT 4/2
• 103830 – Reduction sleeve MT 4/3
• 104670 – Extension sleeve MT 4/5
• 104695 – Taper drift MT 4/5
• 104745 – Tool holder bit MT4/B16
• 104750 – Tool holder bit MT4/B18
• 104765 – Keyless drill chuck 0.4-0.5” B16
• 104770 – Keyless drill chuck 0.12-0.63” B18
• 106035 – Tapping attachment M5-M12 (MT3+MT4)
• 106037 – Tapping attachment M8-M20 (MT3+MT4)
• 107615 – Quarter circle cutter set 0.08-0.47”
• 107617 – Quarter circle cutter set 0.24-0.79”
• 108631 – Lathe bore head with boring bar set 2 in 9 pcs
• 108655 – Combo flat counter sink
• 108665 – Counter-sink set 90°
• 125006 – PBS 140 machine vise
• 125007 – PBS 200 machine vise
• 125031 – UMS 140 machine vise
• 108641 – Mounting shank for reaming head 1.97/2.95”, MT4
• 108633 – Lathe bore head with boring bar set 3 in 12 pcs
• 103184 – Coolant concentrate 5 ltr
• 104840 – PB 100 v-block drill press vise
• 105295 – Clamping tool set de luxe 14/M12
• 103402 – Universal facing/lathe bore head ADA/MT4
• 104594 – Accessory set for drilling MT4, 8-pc

Specifications

• Manufacturer: Knuth
• SKU: 162332
• Shipping Method: LTL Freight
• Weight: 1,300 lb
• Dimensions: 40 × 30 × 80 in
• Country of Origin: Germany
• Warranty: 5 Years (Parts)
