Knuth 20.1HP BO T 110 CNC Drill Unit 100080

Knuth 20.1HP BO T 110 CNC Drill Unit 100080 is a Knuth product in the Milling Machines collection.

Product Details

• Travel X-axis: 47.2”
• Travel Y-axis: 35”
• Drilling capacity : 1.97"
• Counterbore diameter (max.): 9”
• Description

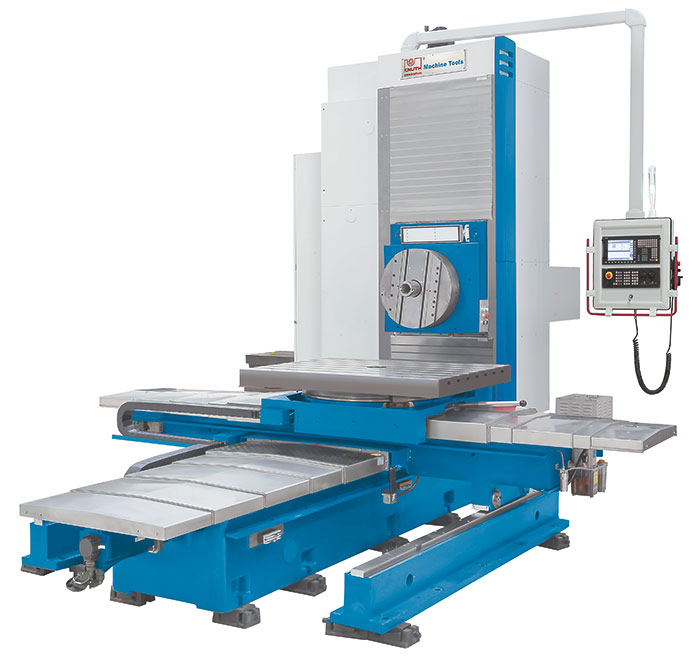

• With the large milling and boring mills of the BO 110 CNC series, heavy-duty machining of large and heavy workpieces is possible. The powerful Siemens 828D CNC control and the 4-position indexing turntable for multi-sided machining of workpieces in just one clamping, create solutions for a broader range of your milling and drilling work.
• Features
• The state-of-the-art machine frame is constructed of premium cast-iron to ensure stability and rigidity even under very heavy machining loads

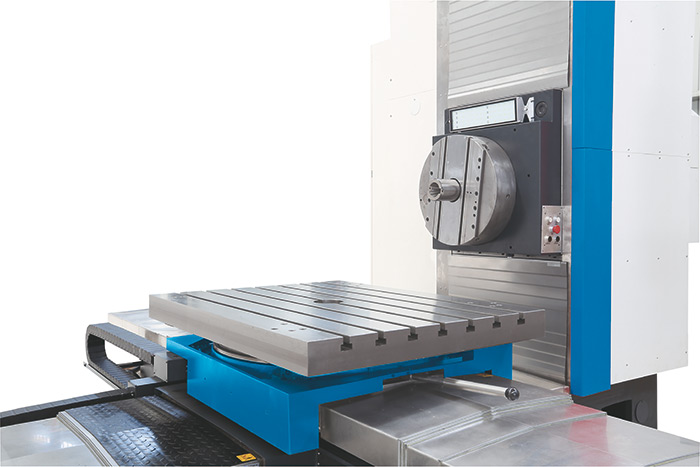

• 4-side machining is supported by a manually rotated setup table that can be locked with high precision in 4 positions
• The rotary table features a large table center support area that can handle workpiece weights up to 5.5 tons
• Spindle and facing slide speeds can be quickly adjusted via an infinitely variable rpm control
• Siemens 828D control and drives guarantee high productivity, wide functionality, and maximum precision
• Excellent functional interaction between hardware and software ensures high dynamics, while motors and drive technologies provide the necessary precision
• Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance
• The powerful motor ensures constant torque across the entire speed infinitely range
• Telescoping steel cover protects the guides from chips and dirt
• Easy maintenance due to standard central lubrication system
• Standard Equipment
• Siemens 828D control
• Electronic hand-wheel
• Manual rotary table with 4-position indexing
• RS-232 interface
• Work lamp
• Central lubrication
• Operator manual
• Coolant system
• Specifications
• Working Area Drilling capacity : 1.97” Counterbore diameter (max.): 9” Facing slide working diameter (max.): 31” Table set up area: 52”x 40” Table load capacity: 11.000 lbs. Spindle center-to-table distance: 0”- 36” Number of T-slots: 7 positions T-slots, width: 0.9” T-slots, spacing: 4.9” Table rotation range: 4 x 90°
• Facing slide working diameter (max.): 31”
• Table set up area: 52”x 40”
• Table load capacity: 11.000 lbs.
• Spindle center-to-table distance: 0”- 36”
• Number of T-slots: 7 positions
• T-slots, width: 0.9”
• T-slots, spacing: 4.9”
• Table rotation range: 4 x 90°
• Travels Travel X-axis: 47.2” Travel Y-axis: 35” Travel Z-axis: 51” Travel W-axis: 22” Facing slide travel: 5”
• Travel Z-axis: 51”
• Travel W-axis: 22”
• Facing slide travel: 5”
• Headstock Speed range-stages: 2 Speed range: 12 rpm – 1.100 rpm Spindle diameter: 4” Spindle torque (max.): 811 ft.lb. Spindle mount: BT 50 Facing slide speed: 4 rpm – 125 rpm
• Speed range-stages: 2
• Speed range: 12 rpm – 1.100 rpm
• Spindle diameter: 4”
• Spindle torque (max.): 811 ft.lb.
• Spindle mount: BT 50
• Facing slide speed: 4 rpm – 125 rpm
• Rapid Feed Rapid feed X-axis: 393.7”/min Rapid feed Y-axis: 393.7”/min Rapid feed Z-axis: 393.7”/min Rapid feed W-axis: 197”/min Rapid Feed U-axis: 5”/min
• Rapid feed X-axis: 393.7”/min
• Rapid feed Y-axis: 393.7”/min
• Rapid feed Z-axis: 393.7”/min
• Rapid feed W-axis: 197”/min
• Rapid Feed U-axis: 5”/min
• Feed Feed X-axis: 1”/min – 39”/min Feed Y-axis: 1”/min – 39”/min Feed Z-axis: 1”/min – 39”/min Feed W-axis: 1”/min – 39”/min Facing slide feed: 0.008”/min – 3.15”/min
• Feed X-axis: 1”/min – 39”/min
• Feed Y-axis: 1”/min – 39”/min
• Feed Z-axis: 1”/min – 39”/min
• Feed W-axis: 1”/min – 39”/min
• Facing slide feed: 0.008”/min – 3.15”/min
• Accuracies Positioning accuracy X-axis: 0.00157” Positioning accuracy Y-axis: 0.00157” Positioning accuracy W-axis: 0.00157” Positioning accuracy Z-axis: 0.00157” Repeatability X-axis: 0.00079” Repeatability Y-axis: 0.00079” Repeatability T-axis: 0.00079” Repeatability W-axis: 0.00079” Work table rotation accuracy: 12”
• Positioning accuracy X-axis: 0.00157”
• Positioning accuracy Y-axis: 0.00157”
• Positioning accuracy W-axis: 0.00157”
• Positioning accuracy Z-axis: 0.00157”
• Repeatability X-axis: 0.00079”
• Repeatability Y-axis: 0.00079”
• Repeatability T-axis: 0.00079”
• Repeatability W-axis: 0.00079”
• Work table rotation accuracy: 12”
• Drive Capability Motor rating main drive : 20.1 HP
• Motor rating main drive : 20.1 HP
• Measures and Weights Overall dimensions (L x W x H): 217”x 121”x 115” Weight: 29,700 lbs.
• Overall dimensions (L x W x H): 217”x 121”x 115”
• Weight: 29,700 lbs.
• Options
• Rotary table with controlled positioning
• 253423 – 5° indexing work table for BO T 110 (L) CNC
• 253424 – 1° indexing work table for BO T 110 (L) CNC
• 253425 – 0.001° indexing work table for BO T 110 (L) CNC
• 253426 – Increased Y axis travel by 16
• Optional Accessories
• 270307 – E.T. Box LAN
• 270308 – E.T. Box WIFI
• 270309 – E.T. Box W4G
• 103954 – Shell End Milling Arbor BT50x40
• 103955 – Shell End Milling Arbor BT50x50
• 104204 – Collet chuck, MAS BY50-ER32
• 104205 – Collet chuck, MAS BT50-ER40
• 104765 – Keyless Drill Chuck 0.04-0.5in B16
• 104770 – Keyless Drill Chuck 0.12-0.63in B18
• 106052 – ER 32 Collet Set 6 pcs
• 106075 – ER 40 Collet Set 15 pcs
• 123040 – Power Worker Metal Cutter
• 193225 – Weldon MAS-BT 50, Ø 0.23 x 2.48"
• 193226 – Weldon MAS-BT 50, Ø 0.315 x 2.48"
• 193227 – Weldon MAS-BT 50, Ø 0.393 x 2.48"
• 193228 – Weldon MAS-BT 50, Ø 0.427 x 3.15"
• 193229 – Weldon MAS-BT 50, Ø 0.551 x 3.15"
• 193230 – Weldon MAS-BT 50, Ø 0.63 x 3.15"
• 193231 – Weldon MAS-BT 50, Ø 0.781 x 3.15"
• 193232 – Weldon MAS-BT 50, Ø 0.984 x 3.94"
• 193233 – Weldon MAS-BT 50, Ø 1.26 x 4.13"
• 193234 – Weldon MAS-BT 50, Ø 1.57 x 4.53"
• 193608 – Draw bolts BT 50, 45° without bore
