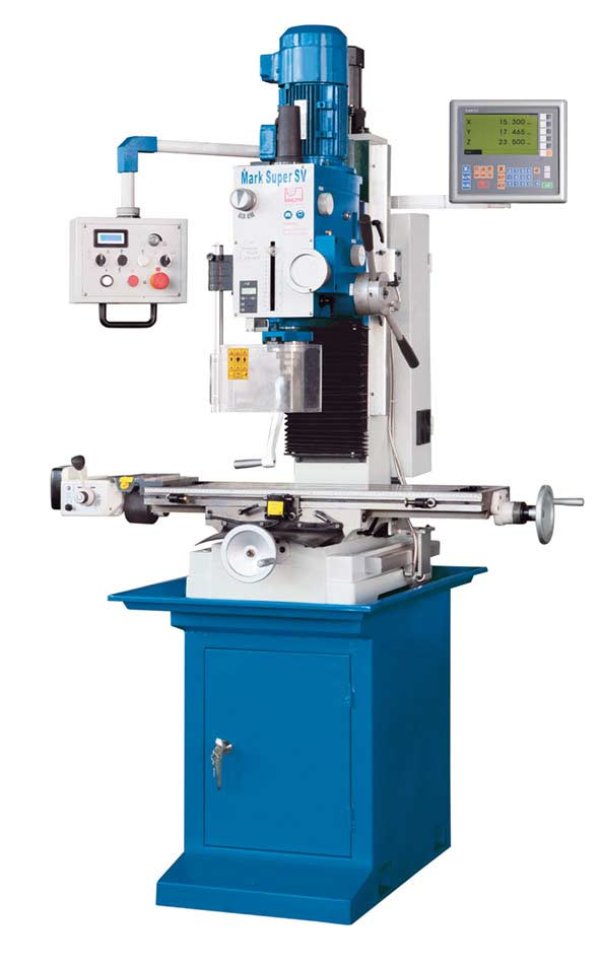

Knuth 2HP 31”x9” Mark Super VS Vertical Mill Drill 301490

Knuth 2HP 31”x9” Mark Super VS Vertical Mill Drill 301490 is a Knuth product in the Mill Drills collection.

Product Details

• Drilling capacity in steel: 1”
• Shaft milling: 0.98”
• Head elevation: 15”
• Number of table T-slots: 3 positions
• Description
• The models of the Mark Super series are drilling and milling machines in the best way. They are ideal as a compact drill with a powerful drive and a wide speed range. But these machines also cut a fine figure when milling steel and non-ferrous metals. They are therefore widespread in workshops and maintenance departments for single piece machining, small series production or training departments. Thanks to their compact design and versatility, they are still a bestseller even after 15 years.
• Features
• Motorized cutter head movement and hand-wheel for exact positioning of head

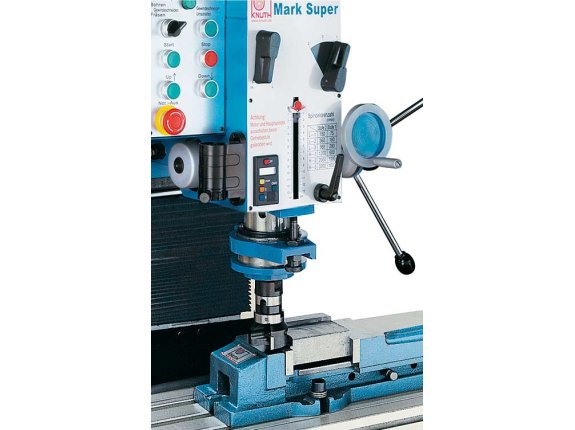

• Hand-wheel for quill micro-feed
• Digital depth indicator for quill travel
• Tapping unit with adjustable rotation reversal for thread cutting
• Hardened gear racks and shafts for quiet operation and long life
• Rigid base with storage room is included
• Infinitely variable fee on X-axis is included
• Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining
• The selected spindle speed is displayed directly on the control panel
• Standard Equipment
• 3-axis position indicator X.Pos 3.2
• Automatic quill feed
• Base
• Table feed TV 1000
• Drill chuck ½”
• Tool-holder bits
• Operator manual
• Specifications
• Working Area Table dimensions: 31” x 9” Drilling capacity in steel: 1” Shaft milling: 0.98” Head elevation: 15” Number of table T-slots: 3 positions T-slot table (width x spacing): 0.55” x 3.15”
• Table dimensions: 31” x 9”
• T-slot table (width x spacing): 0.55” x 3.15”
• Travels Travel X-axis manual/autom: 19” / 22” Travel Y-axis: 7”
• Travel X-axis manual/autom: 19” / 22”
• Travel Y-axis: 7”
• Vertical Milling Head Spindle mount: R8 Quill diameter: 3” Quill stroke: 5” Spindle nose-to-table distance: 18” Throat: 10” Head swivel range: ±45° Speed: (2) 75-438 / 438-2500 rpm
• Spindle mount: R8
• Quill diameter: 3”
• Quill stroke: 5”
• Spindle nose-to-table distance: 18”
• Throat: 10”

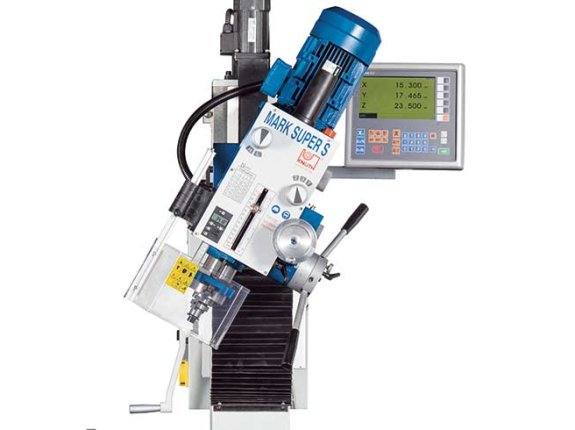

• Head swivel range: ±45°
• Speed: (2) 75-438 / 438-2500 rpm
• Feed Quill feeds: 010; 018; 026 (3) “/rev
• Quill feeds: 010; 018; 026 (3) “/rev
• Drive Capacity Main motor rating: 2HP
• Main motor rating: 2HP
• Measures and Weights Overall dimensions (LxWxH): 49” x 37” x 83” Weight: 836 lbs
• Overall dimensions (LxWxH): 49” x 37” x 83”
• Weight: 836 lbs
• Optional Accessories
• 103184 – Coolant concentrate 5 ltr
• 103330 – Pivoted mounts LK 3
• 103402 – Universal facing/lathe bore head ADA/MT 4
• 103820 – Reduction sleeve MT 4/1
• 103825 – Reduction sleeve MT 4/2
• 103830 – Reduction sleeve MT 4/3
• 103860 – Shell end milling arbor Ø16 MT 4
• 103861 – Shell end milling arbor Ø22 MT 4
• 104594 – Accessory set for drilling MT4, 8-pc
• 104670 – Extension sleeve MT 4/5
• 104745 – Tool holder bit MT4/B16
• 104750 – Tool holder bit MT4/B18
• 104765 – Keyless drill chuck 0.04-0.5” B16
• 104770 – Keyless drill chuck 0.12-0.63” B18
• 105295 – Clamping tool set de luxe 14/M12
• 105790 – Swivel hold-down clamp set 100/M12
• 106035 – Tapping attachment M5-M12 (MT3+MT4)
• 106037 – Tapping attachment M8-M20 (MT3+MT4)
• 106052 – ER32 collet set 6 pcs
• 106075 – ER40 collet set 15 pcs
• 106058 – ER23 collet chuck/mount MT4
• 106064 – ER40 collet chuck/mount MT4
• 108057 – Edge tracer set
• 108400 – Roughing end mill cutter 40
• 108401 – Roughing end mill cutter 50
• 108402 – Roughing end mill cutter 63
• 108440 – End milling set HSS TiN
• 108631 – Lathe bore head with boring bar set 2 in 9 pcs
• 108633 – Lathe bore head with boring bar set 3 in 12 pcs
• 108641 – Mounting shank for reaming head 1.97/2.95”, MT4
• 110960 – Divider ST 130
• 110966 – Direct indexing head S 200
• 110970 – Optional accessory set/ST 130
• 125024 – HS 125 hydraulic machine vise
• 125830 – Rotary table RT 160
• 129055 – Electronic edge tracer

Specifications

• Manufacturer: Knuth
• SKU: 301490
• Shipping Method: LTL Freight
• Weight: 1,056 lb
• Dimensions: 60 × 48 × 90 in
• Country of Origin: Germany
