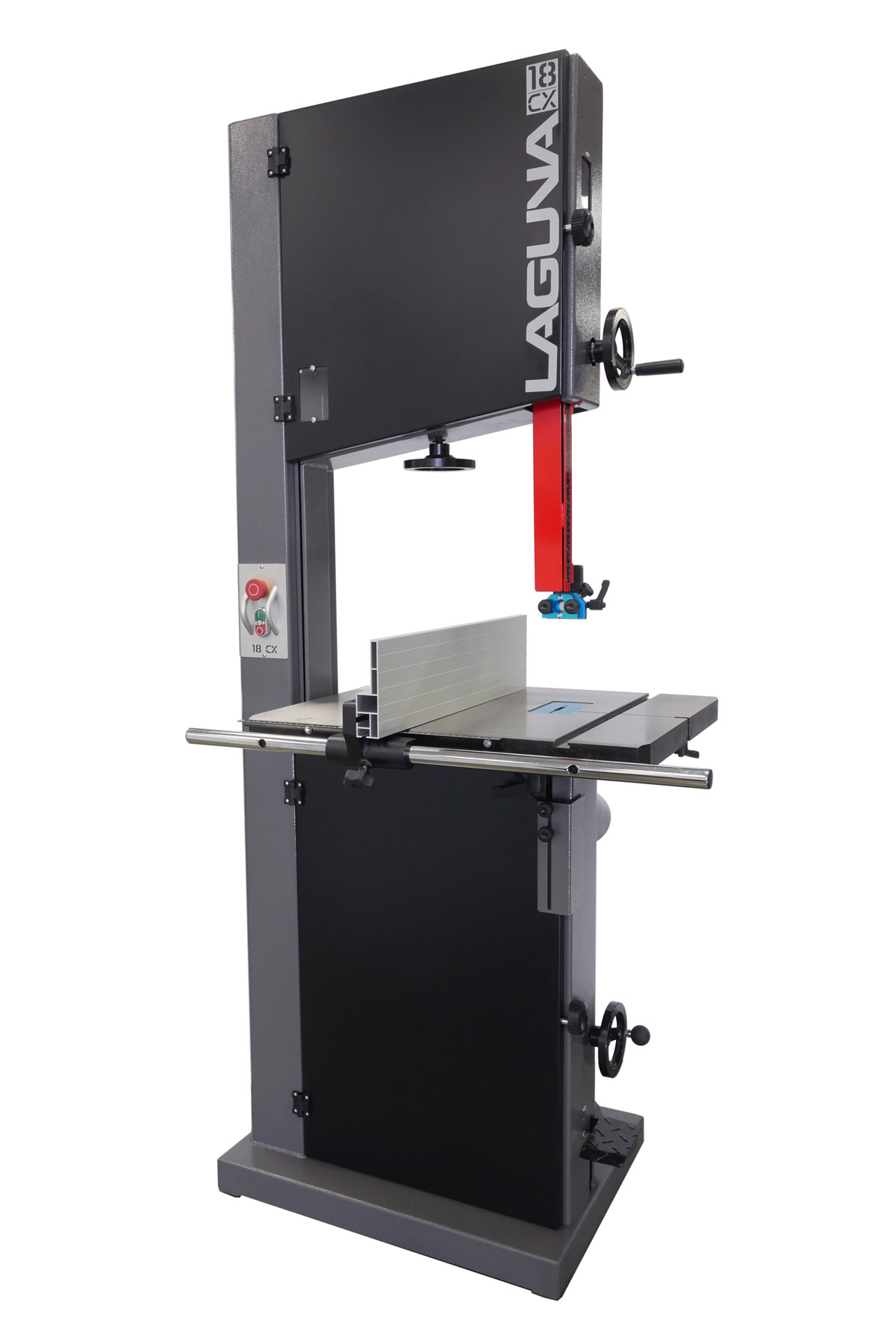

Laguna Tools 18|CX 1.75HP 110V Single Phase Metal and Wood Bandsaw MBAND18CX110175
$3,443.05Current price is: $3,443.05.
- 16″ Resaw
- Blade Length: 145″
- Throat: 18 7/32”
- Motor: 1 3/4 HP, 110 Volt, Single Phase
Laguna Tools 18|CX 1.75HP 110V Single Phase Metal and Wood Bandsaw MBAND18CX110175 is a Laguna Tools product in the Band Saws collection.
Product Details
- 16″ Resaw
- Blade Length: 145″
- Throat: 18 7/32”
- Motor: 1 3/4 HP, 110 Volt, Single Phase
- Description
- The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.
- Features
- Motor: 1.75HP, 110V, 14/7 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter
- Min-Max Blade Width: 1/8″ – 1 1/4″
- Resaw Capacity: 16″
- Specifications
- Disc-Brake with Micro Switch
- 110V Outlet on Back for Light
- Window For Tension
- Window For Tracking
- Magnetic Blade Tension Guide
- Worm Gear & Pinion Upper Guide
- 10 Point Laguna Ceramic Guides
- Mechanical Variable Speed Drive
- Low Blade Speed: 100-290 FPM
- High Speed Blade: 1200-3500 FPM
- Anodized Insert with Micro Adjustment
- Dynamically Balanced Cast Iron Wheels
- Urethane Single Piece Snap-On Tire
- Cast Table Size: 20″ x 26″
- Table Tilt: 6°, +45°
- Quick-Release Tension
- Hi/Low Anodized Aluminum Fence: 22 3/4″ x 7 1/4″ x 11/16″
- Table Height: 38″
- Dust Ports: 4″ x 2
- Overall Height: 77 3/4″
- Dimensions (Base): 27″ x 20″
- Dimensions (Overall): 38″ x 36″
- Dimensions (Box): 82″ x 34″ x 36″
- Weight (Net/Ship): 480/545 lbs
- Shipping Dimensions (L x W x H): 55″ x 22″ x 25″
- Available Options
- 18|CX Wheel System – Foot Operated 360° Omni-Directional Rubber-Coated Wheels Adjustable Rubber Pads Oilite Bronze Bushing Allows for Less Friction & Longer Life Easy Install with No Drilling Required Pedal Raises & Lowers Front Wheel Wheels Mounted Outside Frame to Maximize Stability
- Foot Operated
- 360° Omni-Directional
- Rubber-Coated Wheels
- Adjustable Rubber Pads
- Oilite Bronze Bushing Allows for Less Friction & Longer Life
- Easy Install with No Drilling Required
- Pedal Raises & Lowers Front Wheel
- Wheels Mounted Outside Frame to Maximize Stability
- Pro Light System Swivels 220° 12 Volt/50 Watt Tilts Vertically 320° Built-In Transformer Independent On/Off Ribbed Aluminum Case Halogen Hi-Intensity Light Bright, Glare-Free Flood Light Designed for Even Light Distribution Reinforced Glass, Dustproof Design Top and Side Cabinet Mounting Position
- Swivels 220°
- 12 Volt/50 Watt
- Tilts Vertically 320°
- Built-In Transformer
- Independent On/Off
- Ribbed Aluminum Case
- Halogen Hi-Intensity Light
- Bright, Glare-Free Flood Light
- Designed for Even Light Distribution
- Reinforced Glass, Dustproof Design
- Top and Side Cabinet Mounting Position
- LED Chameleon Machine Lamp
- Blades
- Expandable Roller Conveyor
- *Blade Not Included
Specifications
- Manufacturer: Laguna Tools
- SKU: MBAND18CX110175
- UPC: 650434694735
- Shipping Method: LTL Freight
- Weight: 480 lb
- Dimensions: 55 × 22 × 25 in
- Country of Origin: Taiwan
- Warranty: 2 Years (Parts)
- Warranty Details: Machines must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty.
| Weight | 480.0 lbs |
|---|---|
| Dimensions | 55.0 × 22.0 × 25.0 in |
| Brand | Laguna Tools |
