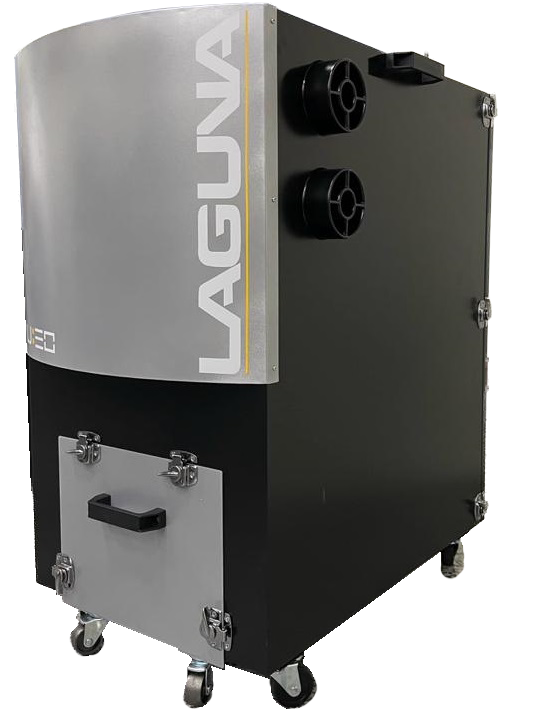

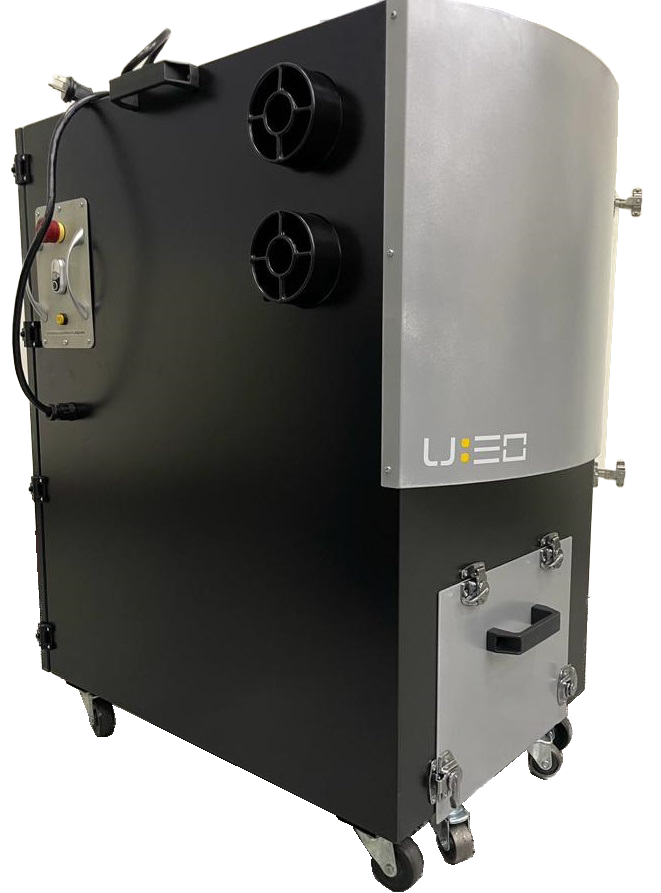

Laguna Tools U|30 220V Single Phase 957 CFM Metal Dust Collector with 5.6 Gallon Collection Drawer MDC503L2203
$2,144.35Current price is: $2,144.35.
- Motor: 3 HP
- Motor speed: 3450 rpm
- Noise volume: 74 dB
- Impeller size: 12” diameter
Laguna Tools U|30 220V Single Phase 957 CFM Metal Dust Collector with 5.6 Gallon Collection Drawer MDC503L2203 is a Laguna Tools product in the Grinding & Sanding collection.
Product Details
- Motor: 3 HP
- Motor speed: 3450 rpm
- Noise volume: 74 dB
- Impeller size: 12” diameter
- Description
- The Laguna Tools U|30 Metal Dust Collector offers industrial-level dust collection with its 3 HP motor, production up to 957 CFM of airflow. Four 4-inch inlets allow for easy connection for multiple machines, making it ideal for larger shops.
- Constructed with a steel body and durable drum, the U|30 is built for heavy use. The 5.6-gallon metal drawer collects debris efficiently, while the fire-resistant micro mesh filter traps fine dust for cleaner air. Despite its powerful performance, it operates at a quiet 74 dB and is easily movable thanks to built-in casters.
- Specifications
- Amps: 11 FLA
- Switch: magnetic
- Power cord: 6 ft
- Plug: no plug
- Inlet size: 4” x 4”
- Max air flow: 957 CFM
- Static pressure: 9.4” H2O
- Collection volume: 5.6 gallons
- Filter material: galvanized micromesh
- Filter size: 19.25” x 25” x 1.8”
- Construction: Steel cart-stainless drum
- Start capacitor: 600F/125V
- Run capacitor: 450F/350V
- Wheels: 2.5” machine / 2” drum
- Electrical Requirements: 220V Single Phase 60Hz
- Machine Dims: 35.4” x 24.6” x 40”
- Approx Weight: 231 lbs
- Optional Add-Ons
- D|Flux Remote Control
- Cyclones caster wheel (no brakes)
- Cyclones caster wheel with brake
- Drum bags
- Cabinet filter bags
Specifications
- Manufacturer: Laguna Tools
- SKU: MDC503L2203
- Shipping Method: LTL Freight
- Weight: 255 lb
- Dimensions: 35 × 26 × 42 in
- Country of Origin: Taiwan
| Weight | 255.0 lbs |
|---|---|
| Dimensions | 35.0 × 26.0 × 42.0 in |
| Brand | Laguna Tools |
