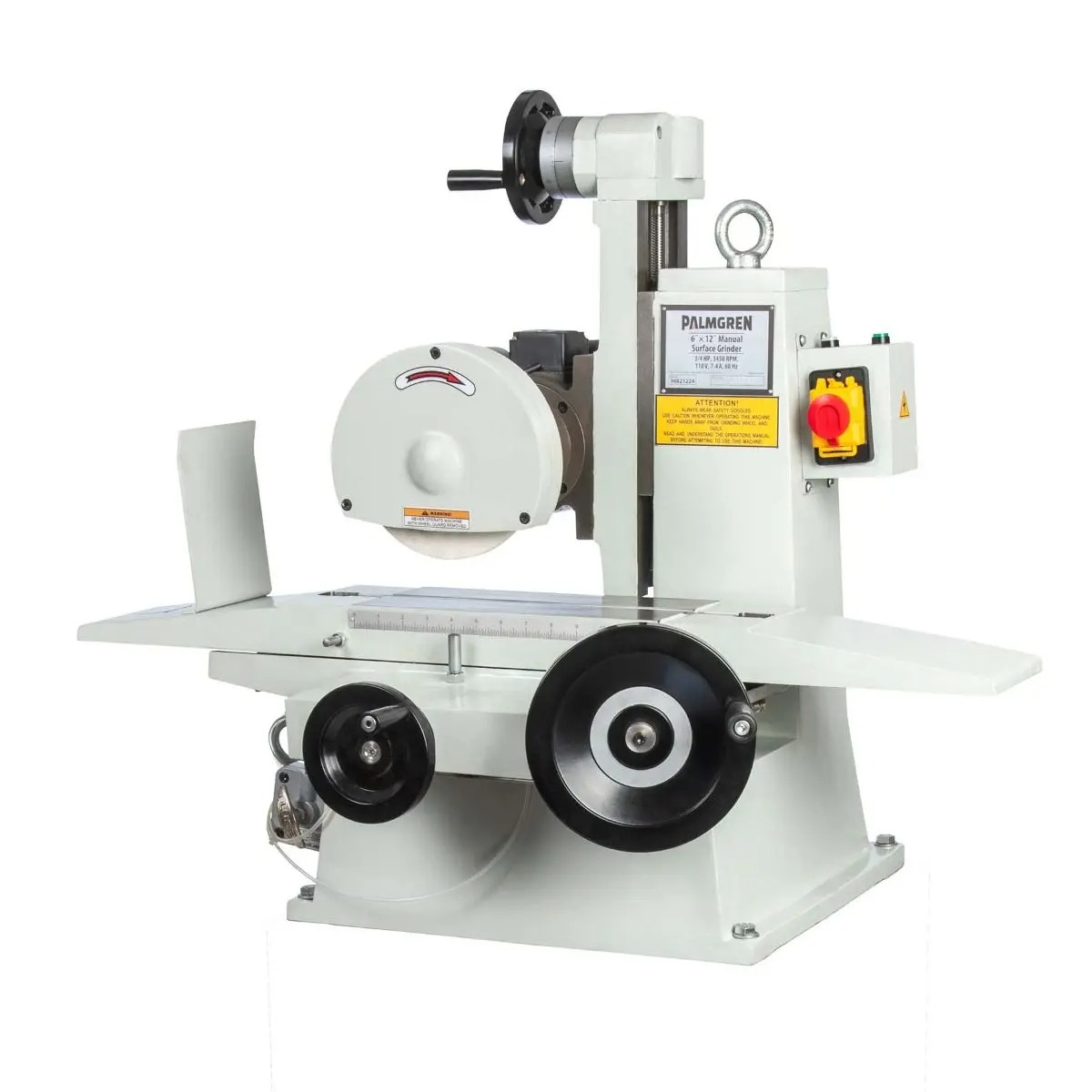

Palmgren 6” x 12” Bench Surface Grinder 9682122
$4,166.50Current price is: $4,166.50.
- Motor: ¾ HP Single Phase
- RPM: 3600
- Table Size: 6" x 12"
- Wheel Size (Dia x W x Bore): 7" x 1/2" x 1-1/4"
Palmgren 6” x 12” Bench Surface Grinder 9682122 is a Palmgren product in the Grinding & Sanding collection.
Product Details
- Motor: ¾ HP Single Phase
- RPM: 3600
- Table Size: 6" x 12"
- Wheel Size (Dia x W x Bore): 7" x 1/2" x 1-1/4"
- Description
- This economical 6” x 12” manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed. Bring mirror-like finishes to your metalworking projects with this professional grinder.
- Features
- Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
- Rack and pinion mechanism with dove tail ways
- Hand scraped ways
- Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
- Swarf guard
- Large easy to read dials
- Spiral bevel gear for easy vertical movement of the spindle head
- Steel Floor Stand Included
- Specifications
- Abrasive Finishing Type: Bench Grinders and Buffers
- Bench Grinder and Buffer Drive: Single Speed
- Country of Origin: CN
- Cross Feed Motor: 0.001"
- Max. Grinding Length: 12-1/2"
- Max. Grinding Width: 6-11/16"
- Motor HP: 3/4
- Phase: Single
- Table Dimensions: 6" x 12"
- T-Slot Size/Distance/Quantity: 1/2"
- Vertical Feed Graduation: 0.0005"
- Voltage: 115
- Table to Center of Spindle: 11
- UPC: 726896821221
- Product Height (in): 38.38
- Product Weight (lbs): 710
- Optional Accessories
- Item # 9682130 Permanent magnetic chuck
Specifications
- Manufacturer: Palmgren
- SKU: 9682122
- UPC: 726896821221
- Shipping Method: LTL Freight
- Weight: 710 lb
- Dimensions: 41 × 28.75 × 39 in
- Country of Origin: China
- Warranty: 3 Years (Parts)
| Weight | 710.0 lbs |
|---|---|
| Dimensions | 41.0 × 28.75 × 39.0 in |
| Brand | Palmgren |
