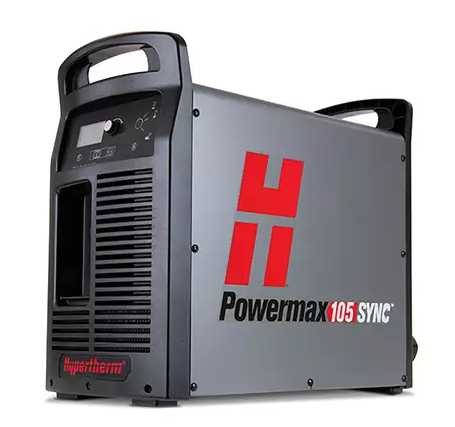

Lone Star 7/8” 105 Amp Hypertherm Sync 105 Plasma Cutter PLS-HYP-105

Lone Star 7/8” 105 Amp Hypertherm Sync 105 Plasma Cutter PLS-HYP-105 is a Lone Star product in the CNC Plasma Tables collection.

Product Details

• Max. Pierce: 7/8”
• Min. Pierce: 1/4”
• Amps: 105
• Gas Supply: Clean, dry, oil-free air or nitrogen
• Specifications
• Mild Steel: 1/4 inch – 105 amps – 192 IPM 1/2 inch – 105 amps – 76 IPM 3/4 inch – 105 amps – 40 IPM
• 1/4 inch – 105 amps – 192 IPM
• 1/2 inch – 105 amps – 76 IPM
• 3/4 inch – 105 amps – 40 IPM
• Stainless Steel: 1/4 inch – 105 amps – 224 IPM 1/2 inch – 105 amps – 68 IPM 3/4 inch – 105 amps – 34 IPM
• 1/4 inch – 105 amps – 224 IPM
• 1/2 inch – 105 amps – 68 IPM
• 3/4 inch – 105 amps – 34 IPM
• Aluminum: 1/4 inch – 105 amps – 265 IPM 1/2 inch – 105 amps – 91 IPM 3/4 inch – 105 amps – 50 IPM
• 1/4 inch – 105 amps – 265 IPM
• 1/2 inch – 105 amps – 91 IPM
• 3/4 inch – 105 amps – 50 IPM
• CSA 200-600 v, 3-PH, 50/60 Hz
• Duty Cycle @ 40 degrees Centigrade (104F) = 80% @ 105 A
• CSA – Certified for use in the Americas and Asia, except China
• Gas Supply – Clean, dry, oil-free air or nitrogen (shop air should be avoided at all cost)
• Shipping Weight: 95 lbs.
• Shipping Dimensions (L x W x H): 23.3” x 10.8” x 20”

Specifications

• Manufacturer: Lone Star
• SKU: PLS-HYP-105
• Shipping Method: Ground
• Weight: 95 lb
• Dimensions: 24 × 11 × 20 in
• Country of Origin: United States of America
• Warranty: 2 Years (Parts)
