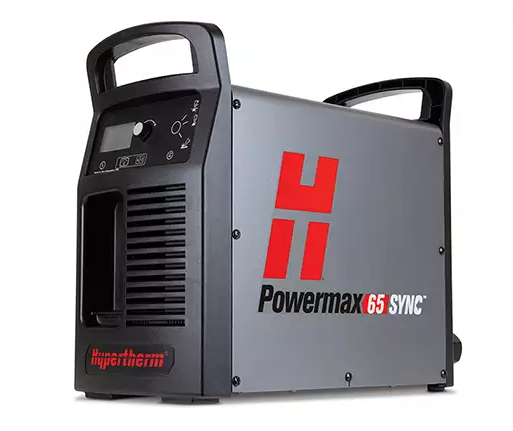

Lone Star 5/8” 65 Amp Hypertherm Sync 65 Plasma Cutter PLS-HYP-65
$3,246.75Current price is: $3,246.75.
- Max. Pierce: 5/8”
- Min. Pierce: 1/4”
- Amps: 65
- Input Voltage: Duty Cycle at 104 Deg. Fahrenheit
Lone Star 5/8” 65 Amp Hypertherm Sync 65 Plasma Cutter PLS-HYP-65 is a Lone Star product in the CNC Plasma Tables collection.
Product Details
- Max. Pierce: 5/8”
- Min. Pierce: 1/4”
- Amps: 65
- Input Voltage: Duty Cycle at 104 Deg. Fahrenheit
- Specifications
- Mild Steel: 10GA – 65 amps – 224 IPM 1/4 inch – 65 amps – 116 IPM 1/2 inch – 65 amps – 40 IPM 5/8 inch – 65 amps – 26 IPM
- 10GA – 65 amps – 224 IPM
- 1/4 inch – 65 amps – 116 IPM
- 1/2 inch – 65 amps – 40 IPM
- 5/8 inch – 65 amps – 26 IPM
- Stainless Steel: 10GA – 65 amps – 296 IPM 1/4 inch – 65 amps – 96 IPM 3/8 inch – 65 amps – 52 IPM 1/2 inch – 65 amps – 32 IPM
- 10GA – 65 amps – 296 IPM
- 1/4 inch – 65 amps – 96 IPM
- 3/8 inch – 65 amps – 52 IPM
- 1/2 inch – 65 amps – 32 IPM
- Aluminum: 10GA – 65 amps – 336 IPM 1/4 inch – 65 amps – 152 IPM 3/8 inch – 65 amps – 68 IPM 1/2 inch – 65 amps – 48 IPM
- 10GA – 65 amps – 336 IPM
- 1/4 inch – 65 amps – 152 IPM
- 3/8 inch – 65 amps – 68 IPM
- 1/2 inch – 65 amps – 48 IPM
- Input Voltages: CSA 200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz Duty Cycle at 104 Deg. Fahrenheit CSA 50% @ 65 A, 230 – 600 V, 1/3-PH 40% @ 65 A, 200 – 208 V, 1/3-PH 100% @ 46 A, 230 – 600 V, 1/3-PH
- CSA 200 – 240 V, 1-PH, 50-60 Hz
- 480 V, 3-PH, 50-60 Hz
- Duty Cycle at 104 Deg. Fahrenheit
- CSA 50% @ 65 A, 230 – 600 V, 1/3-PH
- 40% @ 65 A, 200 – 208 V, 1/3-PH
- 100% @ 46 A, 230 – 600 V, 1/3-PH
- Shipping Weight: 61 lbs.
- Shipping Dimensions (L x W x H): 19” x 9.2” x 17”
Specifications
- Manufacturer: Lone Star
- SKU: PLS-HYP-65
- Shipping Method: Ground
- Weight: 61 lb
- Dimensions: 19 × 10 × 17 in
- Country of Origin: United States of America
- Warranty: 2 Years (Parts)
| Weight | 61.0 lbs |
|---|---|
| Dimensions | 19.0 × 10.0 × 17.0 in |
| Brand | Lone Star |
