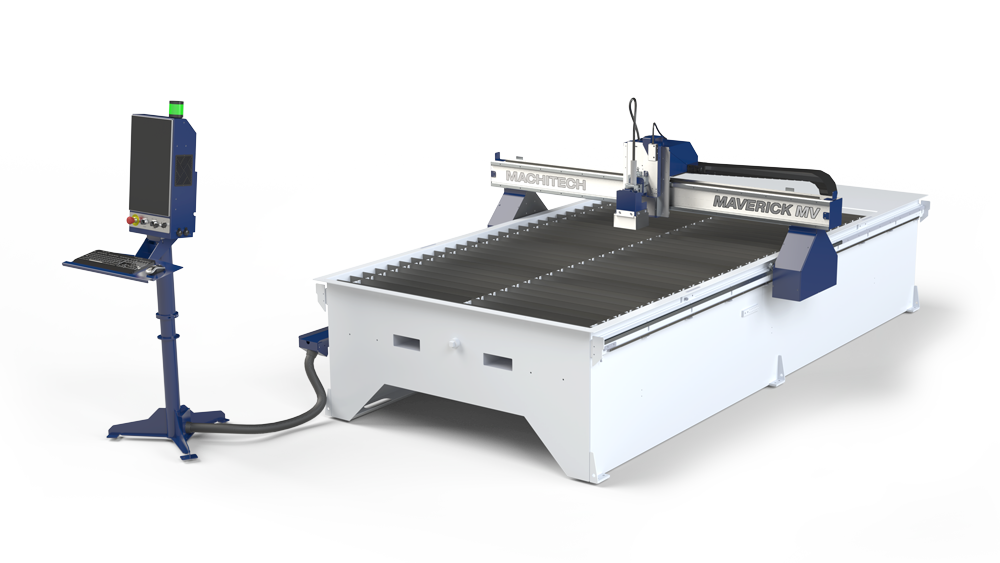

Machitech Maverick CNC MV Series 5′ x 5′ Conventional Air Plasma Table with Hypertherm Powermax 85 Sync MV55-HT-PM85
$27,166.75Current price is: $27,166.75.
- Work Area: 66” x 66”
- Z-Axis Clearance: 5.5”
- Z-Axis Travel: 6”
- Repeatability: +/- 0.001”
Machitech Maverick CNC MV Series 5′ x 5′ Conventional Air Plasma Table with Hypertherm Powermax 85 Sync MV55-HT-PM85 is a Machitech product in the CNC Plasma Tables collection.
Product Details
- Work Area: 66” x 66”
- Z-Axis Clearance: 5.5”
- Z-Axis Travel: 6”
- Repeatability: +/- 0.001”
- Description
- Compact, budget-friendly, and powerful perfectly describe the MV 5×5 CNC plasma table. Created for shops that operate in close quarters or businesses in congested cities paying a premium for space, the MV 5×5 CNC plasma table offers the same great plasma option in a smaller frame.
- In fact, the MV-Series is great for all small and mid-level shops in need of a quality CNC plasma table but aren’t operating them on a daily basis. Designed using industrial quality components that are durable and require less maintenance, this series is an economical, easy-to-operate solution backed by MaverickCNC’s superior fit and finish. Furthermore, MaverickCNC provides on-site, turnkey installation and training, ensuring that set-up is simple, performance is reliable, and cuts are exact and consistent. If you’re an ornamental iron company, HVAC shop or a business whose cutting needs are frequent but not daily, then the MV 5×5 CNC plasma table is the Maverick you want by your side.
- Features
- Rails and Gantry 6″ x 6″ extruded aluminum gantry Side rails are bolted on machined surfaces (unitized) Engineered for rigidity and strength
- 6″ x 6″ extruded aluminum gantry
- Side rails are bolted on machined surfaces (unitized)
- Engineered for rigidity and strength
- Fast and Precise Motion Self-cleaning V-groove bearings 1.25’’ pinion gears Cutting postitional accuracy of 0.002″
- Self-cleaning V-groove bearings
- 1.25’’ pinion gears
- Cutting postitional accuracy of 0.002″
- End Trucks Custom built end trucks on each side Protects the drive motor and pinion gear Engineered for strength
- Custom built end trucks on each side
- Protects the drive motor and pinion gear
- Engineered for strength
- Laptop CNC Controller Powerful 15″ i7 laptop on windows 10 Computer stand for easy operator use
- Powerful 15″ i7 laptop on windows 10
- Computer stand for easy operator use
- CAD/CAM/CNC Software Integrated MaverickCNC PRO CAD/CAM/CNC software Powerful and easy to use
- Integrated MaverickCNC PRO CAD/CAM/CNC software
- Powerful and easy to use
- Auto Torch Height Controller Enclosed dual linear slides Rapid responsive sampling over 10,000 times per second
- Enclosed dual linear slides
- Rapid responsive sampling over 10,000 times per second
- Compact unitized construction, custom forklift pockets
- Fully-welded frame, heavy-duty material support configured for both downdraft or water
- 6″ x 6″ precision machined aluminum gantry engineered for maximum stiffness
- 6″ clearance under gantry
- Oversized self-cleaning dual V-groove bearings riding on harden machined V-guide rails
- Dual linear bearings on Z axis for smooth motion
- Powerful 940 oz-in Nema 34 motors with zero backlash drive system
- Automatic torch height controller with magnetic breakaway system
- Arc voltage sampling to follow variations in material
- Powerful laptop controller on computer stand
- Integrated Maverick Pro CAD/CAM/CNC software designed to be user friendly for the novice or the experienced operator
- Complete integration with Hypertherm or Thermal Dynamics plasma cutters
- Laser cut slat brackets with offset slat pattern for increased table rigidity
- Dual side drives with fully enclosed z axis motors and custom end trucks, all axis cable tracks
- 2 days on-site installation and training by MaverickCNC’s certified technicians
- Specifications
- Cutting Speed: 800 ipm
- Rapid Traverse: 1200 ipm
- Drive System X, Y, Z Axis: Rack & Pinion
- Standard Work Surface: Steel Slat
- Dimensions (L x W x H): 103” x 103” x 53”
- Options
- Laser Pointer
- Pneumatic Scriber
- Oxy Fuel
- Manual Bevel Torch Holder
- Remote Pendant
Specifications
- Manufacturer: Machitech
- SKU: MV55-HT-PM85
- Shipping Method: Flatbed
- Weight: 1,800 lb
- Dimensions: 108 × 108 × 60 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
