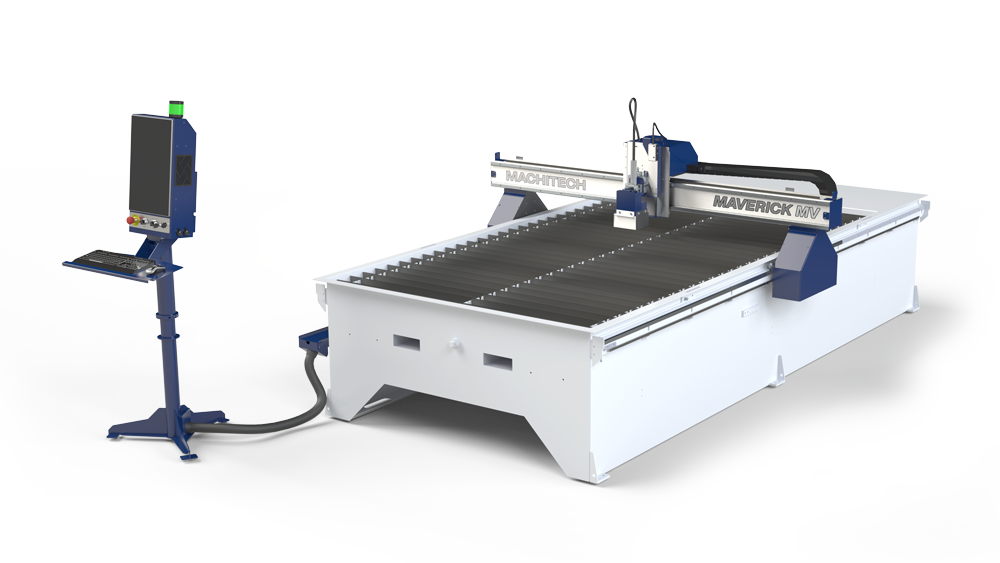

Machitech Maverick CNC MV Series 6′ x 12′ Conventional Air Plasma Table with Hypertherm Powermax Sync 105 MV612-HT-PM105
$34,446.75Current price is: $34,446.75.
- Work Area: 78” x 150”
- Z-Axis Clearance: 5.5”
- Z-Axis Travel: 6”
- Repeatability: +/- 0.001”
Machitech Maverick CNC MV Series 6′ x 12′ Conventional Air Plasma Table with Hypertherm Powermax Sync 105 MV612-HT-PM105 is a Machitech product in the CNC Plasma Tables collection.
Product Details
- Work Area: 78” x 150”
- Z-Axis Clearance: 5.5”
- Z-Axis Travel: 6”
- Repeatability: +/- 0.001”
- Description
- The MV-Series is great for all small and mid-level shops in need of a quality CNC plasma table but aren’t operating them on a daily basis. Designed using industrial quality components that are durable and require less maintenance, this series is an economical, easy-to-operate solution backed by Maverick CNC’s superior fit and finish. Furthermore, Maverick CNC provides on-site, turnkey installation and training, ensuring that set-up is simple, performance is reliable, and cuts are exact and consistent. If you’re an ornamental iron company, HVAC shop or a business whose cutting needs are frequent but not daily, then the MV 6×12 CNC plasma table is the Maverick you want by your side.
- Features
- Rails and Gantry 6″ x 6″ extruded aluminum gantry Side rails are bolted on machined surfaces (unitized) Engineered for rigidity and strength
- 6″ x 6″ extruded aluminum gantry
- Side rails are bolted on machined surfaces (unitized)
- Engineered for rigidity and strength
- Fast and Precise Motion Self-cleaning V-groove bearings 1.25’’ pinion gears Cutting positional accuracy of 0.002″
- Self-cleaning V-groove bearings
- 1.25’’ pinion gears
- Cutting positional accuracy of 0.002″
- End Trucks Custom built end trucks on each side Protects the drive motor and pinion gear Engineered for strength
- Custom built end trucks on each side
- Protects the drive motor and pinion gear
- Engineered for strength
- Auto Torch Height Controller Enclosed dual linear slides Rapid responsive sampling over 10,000 times per second
- Enclosed dual linear slides
- Rapid responsive sampling over 10,000 times per second
- Fully-welded frame, heavy-duty material support configured for both downdraft or water
- 6″ x 6″ precision machined aluminum gantry engineered for maximum stiffness
- Oversized self-cleaning dual V-groove bearings riding on harden machined V-guide rails
- Automatic torch height controller with magnetic breakaway system
- Arc voltage sampling to follow variations in material
- Integrated Maverick Pro CAD/CAM/CNC software designed to be user friendly for the novice or the experienced operator
- Laser cut slat brackets with offset slat pattern for increased table rigidity
- Specifications
- Cutting Speed: 800 ipm
- Rapid Traverse: 1200 ipm
- Drive System X, Y, Z Axis: Rack & Pinion
- Standard Work Surface: Steel Slat
- Dimensions (L x W x H): 187” x 115” x 53”
- Options
- Laser Pointer
- Plate Scribe
- Oxy Fuel
- Manual Bevel Torch Holder
- Remote Pendant
Specifications
- Manufacturer: Machitech
- SKU: MV612-HT-PM105
- Shipping Method: Flatbed
- Weight: 3,000 lb
- Dimensions: 195 × 125 × 65 in
| Weight | 3000.0 lbs |
|---|---|
| Dimensions | 195.0 × 125.0 × 65.0 in |
| Brand | Machitech |
