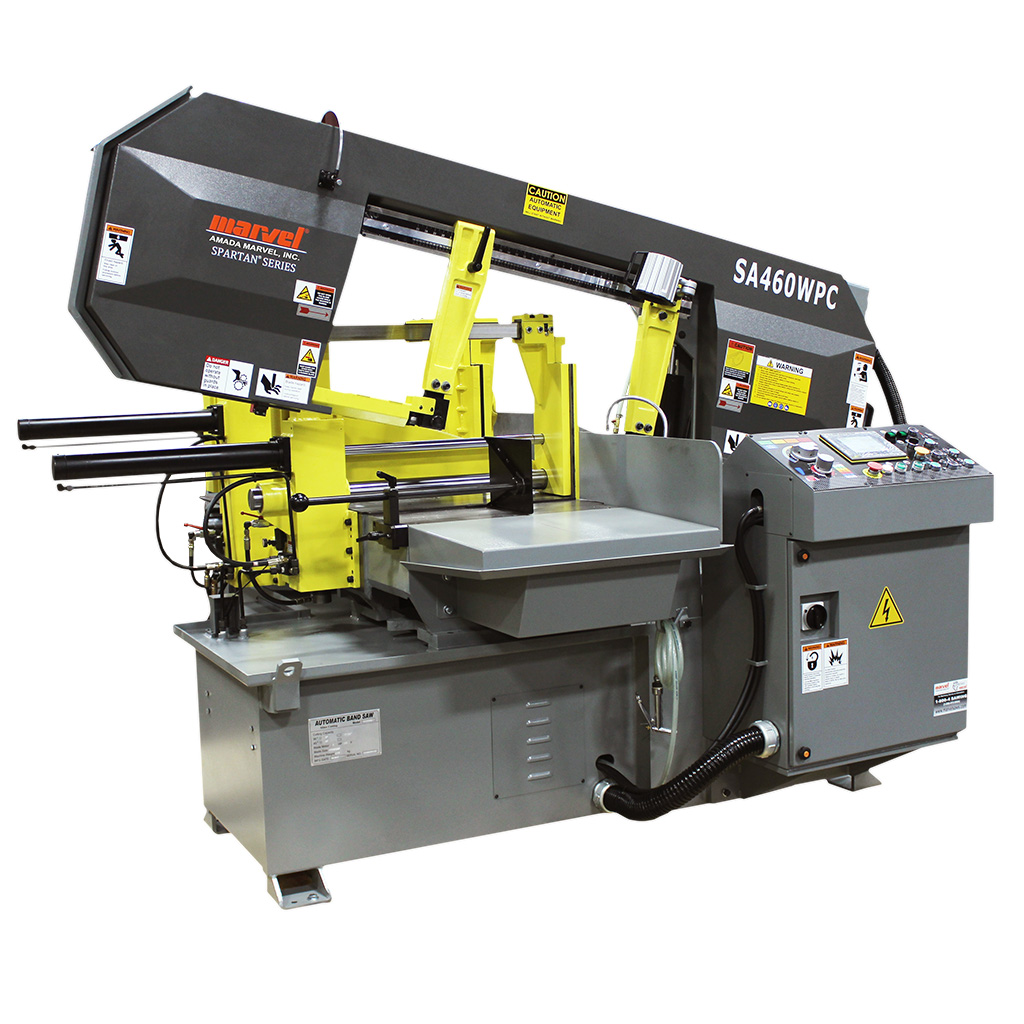

Marvel 5 HP 230V Three Phase Horizontal Mitering Band Saw SA460WPC

Marvel 5 HP 230V Three Phase Horizontal Mitering Band Saw SA460WPC is a Marvel product in the Band Saws collection.

Product Details

• Capacity at 90°: Rectangle 15” x 24”, Round 18”
• Capacity at 45°: Rectangle 15” x 15”, Round 15”
• Programmable Control
• 1.5” Blade
• Specifications and Features
• Blade at 90°: Rectangular – 15” H x 24” W (380 mm x 610 mm), Round – 18” (460 mm), Square – 18” x 18” (460 mm x 460 mm)
• Blade at 45°: Rectangular – 15” H x 15” W (380 mm x 380 mm), Round – 15” (380 mm)
• Mitering: Manually positioned to 45o right, equipped with degree scale.
• Blade: 1.5” x .05” x 17’6” (41 mm x 1.3 mm x 5330 mm)
• Blade Tension: 35,000 PSI. Hydraulically controlled tension provides consistent square cutting accuracy. The motion detector will shut the machine off should the blade break or stall.
• Speed Range: 65 – 330 feet per minute (20 – 101 meters per minute) infinitely variable through an inverter drive and a heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. An electric tachometer assures accurate speed setting.
• Hydraulic Down Feed: Feed rate and down pressure can be controlled independently for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s station.
• Hydraulic Shuttle Feed: Length settings of 0 – 27.6” (700mm) are accomplished with simple programming at the operator’s touch screen. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss. Repeatability is + .005 per index. (Maximum pull weight fully supported on rollers 5,940 LBS).
• PC Programmable Control: Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to ten jobs. Inputs include Part Length from 0 to 393.661” (in inches up to 3 decimal places) (9999 mm) and Number of Pieces to be cut. The Blade Speed is displayed on and set using the touch screen, but is not stored in memory. The Automatic Piece Counter stops each job when the pre-set number of cuts has been made. The control provides the option of running up to 10 jobs consecutively.
• Motors: The Blade Drive: 5 H.P. (3.75 kW). Hydraulic Pump Motor: 1 H.P. (.75 kW). Coolant Pump Voltage: 230-3-60 Volt
• Voltage: 230-3-60 Volt
• Out-of-Stock Switch: The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation.
• Blade Guides: The combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of + .002 per inch (.051 mm) of cut material.
• Chip Brush: Powered from the drive wheel of the saw, the brush changes speed with the blade to assure that chips are being removed from each gullet, improving cutting performance and blade life.
• Full Stroking Hydraulic Vice Jaws: Remnant length is 9-1/2”. Rear Vise: The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts.
• Operator’s Control Panel: Conveniently mounted on the Right hand side of the machine and offers full control of all machine functions such as; Vises, Blade Speed, Saw Frame, Bundle Clamping, Shuttle Advance & Retract, Coolant and Work Light.
• Work Light: Positioned directly over the work area to provide better illumination of the cutting area, the work light can be turned on and off independently from the operator’s control panel.
• Roller Table: Standard equipment includes one freestanding roller table 5’ (1.5 m) long to support incoming stock.
• Packing Size: 108” x 90” x778” W x L x H – (2750 mm x 2270 mm x 1950 mm)
• Machine Weight: 5,700 lbs (2585 kg)
• Crated Machine Weight: 6,000 lbs (2722 kg)
• Pass Line Height: 36.5” (925 mm)
• Options
• Automatic Chip Removal: The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
• Hydraulic Hold-Downs: The nesting fixtures for vertical clamping are designed for high-production multiple cutting. Vertically mounted hydraulic clamps located on each vise jaw apply downward pressure to hold multiple bar work or structural shapes.
• Variable Vise Pressure: Hydraulic clamping pressure to the work holding jaws can be adjusted as required to hold solid or thin wall material.
• Auto Mist Lube: Mist lubricant in addition to standard flood coolant for lubrication.
• Free Standing Roller Table: 2-meter free standing roller table includes aligning guides. Total weight capacity per table is 4,400 LBS (675 Lbs/Ft).

Specifications

• Manufacturer: Marvel
• SKU: SA460WPC
• Shipping Method: LTL Freight
• Weight: 6,000 lb
• Dimensions: 110 × 95 × 78 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
