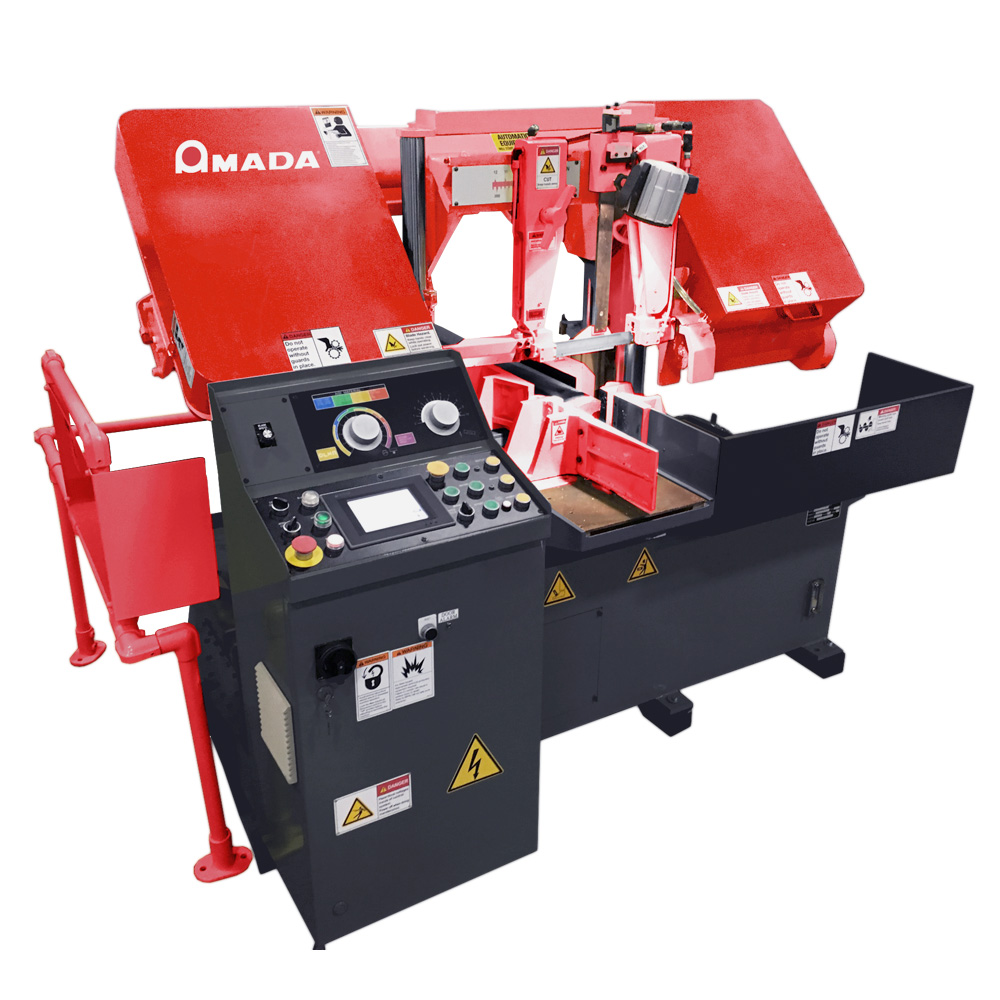

Marvel Amada 5 HP 230V Three Phase Horizontal Post Style Band Saw (PA260MPC) HFA260P

Marvel Amada 5 HP 230V Three Phase Horizontal Post Style Band Saw (PA260MPC) HFA260P is a Marvel product in the Band Saws collection.

Product Details

• Capacity: 12" W x 10.25" H, 10.25" Round
• Blade Speed: 65 – 330 SFPM
• Table Height: 26″

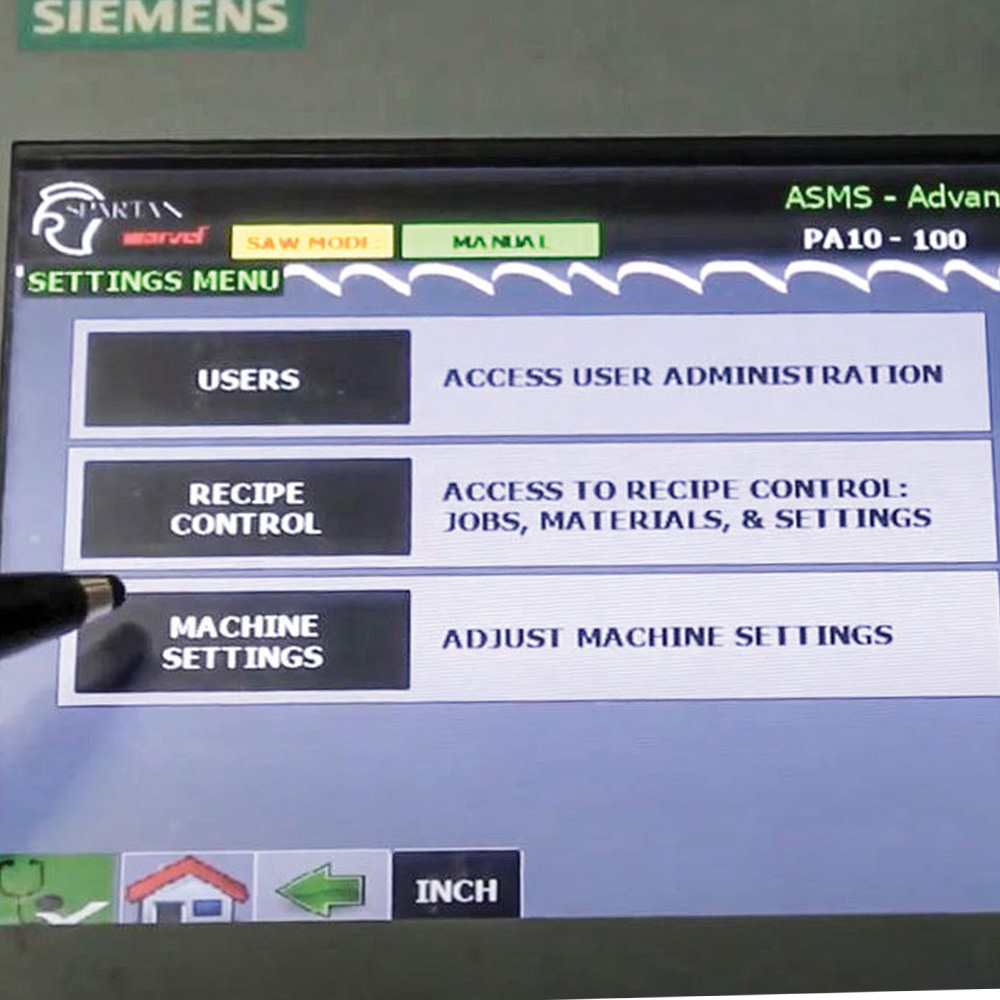

• HMI Touch Screen Control
• Features

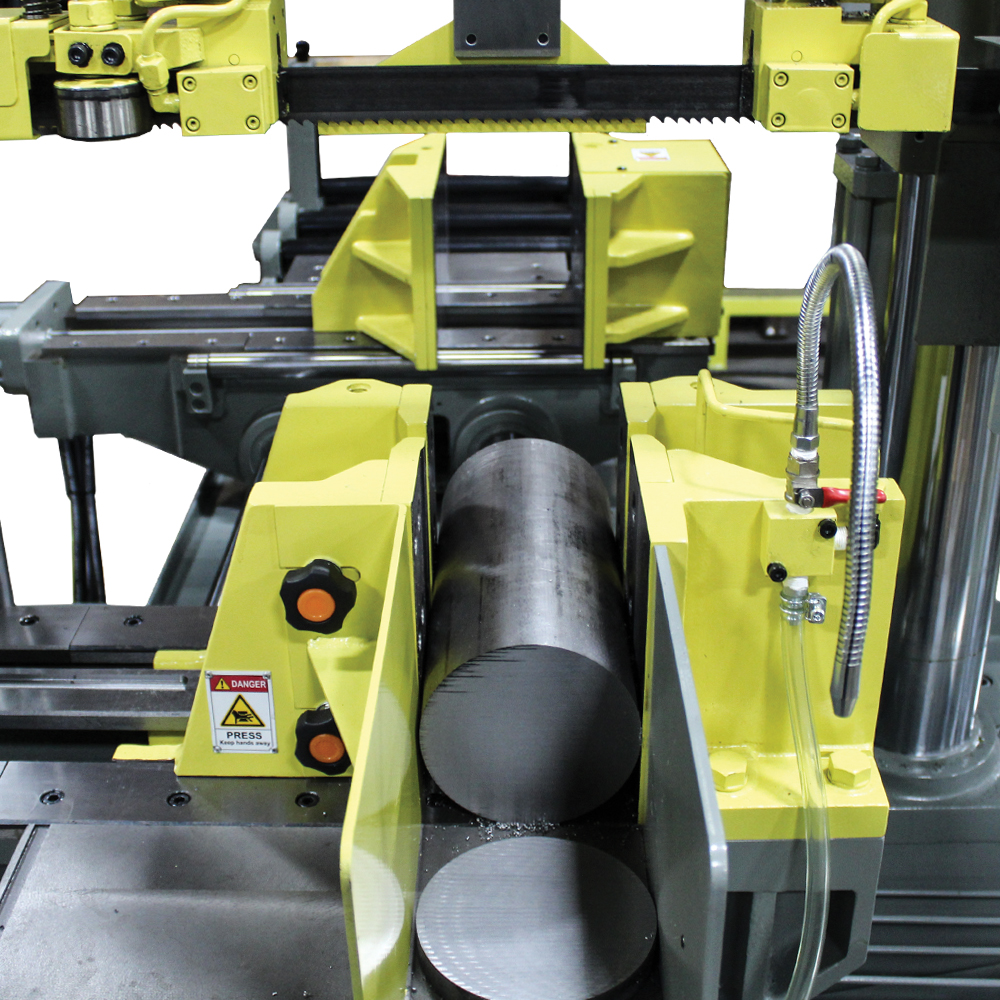

• Split Front Vise
• Automatic Chip Removal
• Bi-Directional Shuttle Vise
• Full Stroking Hydraulic Vises
• Robust Rigid Dual Column Design
• Fully Adjustable Hydraulic Down Feed
• Automatic Height Selection with Fast Approach
• Specifications
• Model: HFA260P
• Cutting Capacity Round (Diameter): 10″ Rectangle (W x H): 10″ x 10.25″
• Round (Diameter): 10″
• Rectangle (W x H): 10″ x 10.25″
• Saw Blade Blade Size (L x T x W): 12′-11″ x 1.34″ x 0.043 Blade Speed: 65 – 330 SFPM Tension Control: Hydraulically Controlled
• Blade Size (L x T x W): 12′-11″ x 1.34″ x 0.043
• Tension Control: Hydraulically Controlled
• Power Requirements Power Supply Voltage: AC230V +- 10%, 3PH, 60Hz, Required at factory voltage setting Cutting Fluid Pump: @@ kVA
• Power Supply Voltage: AC230V +- 10%, 3PH, 60Hz, Required at factory voltage setting
• Cutting Fluid Pump: @@ kVA
• Motors Saw Blade: 5 HP Cutting Fluid Pump: 0.25 HP Hydraulic Pump: 1.0 HP
• Saw Blade: 5 HP
• Cutting Fluid Pump: 0.25 HP
• Hydraulic Pump: 1.0 HP
• Blade Control Top Limit Setting: Automatic Setting with Fast Approach Feeler Cutting Control: Hydraulic Pressure & Flow Control Valve
• Top Limit Setting: Automatic Setting with Fast Approach Feeler
• Cutting Control: Hydraulic Pressure & Flow Control Valve
• Fluid Capacities Coolant: 22.5 gal Hydraulic Fluid: 23.8 gal Hydraulic Pressure Setting: 427 psi
• Coolant: 22.5 gal
• Hydraulic Fluid: 23.8 gal
• Hydraulic Pressure Setting: 427 psi
• Pressure Settings Hydraulic: 427 PSI Blade Tension: 30,000 – 32,000 Gauge Pressure: 171 – 213 PSI
• Hydraulic: 427 PSI
• Blade Tension: 30,000 – 32,000
• Gauge Pressure: 171 – 213 PSI
• Material Index Index Mechanism: Shuttle Vise Stroke: 16″ Length: 0.39″ – 999″ # of Input Block: 1-100 # of Input Station: 1-20 # of Cut-Off Pieces: 1-999 Remnant Length: 2.75″ plus length of parts
• Index Mechanism: Shuttle Vise
• Stroke: 16″
• Length: 0.39″ – 999″
• # of Input Block: 1-100
• # of Input Station: 1-20
• # of Cut-Off Pieces: 1-999
• Remnant Length: 2.75″ plus length of parts
• Machine Dimensions (W x L x H) Head Up Position: 86.9″ x 81.3″ x 57.7″ Head Down Position: 86.9″ x 81.3″ x 57.7″
• Head Up Position: 86.9″ x 81.3″ x 57.7″
• Head Down Position: 86.9″ x 81.3″ x 57.7″
• Chip Disposal: Chip Conveyor
• Machine Weight: 3860 lbs
• Options
• Hydraulic Hold-Downs: The nesting fixtures for vertical clamping are designed for high-production multiple cutting. Vertically mounted hydraulic clamps located on each vise jaw apply downward pressure to hold multiple bar work or structural shapes.
• Variable Vise Pressure: Hydraulic clamping pressure to the work holding jaws can be adjusted as required to hold solid or thin wall material, allowing the piece to be held securely and without distortion.
• Free Standing Control Console: Replaces standard control console mounted to machine base with a free-standing pedestal and 6’ flexible electrical and hydraulic lines.
• First Section Roller Table: Table is constructed from 4” x 5.4 lb. Channel with five 2.5” diameter ball bearing rollers on 12” centers.
• Extension Roller Table: Table is constructed from 4” x 5.4 lb. Channel with five 2.5” diameter ball bearing rollers on 12” centers.
• Coolant Pan: Fitting roller conveyors, the coolant pan collects and returns coolant back to machine. Included is the pan, V-trough, and hangers

Specifications

• Manufacturer: Marvel
• SKU: HFA260P
• Shipping Method: LTL Freight
• Weight: 3,860 lb
• Dimensions: 90 × 85 × 70 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
