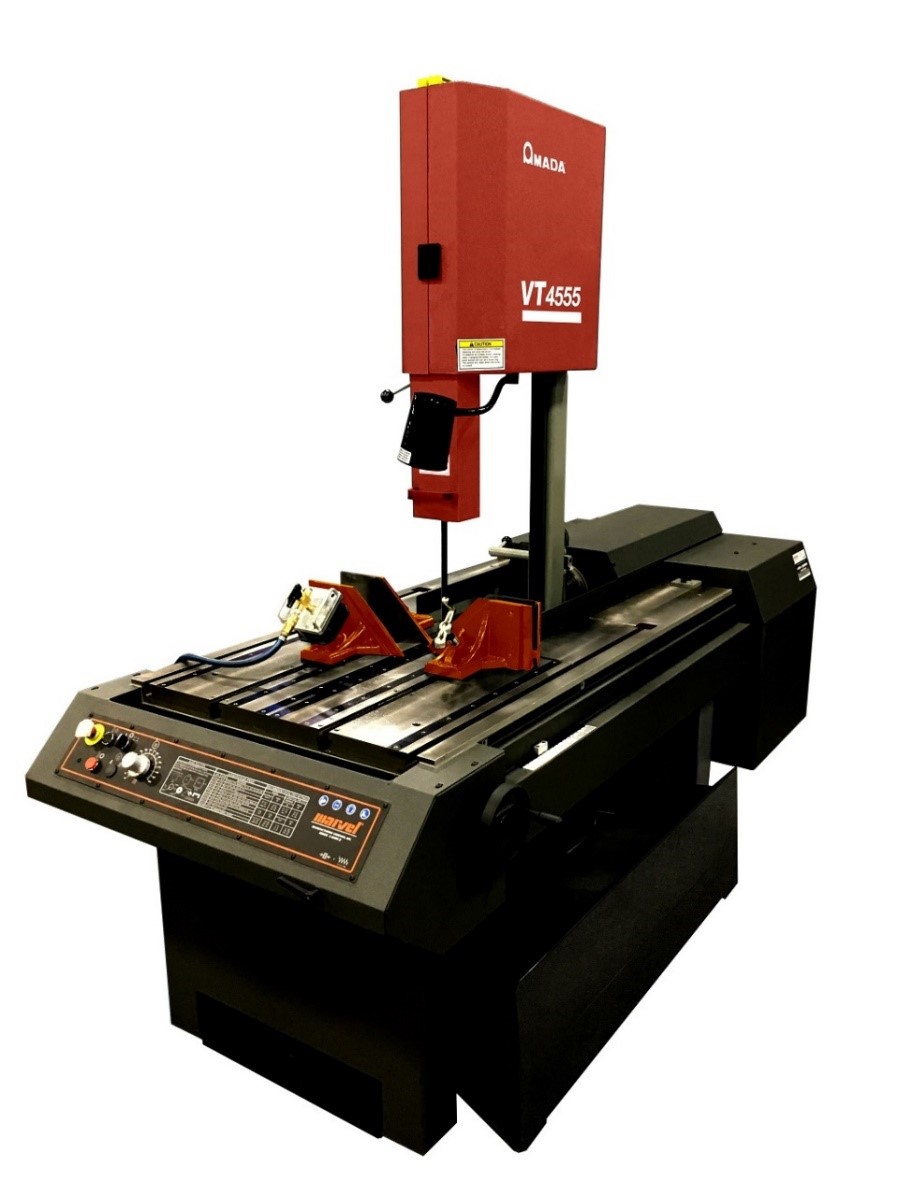

Marvel Amada 5 HP 230V Three Phase Vertical Tilt-Frame Band Saw 8-Mark-II VT4555

Marvel Amada 5 HP 230V Three Phase Vertical Tilt-Frame Band Saw 8-Mark-II VT4555 is a Marvel product in the Band Saws collection.

Product Details

• Cast Iron Construction
• Large Adaptable Work Table
• Capacity at 90°: 18" x 22"
• Capacity at 45°: 18" x 12.75"
• Features
• Controls – IEC fused disconnect switch and magnetic motor starters, with overload and low-voltage protection. Disconnect is NFPA79 compliant. DC Power supply provides low voltage control (24 Volts) to all push buttons at operator’s control panel and machine lighting circuits. PLC control and components mounted in moisture proof NEMA 12 compartment. Electrical Panel is UL labeled.
• Mitered Cutting – Column and blade tilt right and left of vertical; work always stationary. Manual tilt standard with Sure-Lock and Built-in protractor. Electric Power tilt optional.
• Coolant System – Built In with flood system, available with added optional drop lubrication system (Option Codes ML1 & ML2). Controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons (79 liters).
• Specifications
• Speed Range 50: 450 fpm (15 – 137 m/min) infinitely variable speed drive system.
• Front-Mounted Speed Control: Allows blade speed to be adjusted from operator’s control station.
• Feed Range: 0 – 140 lbs. (64 kgf) infinitely variable direct reading scale balance beam.
• T-Slotted Work Table Work area: 24.25” x 33” (616 mm x 838 mm); table height 34.5” (876 mm); four machined T-slots accept .625” (15.5 mm) T-Bolts.
• Miter Cutting: Column and blade tilt up to 45° right and left of vertical; work always stationary. Built-in protractor.
• Quick-Action Vise: Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide.
• Saw Feed Stops: Adjustable stops can be pre-set to stop advance of the saw head and return of blade and to stop motor at any location within the 18” (457 mm) travel of the blade.
• Coolant System: Built in with Flood system, available with added optional drop lubrication system. (Requires compressed air connection – Option Code ML2). Controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons (79 liters).
• Flushing Hose: Washes chips from hard-to-get-at places reducing clean-up time.
• Power Chip Brush: Together with blade wipers and flood coolant keep blade teeth free of chips.
• Carbide Guide System: Guides are stationary and can be rotated to present new guiding surface to the blade. Upper and lower guides have preloaded carbide-faced back-up blocks to support back edge of the blade.
• Blade: 14” 6 (4420 mm) long x 1” (25 mm) wide, .035” (89 mm) thick. One Welded-Edge Band Blade is
• furnished with each machine.
• Motors: Main; 5 H.P. (3.75 kW), 1800 RPM, totally enclosed fan cooled. Coolant Pump; 1/8 H.P. (.1 kW) totally enclosed motor-built-in integrally.
• Voltage: 230-volt, 3-phase.
• Controls: IEC fused disconnect switch and magnetic motor starters, with overload and low voltage protection. Disconnect is NFPA79 compliant. Transformer provides low voltage control (120 Volts) to all push buttons at operator’s control panel and machine lighting circuits. Electrical and control components mounted in a NEMA 12 compartment. Electrical Panel is UL labeled #E56388.
• Options
• M6: HIGH COLUMN
• 8SP01337: LASER LIGHT
• DRO: DIGITAL TILT READOUT
• M3M: POWERED COLUMN TILT
• E4: SECOND STANDARD VISE
• ML2: MIST LUBE- AUTOMATIC
• M9A: VARIABLE VISE PRESSURE
• 8/F055: DEAD ROLLER CONVEYOR
• E14: AIR POWERED VISE

Specifications

• Manufacturer: Marvel
• SKU: VT4555
• Shipping Method: Flatbed
• Weight: 2,700 lb
• Dimensions: 101 × 53 × 89 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
