Marvel Amada Three Phase Spartan Series 66 Ton Heavy Duty Ironworker MSIW66S

Marvel Amada Three Phase Spartan Series 66 Ton Heavy Duty Ironworker MSIW66S is a Marvel product in the Ironworkers collection.

Product Details

• 66 Ton Capacity
• 7-1/2 HP Motor
• 8” Throat

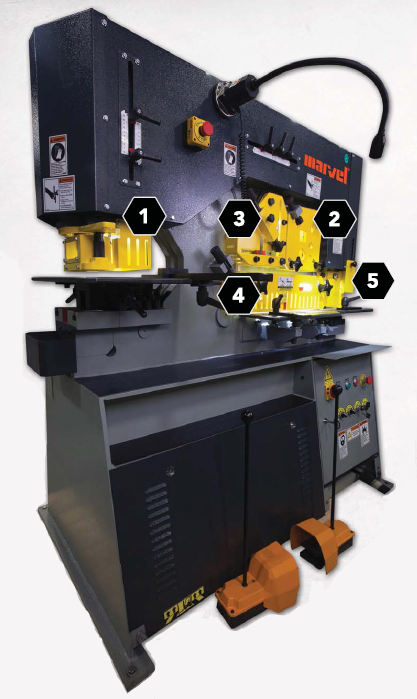

• 5 Work Stations
• Work Station Features

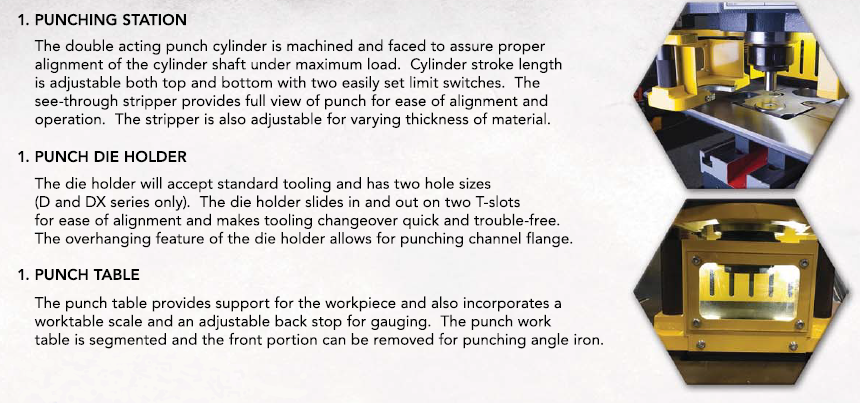

• PUNCHING STATION – The punch cylinder is machined and faced to assure proper alignment of the cylinder shaft. Cylinder stroke length is adjustable both top and bottom with two easily set limit switches. The see-through stripper provides a full view of the punch for ease of alignment and operation. The stripper is also adjustable for varying thickness of material. The various machines punch from 1/8" to 2" in diameter. Punching from 2-1/16" to 4" is achievable with usage of the oversize attachment feature. Punches and dies are easily interchangeable. Both round and shaped tools can be used in the machine.
• DIE HOLDER – The die holder will accept standard tooling and has two hole sizes (D and DX series only). The die holder slides in and out on two T-slots for ease of alignment and makes tooling changeover quick and trouble-free. The overhanging feature of the die holder allows for punching channel flange
• PUNCH TABLE – The punch table provides support for the workpiece and also incorporates a worktable scale and an adjustable back stop for gauging. The punch work table is segmented and the front portion can be removed for punching angle iron and channel legs.
• BAR SHEARING STATION – The round and square bar station allows for shearing various sizes. T-bar and channel shear blades are also available for this station. With the bar shearing feature, rounds and squares can be cut from 1/8" to 2-1/8" (Larger sized holes are available on larger machines only). By changing the blades you can also cut T-bars, H-beams, and channel iron.
• ANGLE SHEAR – The angle shear allows for both straight and miter cuts of varying sizes of angle material without a drop-out slug. The two wear guides assure the squareness of every cut, while the adjustable holdown keeps distortion to a minimum. The angle shearing feature allows the option to cut angle iron at 90 degrees, and smaller angle iron at 45 degrees. This feature can be done with both the top and bottom leg.
• FLAT BAR SHEAR – The flat bar shear station has a cast iron support table with guides for accurate positioning and has scribe marks at 90 and 45 degrees for miter cuts. With the adjustable holddown and an upper blade with only a 6 degree rake angle, deformation is held to a minimum. The lower blade has four useable sides. A special feature of the flat bar shear is its variable degree miter-cutting on the bottom leg of the angle iron. Complete daily flat bar shearing with flat and precise results, complimented by the unique anti-distortion blade.
• NOTCHING STATION – The notcher is ideal for notching on either flat bars or angles. The gauging table has adjustable stops for precise positioning and the safety guard is electrically interlocked for maximum safety and visibility. Notching needs are met with a rectangular notching tool, standard on each machine. Marvel can provide a V-Notching tools for a variety of desired applications.
• Standard Equipment
• FIVE (5) SETS OF PUNCHES AND DIES: Punches: 9/16”, 11/16”, 13/16”, 15/16”, 1-1/16” Dies: 19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”
• Punches: 9/16”, 11/16”, 13/16”, 15/16”, 1-1/16”
• Dies: 19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”
• CPD SERIES: 26 punch, 62 die
• MAGNETIC BASE WORK LIGHT
• ADJUSTABLE ELECTRIC BACK GAUGE (36”)
• 24 VOLT DC CONTROL VOLTAGE
• SCRAP BOXES AT PUNCHING & NOTCHING STATIONS
• ADJUSTABLE STROKE DEPTH AT PUNCH
• TWO (2) FULL-CONTROL FOOT PEDALS
• TWO (2) HOLE DIE HOLDERS
• TWO (2) PIECE GAUGING TABLE AT PUNCH STATION
• KEYED PUNCH HOLDER FOR SHAPED TOOLING
• STANDARD VOLTAGE: 230 Volt, 3 Phase, 60Hz
• Specifications
• PUNCHING PUNCH PRESSURE: 66 tons PUNCH WORK TABLE: Includes back gauge and adjustable stops. ADJUSTABLE SEE-THROUGH PUNCH STRIPPER: For fast and easy setup. With electronic safety interlock. DIE HOLDER: Adjustable for quick punch and die alignment. STANDARD TOOLING: 1-1/4" x 5/8" OVERSIZE TOOLING: 1-1/2" x 3/8" THROAT DEPTH: 9-7/16" STROKE LENGTH: 1-5/32" CYCLES PER MINUTE IN 3/4": 22 PUNCHING STATION WORK HEIGHT: 41-5/16"
• PUNCH PRESSURE: 66 tons
• PUNCH WORK TABLE: Includes back gauge and adjustable stops.
• ADJUSTABLE SEE-THROUGH PUNCH STRIPPER: For fast and easy setup. With electronic safety interlock.
• DIE HOLDER: Adjustable for quick punch and die alignment.
• STANDARD TOOLING: 1-1/4" x 5/8"
• OVERSIZE TOOLING: 1-1/2" x 3/8"
• THROAT DEPTH: 9-7/16"
• STROKE LENGTH: 1-5/32"
• CYCLES PER MINUTE IN 3/4": 22
• PUNCHING STATION WORK HEIGHT: 41-5/16"
• FLAT BAR SHEARING FLAT BAR SHEAR CAPACITY: 12" x 9/16" LOWER BLADE: Four usable edges SUPPORT TABLE: Includes guides for accurate positioning and indicator lines at 30, 45 and 90 degrees left and right. UPPER SHEAR BLADE: Provides for minimum distortion BLADE LENGTH: 13-13/16" FLAT BAR SHEAR WORK HEIGHT: 31-7/8"
• FLAT BAR SHEAR CAPACITY: 12" x 9/16"
• LOWER BLADE: Four usable edges
• SUPPORT TABLE: Includes guides for accurate positioning and indicator lines at 30, 45 and 90 degrees left and right.
• UPPER SHEAR BLADE: Provides for minimum distortion
• BLADE LENGTH: 13-13/16"
• FLAT BAR SHEAR WORK HEIGHT: 31-7/8"
• ANGLE SHEARING MAX. CAPACITY – 90 DEGREES: 4" x 4" x 3/8" SHEAR BLADES: Four usable edges. ANGLE SHEAR WORK HEIGHT: 45-1/2"
• MAX. CAPACITY – 90 DEGREES: 4" x 4" x 3/8"
• SHEAR BLADES: Four usable edges.
• ANGLE SHEAR WORK HEIGHT: 45-1/2"
• BAR SHEARING MAX. ROUND BAR CAPACITY: 1-1/2" MAX. SQUARE BAR CAPACITY: 1-3/8" FOUR CAVITY ROUND AND SQUARE BAR SHEAR SIZES: Round – 1/8", 1 1/2" Square – 5/8", 1 1/2" CHANNEL SHEAR MAX: 3" H-BEAM SHEAR MAX: 3"
• MAX. ROUND BAR CAPACITY: 1-1/2"
• MAX. SQUARE BAR CAPACITY: 1-3/8"
• FOUR CAVITY ROUND AND SQUARE BAR SHEAR SIZES: Round – 1/8", 1 1/2" Square – 5/8", 1 1/2"
• Round – 1/8", 1 1/2"
• Square – 5/8", 1 1/2"
• CHANNEL SHEAR MAX: 3"
• H-BEAM SHEAR MAX: 3"
• OTHER STANDARD EQUIPMENT
• FIVE SETS OF PUNCHES AND DIES: Punches: 9/16", 11/16", 13/16", 15/16", 1-1/16" Dies: 19/32", 23/32", 27/32", 31/32", 1-3/32".
• CPD SERIES: 20 punch, 55 die.
• MACHINE SHIPPING WEIGHT: 2,900 lbs.
• MACHINE DIMENSIONS: 47" L x 36" W 68" H
• Options
• ELECTRIC BACK GAUGE: 6 ft. (in place of standard 3 ft.)
• CHANNEL WEB DIE HOLDER (CPD SERIES 55 DIE): Used with 3” channel and larger
• CHANNEL SHEAR: 3” x 4.1 lb. per foot
• 230 to 460 Volt Change Kit

Specifications

• Manufacturer: Marvel
• SKU: MSIW66S
• Shipping Method: Flatbed
• Weight: 3,300 lb
• Dimensions: 47 × 39 × 70 in
• Warranty: 1 Year (Parts)
