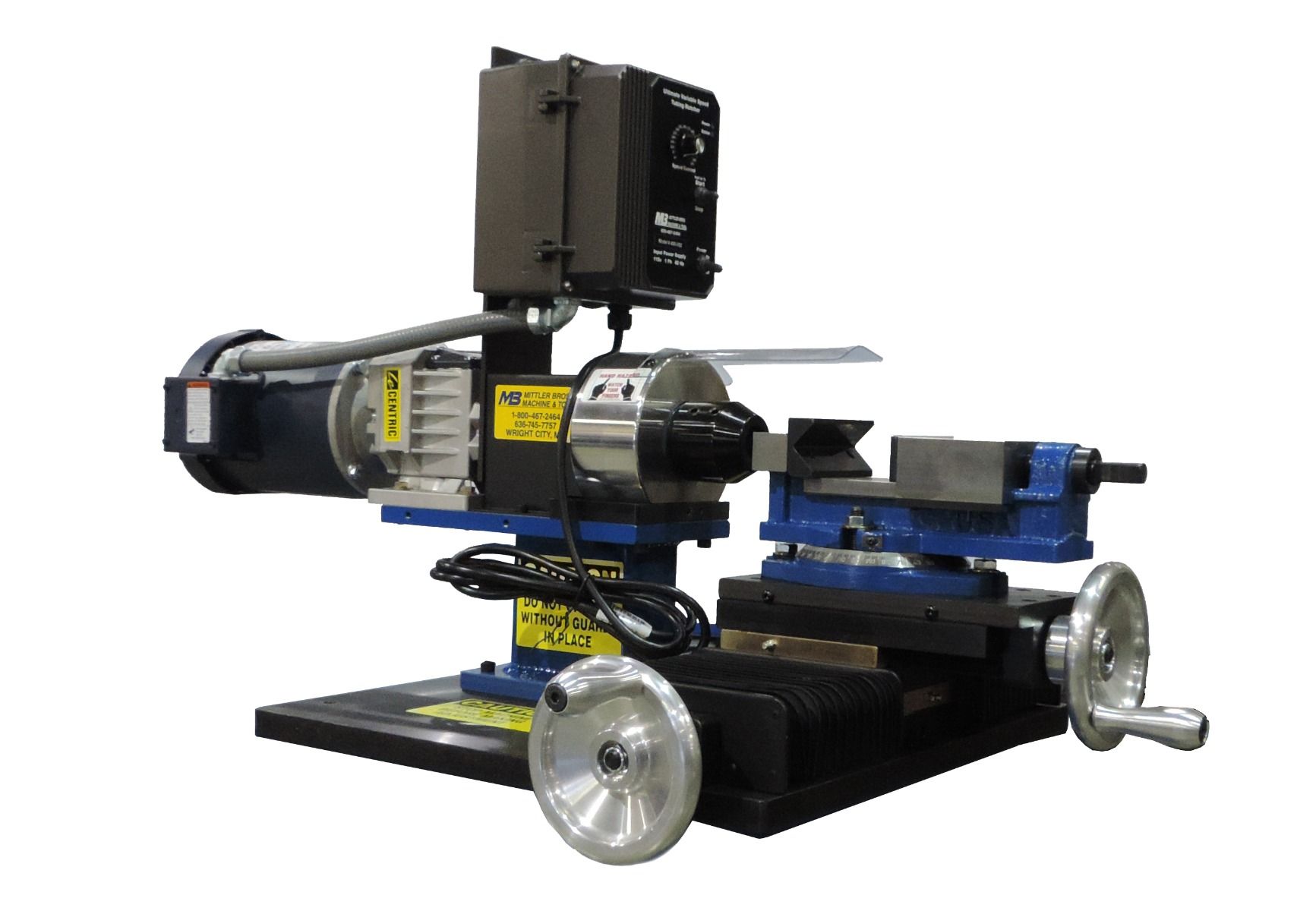

Mittler Bros Ultimate Variable Speed Notcher with Upgraded Vise Double Sided 400-VSU2
$3,647.50Current price is: $3,647.50.
- Upgraded Vise Capacity 3/4" to 2-1/2" Tubing
- Upgraded Vise
- Swivel Vise with 1° Increments
- 75 to 250rpm Adjustable Cutter Speed
Mittler Bros Ultimate Variable Speed Notcher with Upgraded Vise Double Sided 400-VSU2 is a Mittler Bros product in the Notchers collection.
Product Details
- Upgraded Vise Capacity 3/4" to 2-1/2" Tubing
- Upgraded Vise
- Swivel Vise with 1° Increments
- 75 to 250rpm Adjustable Cutter Speed
- Description

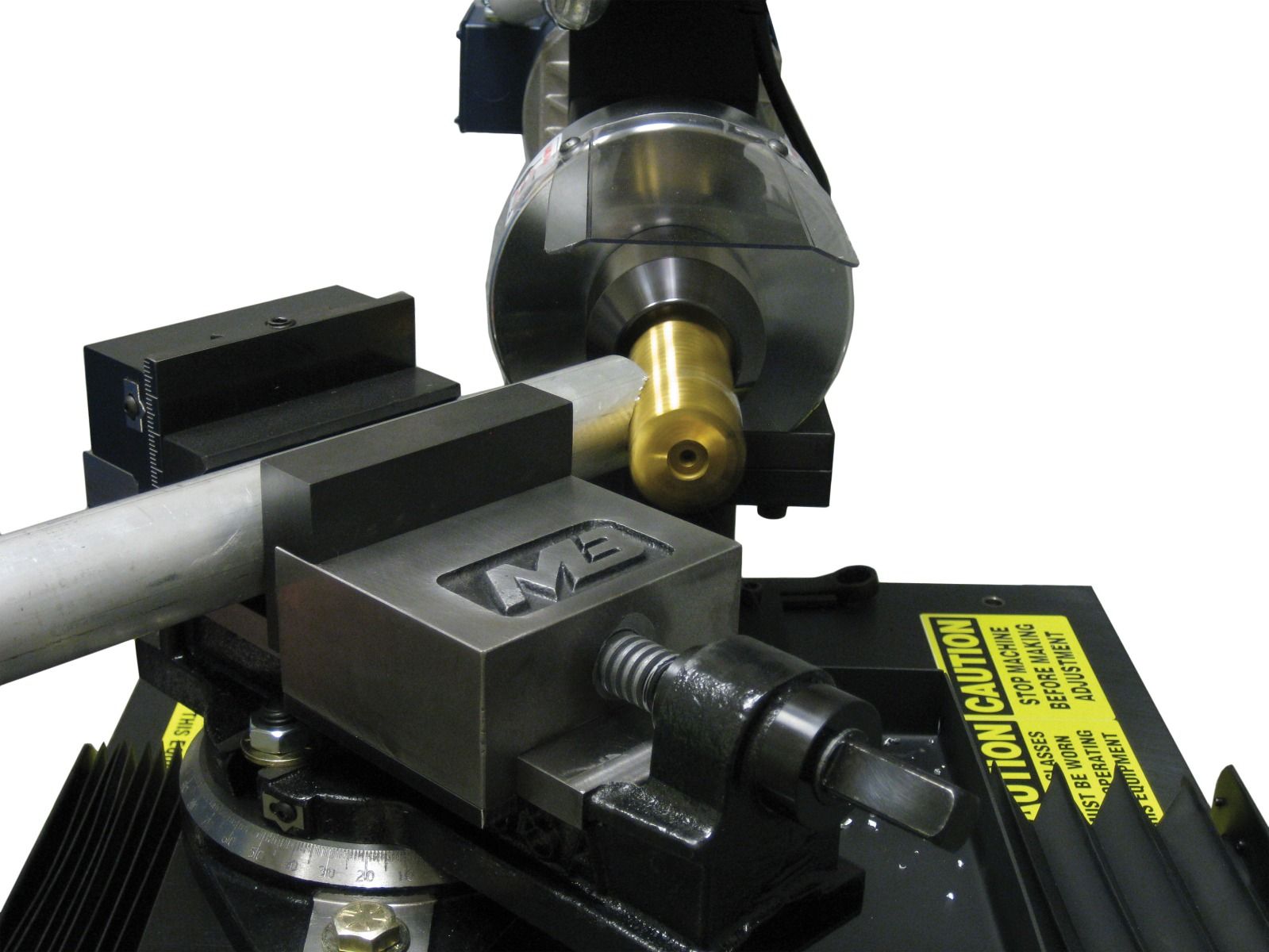

- A Wider Table Design Allows Vise to Travel Further, so Cutting can be Accomplished on Both Sides of the End Mill. This Design Allows the Notching of those otherwise “Impossible Pieces”.
- Features
- Larger V-Block Vise
- Recommended for Pipe Notching
- Use Fast Speeds for Thin Walled Tube
- Use Slow Speeds for Large Diameter, Thick Walled Tube
- Mill Design Allows Easy Metal Removal
- V-Block Design Means Quick Setup Time
- Makes a Perfect Tig Weld Fit
- No Coolant Needed
- No Dust or Excessive Noise
- Specifications
- Max Diameter 2-1/2" OD Upgraded Vise
- 1-1/2 HP AC Motor 115, 208, 230 Volts / 15 Amp 1 Phase 50/60 Hertz
Specifications
- Manufacturer: Mittler Bros
- SKU: 400-VSU2
- Shipping Method: LTL Freight
- Weight: 460 lb
- Dimensions: 48 × 35 × 38 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 460.0 lbs |
|---|---|
| Dimensions | 48.0 × 35.0 × 38.0 in |
| Brand | Mittler Bros |
