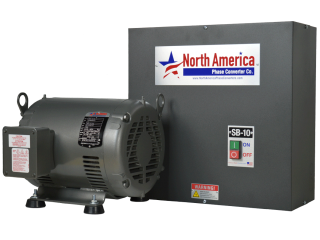

North America Phase Converter SB-25
$1,597.50Current price is: $1,597.50.
- Horse Power (HP) 25
- Generator Type ODP
- Made by Baldor Electric USA
- High Current Protective Coils
North America Phase Converter SB-25 is a North America Phase Converters product in the Phase Converters collection.
Product Details
- Horse Power (HP) 25
- Generator Type ODP
- Made by Baldor Electric USA
- High Current Protective Coils
- Description
- Smart-Boost™ Digital Controller
- Motor Starter with Start/Stop Switch
- Output Power Failure Protection
- Power "ON" Indicator Light
- Easy Installation
- Large Wiring Compartment
- Power Factor Corrected
- Made In the USA
- Features
- Custom Made Phase Converter Generators
- High Speed/High Efficiency Design
- Low Impedance/Delta Design
- Custom Copper Windings and Rotor
- Corrosion Resistant Paint
- Vacuum Pressure Impregnation for all Windings
- Shielded Windings
- Specifications
- Kilo-watt (kW) 18.6
- Frequency (Hz) 60
- Enclosure Type NEMA 1 (Indoor)
- Generator Frame 256
- Enclosure (H X W X D) 24" X 18" X 8"
- Idler (Approx.) Length X Dia. 17" X 11.5"
- Approx. Total Shipping Weight 264 lbs. (ODP)
- Smart-Boost™ Model and Sizing Chart
- Rotary Converter HP: Motor Loads (Horsepower) | CNC, Resistive & Inductive Loads | Smart-Boost™ Rotary Converter Model
- Easy: Med | Hard | Very Hard | Total Amps | Total kVA | Total kW | Spindle HP
- 3: 3 | 3 | 2 | 1.5 | N/A | N/A | N/A | N/A | SB-3
- 5: 5 | 5 | 3 | 2 | N/A | N/A | N/A | N/A | SB-5
- 7.5: 7.5 | 7.5 | 5 | 3 | 12 | 5 | 2.5 | 3.5 | SB-7
- 10: 10 | 10 | 6 | 5 | 16 | 6 | 3.7 | 5 | SB-10
- 15: 15 | 15 | 7.5 | 7.5 | 25 | 8 | 5.6 | 7.5 | SB-15
- 20: 20 | 20 | 12 | 10 | 32 | 10 | 7.7 | 10 | SB-20
- 25: 25 | 25 | 15 | 12 | 40 | 12 | 9.5 | 12 | SB-25
- 30: 30 | 30 | 20 | 15 | 49 | 21 | 11.8 | 15 | SB-30
- 40: 40 | 40 | 25 | 20 | 61 | 25 | 15.5 | 20 | SB-40
- 50: 50 | 50 | 30 | 25 | 76 | 30 | 21.5 | 25 | SB-50
- 60: 60 | 60 | 40 | 30 | 84 | 34 | 26.5 | 30 | SB-60
Specifications
- Manufacturer: North America Phase Converters
- SKU: SB-25
- Shipping Method: LTL Freight
- Weight: 264 lb
| Weight | 264.0 lbs |
|---|---|
| Brand | North America Phase Converters |
