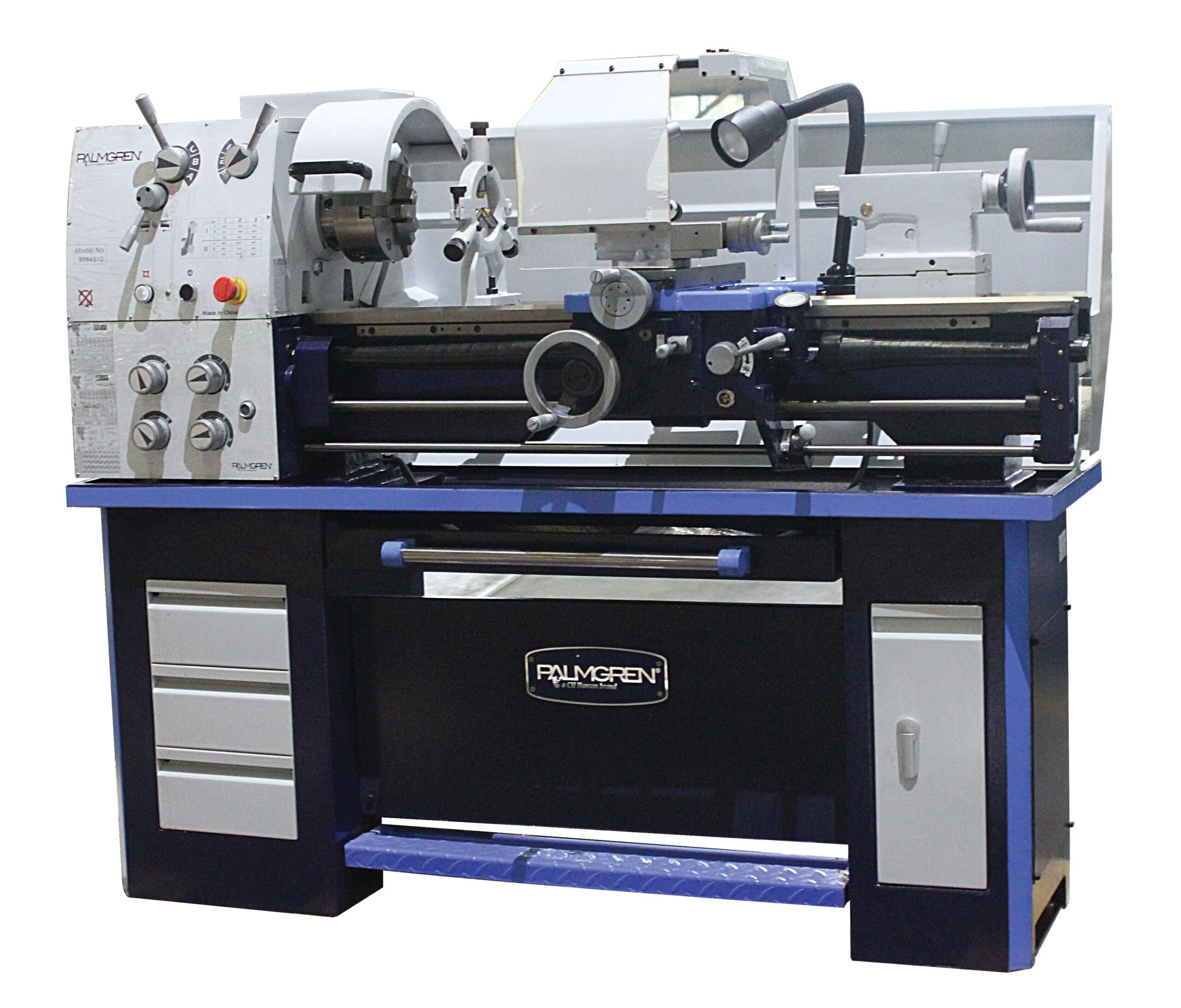

Palmgren 12” x 36” 2 HP Engine Lathe 9684510
$9,207.90Current price is: $9,207.90.
- Motor: 2HP – 115/230V – 1PH – 60Hz
- Distance Between Centers: 36"
- Spindle Bore: 1-1/2"
- Number of Spindle Speeds: 18
Palmgren 12” x 36” 2 HP Engine Lathe 9684510 is a Palmgren product in the Lathes collection.
Product Details
- Motor: 2HP – 115/230V – 1PH – 60Hz
- Distance Between Centers: 36"
- Spindle Bore: 1-1/2"
- Number of Spindle Speeds: 18
- Description
- Palmgren's 12" model engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast construction, smooth power transmission with helical gears, hardened and ground ways all designed to give you years of trouble-free, precise turning. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops and maintenance shops.
- Standard Equipment
- 3 & 4 Jaw Chucks
- Splash Guards
- Chuck and Tool Post Safety Guard
- MT3 Live Center
- Inch & Metric Gears for Threading
- Steady Rest
- Follow Rest
- Work Light
- Specifications
- Bed Width: 7-1/4"
- Carriage Travel: 31"
- Compound Travel: 3-11/32"
- Country of Origin: CN
- Cross Slide Travel: 6-3/8"
- Lathes Type: Gear Head
- Longitudinal Feed Rates: 0.002 – 0.055
- Model Number: D320x920
- Motor HP: 2
- Overall Dimensions (LxWxH): 66" x 30" x 56"
- Phase: Single
- Spindle seat: Camlock ASA D1-4
- Swing Over Bed: 12"
- Tailstock Taper: MT 3
- Tailstock Travel: 3-15/16"
- Thread Range (In.): 4 to 56
- Thread Range (mm): 0.4 – 7
- Voltage: 115/230
- Warranty: 3 Year
- UPC: 726896845104
- Unit of Measure: Each
- Product Height (in): 52
- Product Length (in): 66
- Product Width (in): 30
- Product Weight (lbs): 1245
Specifications
- Manufacturer: Palmgren
- SKU: 9684510
- UPC: 726896845104
- Shipping Method: LTL Freight
- Weight: 1,298 lb
- Dimensions: 66 × 30 × 52 in
- Country of Origin: China
- Warranty: 3 Years (Parts)
| Weight | 1298.0 lbs |
|---|---|
| Dimensions | 66.0 × 30.0 × 52.0 in |
| Brand | Palmgren |
