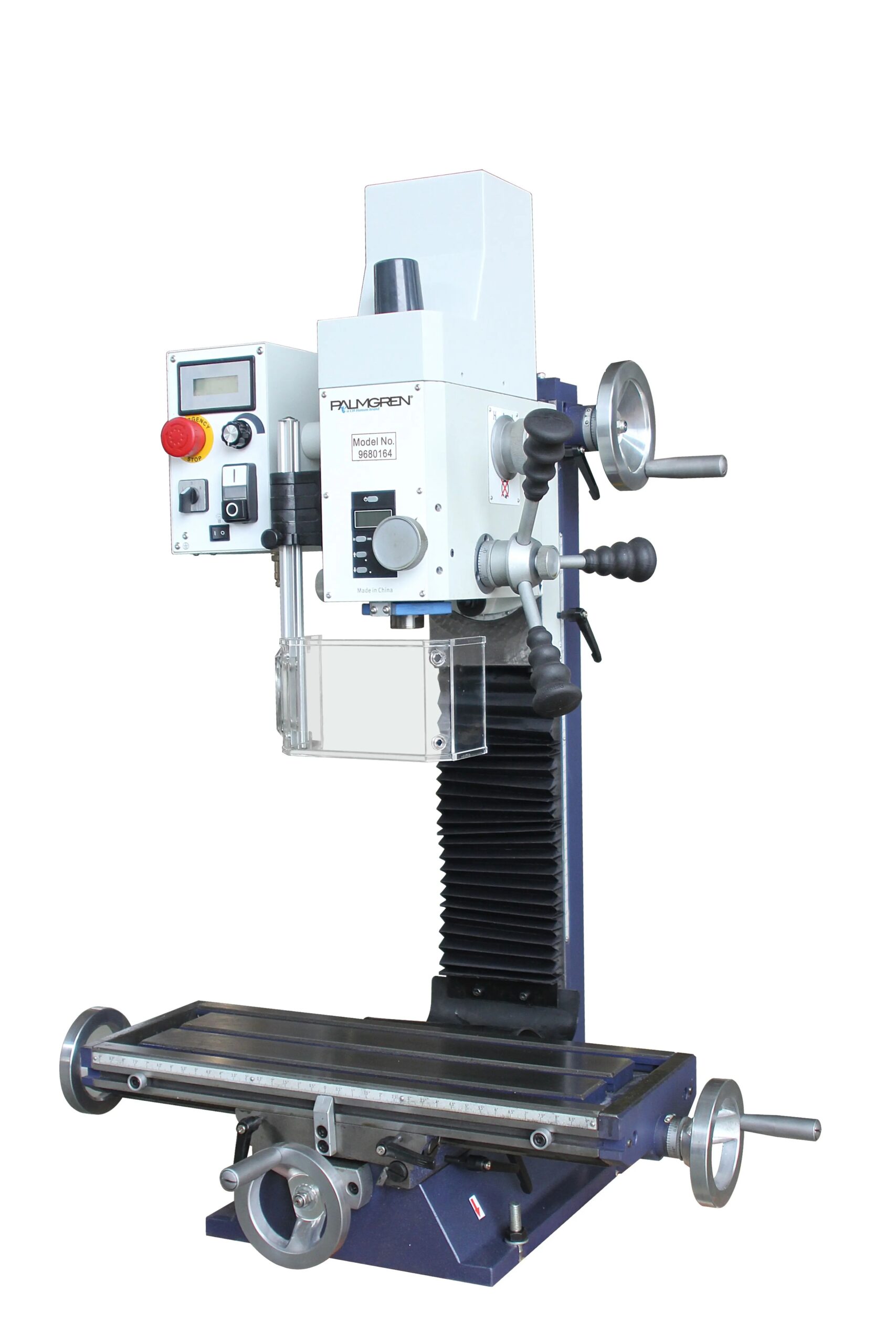

Palmgren 14” Variable Speed Gear Head Milling Machine 9680164

Palmgren 14” Variable Speed Gear Head Milling Machine 9680164 is a Palmgren product in the Milling Machines collection.

Product Details

• Motor: 1.20HP / 115V / 1PH
• X Axis Travel: 280 mm / 11.023 in
• Y Axis Travel: 175 mm / 6.890 in
• Drilling Capacity in Cast Iron: max. Ø 16 mm / 5/8 in
• Description
• Palmgren's 14" gear head milling machine delivers the precision, power and versatility to handle a wide range of machining operations normally performed in much larger and more expensive milling machines. Ideal for milling, drilling, slotting, engraving, boring, tapping and angle machining operations in tool rooms, pattern shops, mold and die shops, job shops, fabrication shops and maintenance departments.
• The all gear drive transmission delivers full power at any speed driving tools at nearly 100% of the available horsepower. These mills are equipped with a high performance brushless DC motor with permanent current control and the latest technology variable speed inverter providing the broadest range of spindle speeds to fit any application. A rigid box column with hardened, ground and handscraped dovetail ways provide accurate head positioning with minimum deflection and vibration. The milling head can be tilted right or left up to 90 degrees. Precision machine tools spindles equipped with taper roller bearings and a spindle concentricity of .0005" at the spindle nose. The cross slide table is precision ground with t-slots, adjustable limit stops, scale and three metal adjusting hand wheels.
• Features
• Halogen work light
• Depth stop
• Digital speed read out
• Digital readout depth gauge
• Interlocking spindle safety guard
• Draw bar
• Specifications
• Country of Origin: CN
• Gear Stage High: 150 – 3000 RPM
• Gear Stage Low: 90 – 1480 RPM
• Head Tilt: ± 90°
• Load of Cross Table (Max.): 55 kg / 121 lbs.
• Milling Cap Cutter Head (max): max. Ø 63 mm / 2-1/2 in
• Milling Cap End Mill Cut (max): Ø 20 mm / 3/4 in
• Milling Machines Type: Gear Head
• Motor HP: 1.2
• Phase: Single
• Quill Travel: 50 mm / 1.969 in
• Spindle Taper: MT2 w /3/8" – 16 Draw Bar
• Table Dimensions: 500 mm / 19.685 in x 180 mm / 7.087 in
• T-Slot Size/Distance/Quantity: 63 mm / 2.480 in/12 mm / .472 in
• Voltage: 115
• Warranty: 3 Year
• Working Range: 185 mm / 7.284 in
• X-Axis: 280 mm / 11.023 in
• UPC: 726896801643
• Unit of Measure: Each
• Product Height (in): 36.8
• Product Length (in): 29.3
• Product Width (in): 21.65
• Product Weight (lbs): 227
• Optional Accessories
• Item # 9670107 Heavy duty floor stand

Specifications

• Manufacturer: Palmgren
• SKU: 9680164
• UPC: 726896801643
• Shipping Method: LTL Freight
• Weight: 250 lb
• Dimensions: 35 × 25 × 40 in
• Country of Origin: China
• Warranty: 3 Years (Parts)
