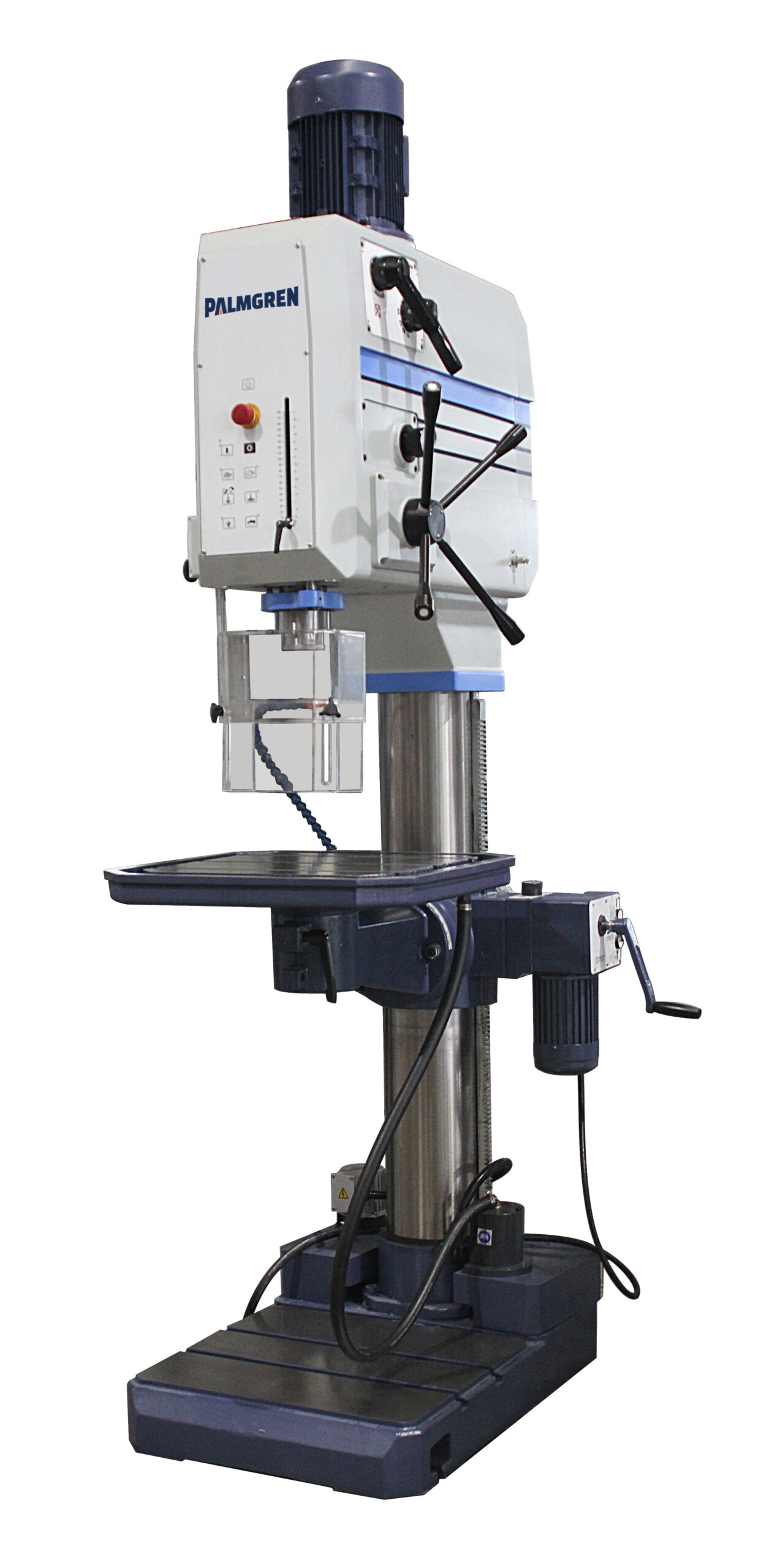

Palmgren 230V Three Phase 32” GH Drill Press 16-S 9680137
$15,022.15Current price is: $15,022.15.
- Spindle Travel: 7-7/8 in
- Capacity Cast Iron: 2 – 1/8 in
- HP: 4-5
- Capacity Steel: 2 in
Palmgren 230V Three Phase 32” GH Drill Press 16-S 9680137 is a Palmgren product in the Drill Presses collection.
Product Details
- Spindle Travel: 7-7/8 in
- Capacity Cast Iron: 2 – 1/8 in
- HP: 4-5
- Capacity Steel: 2 in
- Description
- These versatile, variable speed, gear head, drill presses are all gear driven, thus they are perfect for precision drilling applications and continuous industrial use. The Palmgren 32" Drill Presses use a gear driven transmission that is designed to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower.
- Features
- Extra wide speed range with 16 selectable speeds
- Spindle gear box is equipped with hardened and ground steel gears and shafts, lubricated by an internal oil pump for quiet, smooth operation
- Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Front mounted control panel designed for operator convenience
- Rack and pinion table raiser system
- T-slotted production table and base
- Front mounted, dial adjusted, work stop
- 8 inch column provides maximum head, table and base support and stability
- Flood coolant system
- Maximum spindle runout of 0.0005"
- Motorized table
- Table tilts left & right 45°
- Specifications
- Model: 80137
- Swing: 33 in
- Spindle Speed: 54 to 2400
- Spindle Taper: MT4/JT3
- Voltage: 230
- AMPS: 16
- Table Work Surface: 25 x 20.5 in
- Table Slots: 3
- Number of Speeds: 16
- Column Diameter: 8 in
- Base Size: 35.75 x 23.625 in
- Drive Type: Gear
- Phase: 3
- Table Slot Size: 14 mm
- Tilting Angle: 0° to 90°
- Quill Diameter: 88 mm
- Height: 92.5 in
- Width: 29 in
- Depth: 40.3 in
Specifications
- Manufacturer: Palmgren
- SKU: 9680137
- UPC: 726896801377
- Shipping Method: LTL Freight
- Weight: 1,401 lb
- Dimensions: 45 × 34 × 97 in
- Country of Origin: China
- Warranty: 3 Years (Parts)
| Weight | 1401.0 lbs |
|---|---|
| Dimensions | 45.0 × 34.0 × 97.0 in |
| Brand | Palmgren |
