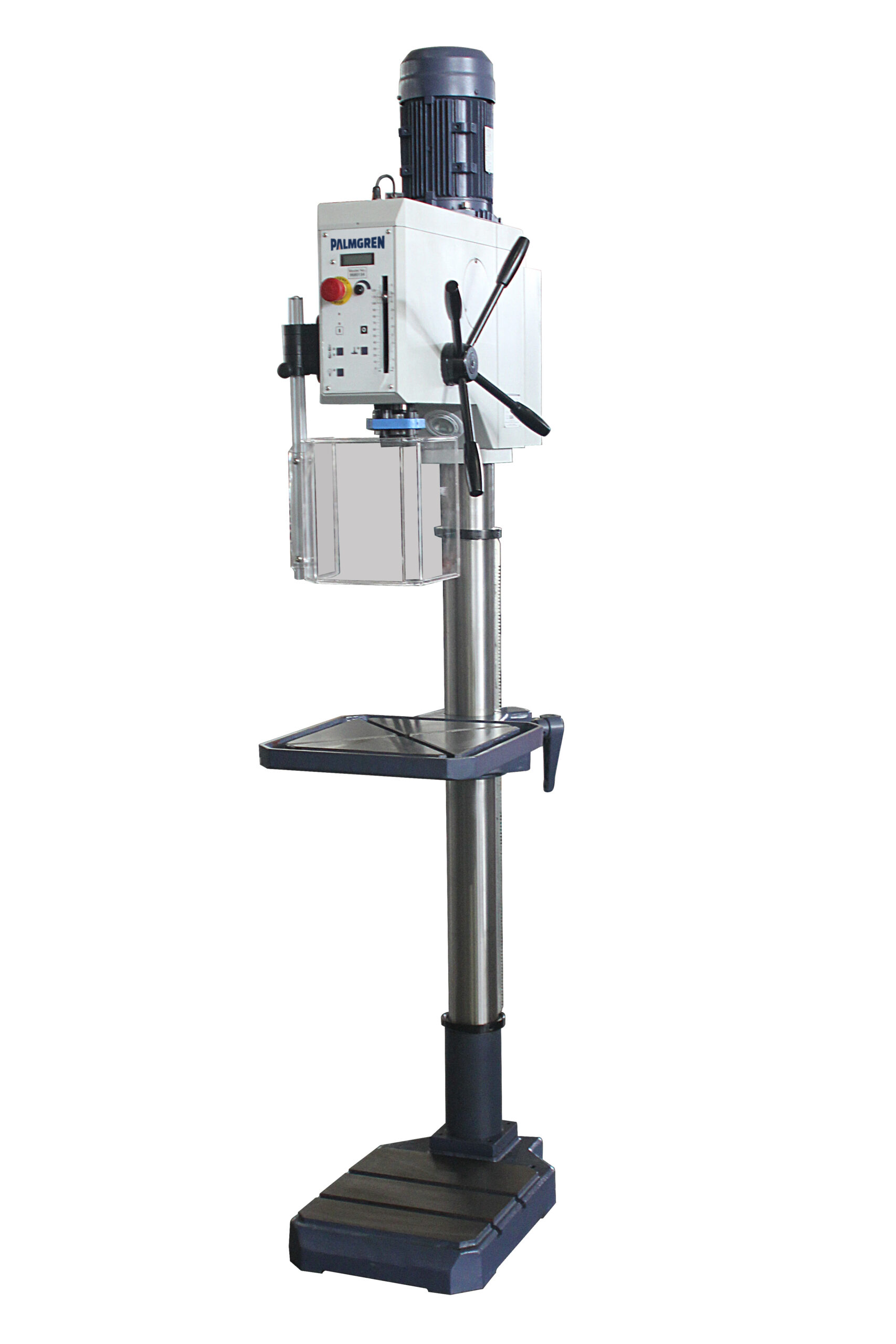

Palmgren 2HP 460V Three Phase 20” GH Drill Press 9680138
$5,893.55Current price is: $5,893.55.
- Spindle Travel: 5 in
- Capacity Cast Iron: 1 – 1/8 in
- Table Work Surface: 15.5 x 14.75 in
- Capacity Steel: 1 in
Palmgren 2HP 460V Three Phase 20” GH Drill Press 9680138 is a Palmgren product in the Drill Presses collection.
Product Details
- Spindle Travel: 5 in
- Capacity Cast Iron: 1 – 1/8 in
- Table Work Surface: 15.5 x 14.75 in
- Capacity Steel: 1 in
- Description
- Palmgren Gear Head Drill Presses are ideal for precision drilling applications and continuous industrial use. These versatile, gear driven, drill presses are ruggedly constructed with an all gear driven transmission to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower. The drill ensures positive and quiet operation by the use of steel and reinforced fiber gears.
- Features
- Wide speed range with 4 different speed settings
- Simple knob selectors for operator ease in controlling spindle speeds
- Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Front mounted control panel designed for operator convenience
- T-slotted production table and base
- Rack and pinion table raiser
- Front mounted dial adjusted work stop
- Interlocking chuck guard
- Maximum spindle runout of 0.0005"
- Work light
- Specifications
- Model: 80138
- Swing: 20 in
- Spindle Speed: 54 to 3800
- Spindle Taper: MT3
- Voltage: 230
- AMPS: 6.5
- Table Slots: 4
- Number of Speeds: Variable
- Column Diameter: 3.62 in
- Base Size: 13.75 x 12.625 in
- Drive Type: Gear
- HP: 2
- Phase: 3
- Table Slot Size: 14 mm
- Quill Diameter: 62 mm
- Height: 81 in
- Width: 15 in
- Depth: 25 in
Specifications
- Manufacturer: Palmgren
- SKU: 9680138
- UPC: 726896801384
- Shipping Method: LTL Freight
- Weight: 506 lb
- Dimensions: 30 × 20 × 86 in
- Country of Origin: China
- Warranty: 3 Years (Parts)
| Weight | 506.0 lbs |
|---|---|
| Dimensions | 30.0 × 20.0 × 86.0 in |
| Brand | Palmgren |
