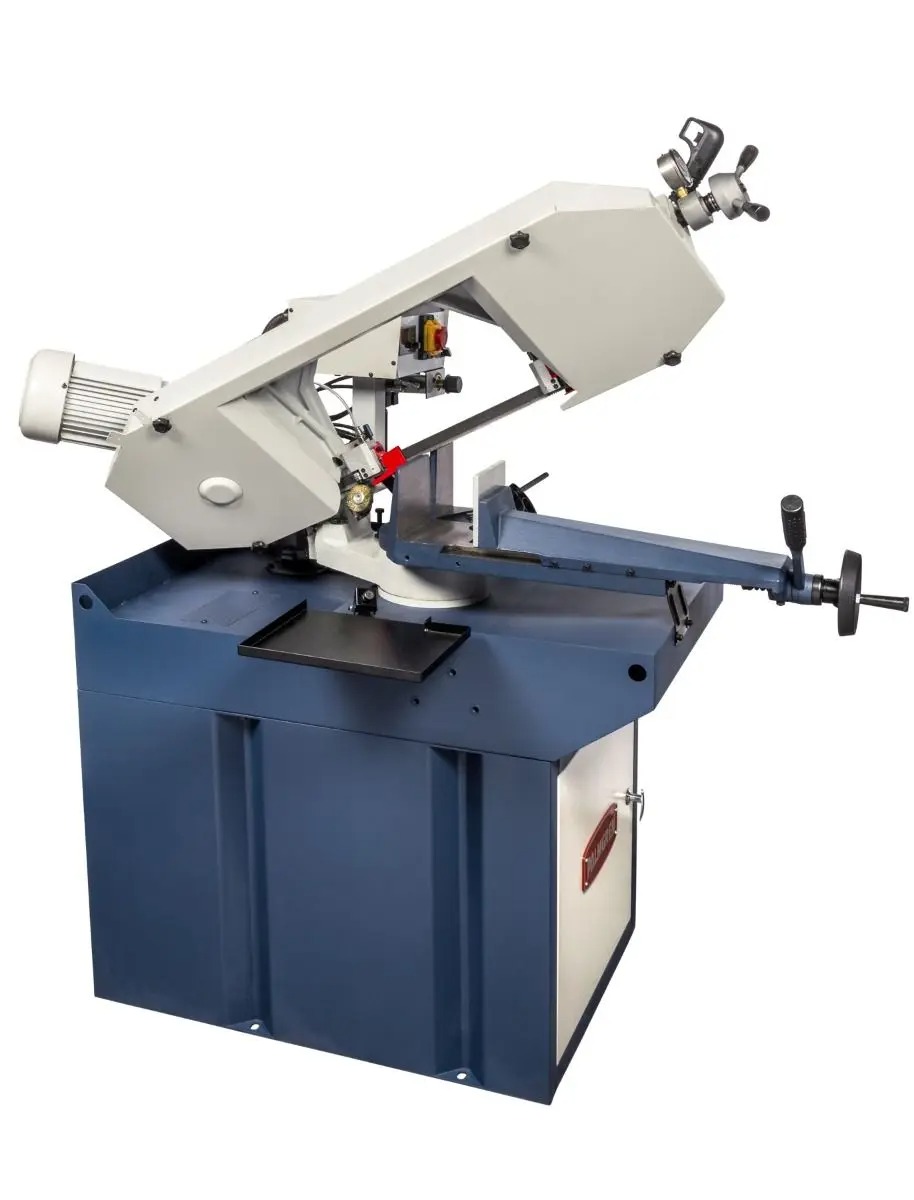

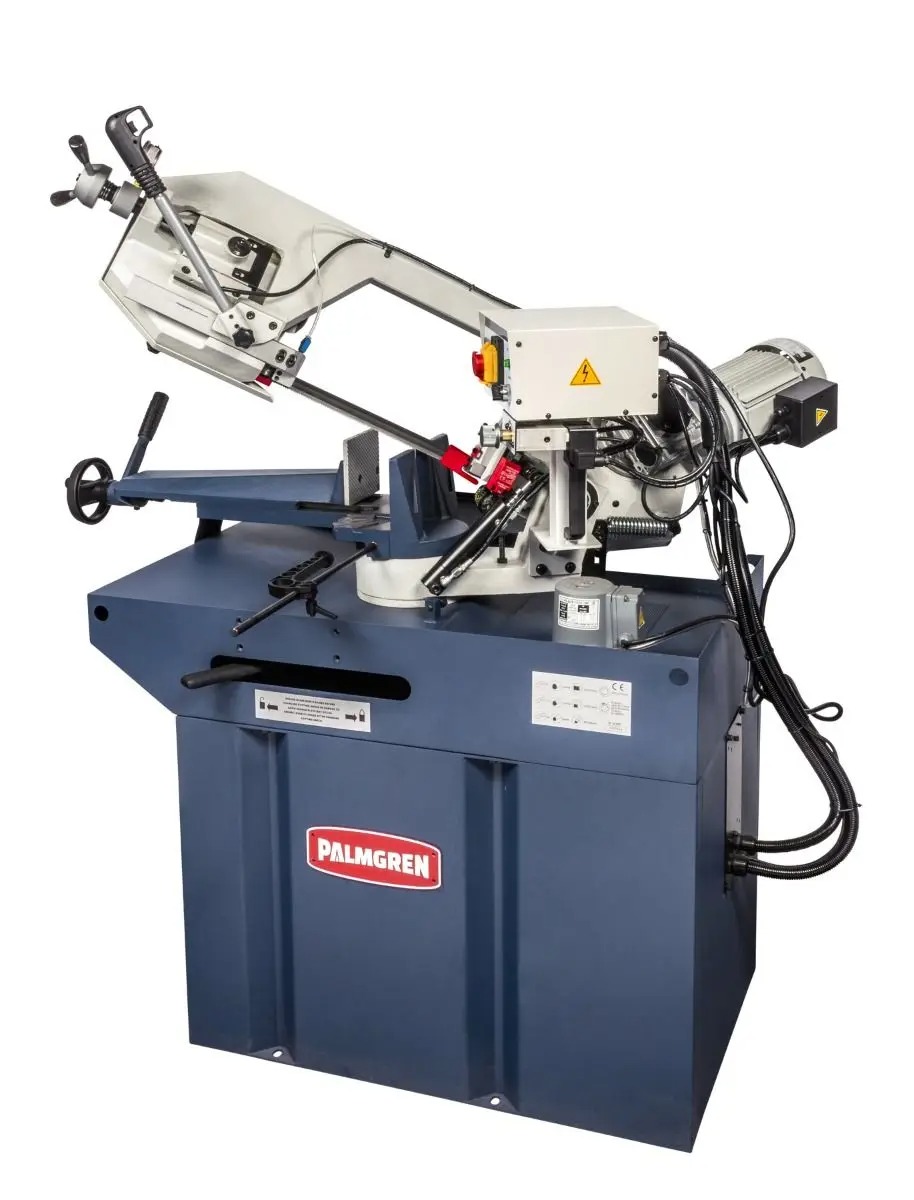

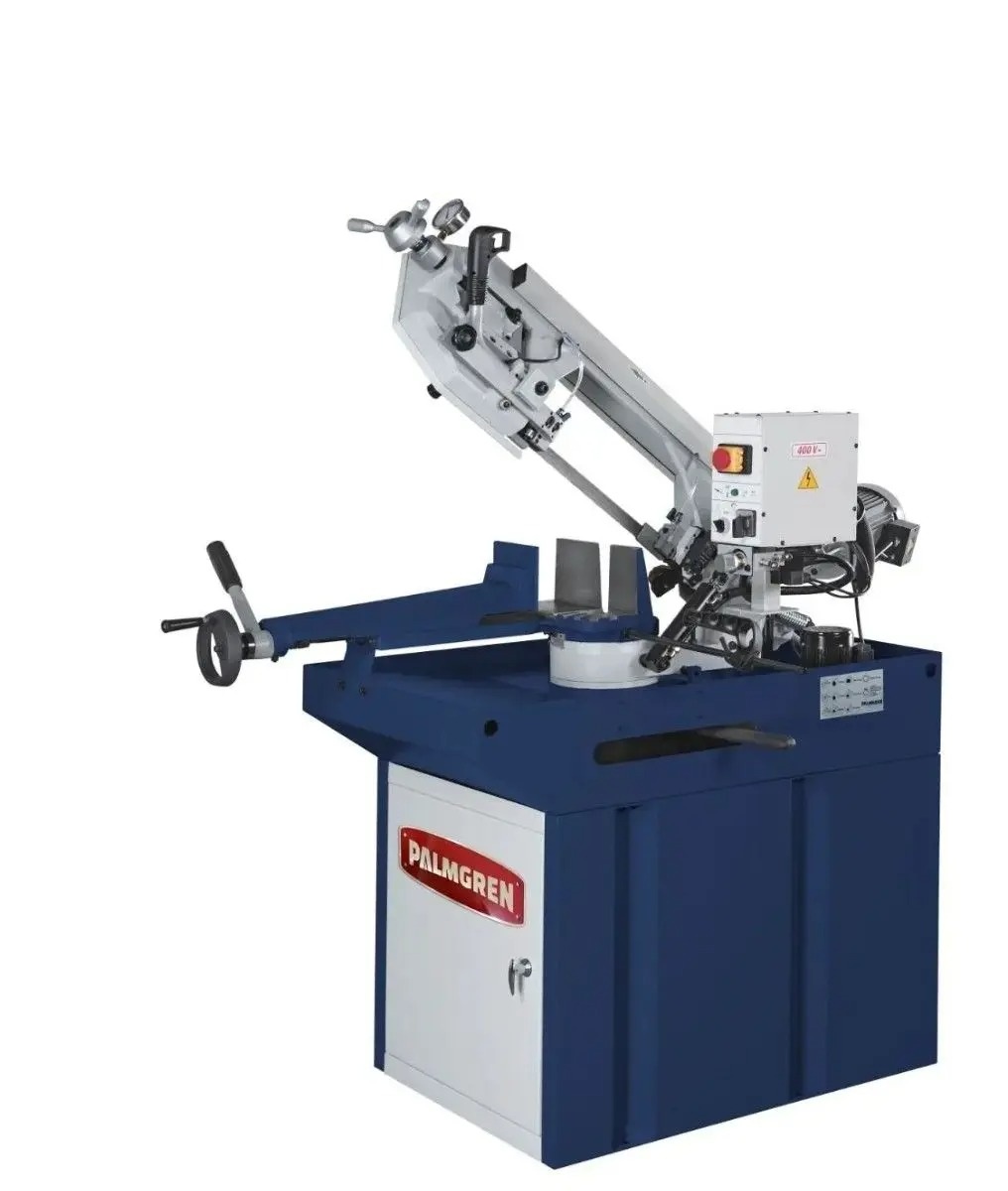

Palmgren 8″ Zip Miter Horizontal Band Saw 9683286
$2,737.15Current price is: $2,737.15.
- Cutting Angle: 0°/60°
- Motor: 1-1/2HP 115V Single Phase
- Round Material Max. 0 Degrees: 8-5/8"
- Round Material Max. 60 Degrees: 3-1/2"
Palmgren 8″ Zip Miter Horizontal Band Saw 9683286 is a Palmgren product in the Band Saws collection.
Product Details
- Cutting Angle: 0°/60°
- Motor: 1-1/2HP 115V Single Phase
- Round Material Max. 0 Degrees: 8-5/8"
- Round Material Max. 60 Degrees: 3-1/2"
- Description
- Palmgren’s 8" Zip-Miter band saw offers extra precision, speed and versatility. This saw delivers precise, fast cutting on a regular basis and are ideal for cutting ferrous and non-ferrous materials, solids, tubing and sectionals square and accurately. The pivot head design is ideally suited for individual cuts to low volume production cutting applications.
- Features
- Choice of manual feed or hydraulic down feed
- Precision machined cast saw head for maximum rigidity and vibration dampening performance
- Advanced direct drive gear box and motor maximizes the power of the motor to the blade
- Gear box utilizes a bronze worm gear and hardened and ground worm shaft in an oil bath
- Twin supported head pivot point utilizing tapper roller bearings guarantees ease of operation and very precise cuts
- Rapid positioning vise allows for fast set-ups and maximum clamping force on the workpiece
- Adjustable zero clearance blade guides utilizing a combination of ball bearing and tungsten carbide pads provide maximum support and ensure square accurate cuts
- Large handwheel with electro-magnetic micro switch preset to insure proper blade tension
- With out proper tension the saw will not start and if the blade loosens or breaks during operation the saw will stop
- Fine adjustment hydraulic down feed control is easily adjusted to fine tune the blade speed to the material being cut
- Flood coolant system with the coolant fed through both blade guides to maximize cooling and cleaning of the chips from the blade
- Adjustable work stop for repetitive cuts
- Solid one piece heavy duty steel base
- Safety electrical package includes overload & low voltage protection, safety spring loaded switch, emergency stop button and two speed motor switch
- Specifications
- Band Saw Type: Horizontal
- Cold Saw and Band Saw Saw Type: Manual
- Country of Origin: TW
- Cutting Angle Adjustment: Manual
- Feed: Hydraulic
- Machine Weight: 550
- Motor HP: 1-1/2
- Overall Dimensions (LxWxH): 53-1/8" x 28-1/8" x 58-1/4"
- Phase: Single
- Rectangle 0?: 9" x 7-1/4"
- Rectangle 60?: 3-1/2" x 3-7/8"
- Round @ 45 Degrees: 5-7/8"
- Saw Blade Diameter: 97" x 1" x 0.035"
- Sawing Type: Horizontal Band Saws
- Voltage: 115
- Warranty: 3 Year
- UPC: 726896832869
- Unit of Measure: EA
- Product Height (in): 35.8
- Product Length (in): 55.5
- Product Width (in): 27.6
- Product Weight (lbs): 583
Specifications
- Manufacturer: Palmgren
- SKU: 9683286
- UPC: 726896832869
- Shipping Method: LTL Freight
- Weight: 585 lb
- Dimensions: 60 × 30 × 40 in
- Country of Origin: Taiwan
- Warranty: 3 Years (Parts)
| Weight | 585.0 lbs |
|---|---|
| Dimensions | 60.0 × 30.0 × 40.0 in |
| Brand | Palmgren |
