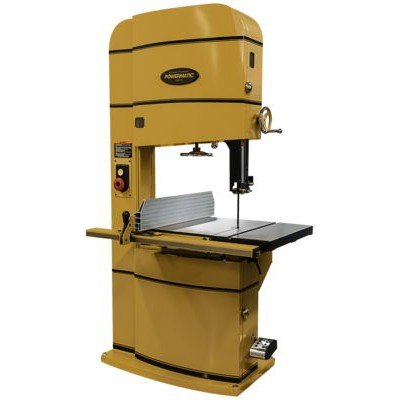

Powermatic PM2415B 24″ Bandsaw 5HP 3Ph 230/460V
$5,675.40Current price is: $5,675.40.
- 183Blade Length (in)
- 2500/4800 SFPMBlade Speed
- 2500/4800Blade Speed (SFPM)
- 15Cutting Capacity Height (In.)
2 in stock
Overview
Powermatic PM2415B 24" Bandsaw 5HP 3Ph 230/460V is documented as a Drum Sander from Powermatic Tools. The exact PM9-1791260B configuration is mapped to GT Machinery Solutions SKU JPW1791260B. Recorded technical data includes horsepower: 5 HP, motor power (hp): 5, and motor voltage (v.): 230/460. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Blade Length (in) | 183 |
|---|---|
| Blade Speed | 2500/4800 SFPM |
| Blade Speed (SFPM) | 2500/4800 |
| Cutting Capacity Height (In.) | 15 |
| Cutting Capacity Width (In.) | 24 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (in) | 4 |
| Horsepower | 5 HP |
| Maximum Tilt | 45° |
| Miter Gauge Positive Stops | 45, 90 |
| Motor Current (Amps) | 15/7.5 |
| Motor Phase | 3 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Product Type | Drum Sander |
| Stand Type | Floor |
| Table Height from Floor (In.) | 35 |
| Table Size | 24" x 34" |
| Table Size (L x W) (In.) | 24 x 34 |
| Table Tilt (Deg.) | 10 Left, 45 Right |
| Voltage | 230/460V |
| Warranty | 5 years |
| Weight | 1,067.000 lbs |
| Weight | 1067 lbs |
|---|---|
| Brand | Powermatic Tools |
