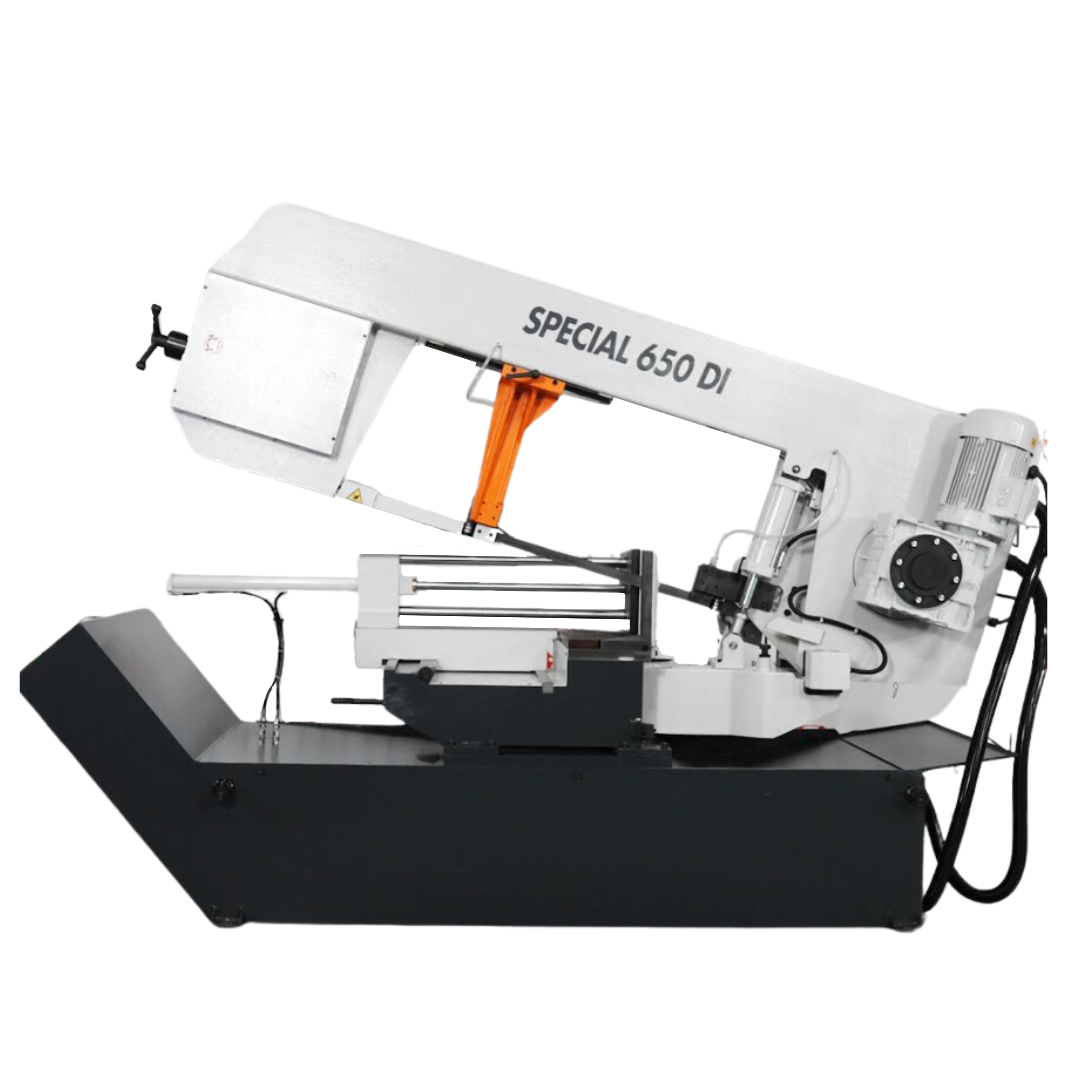

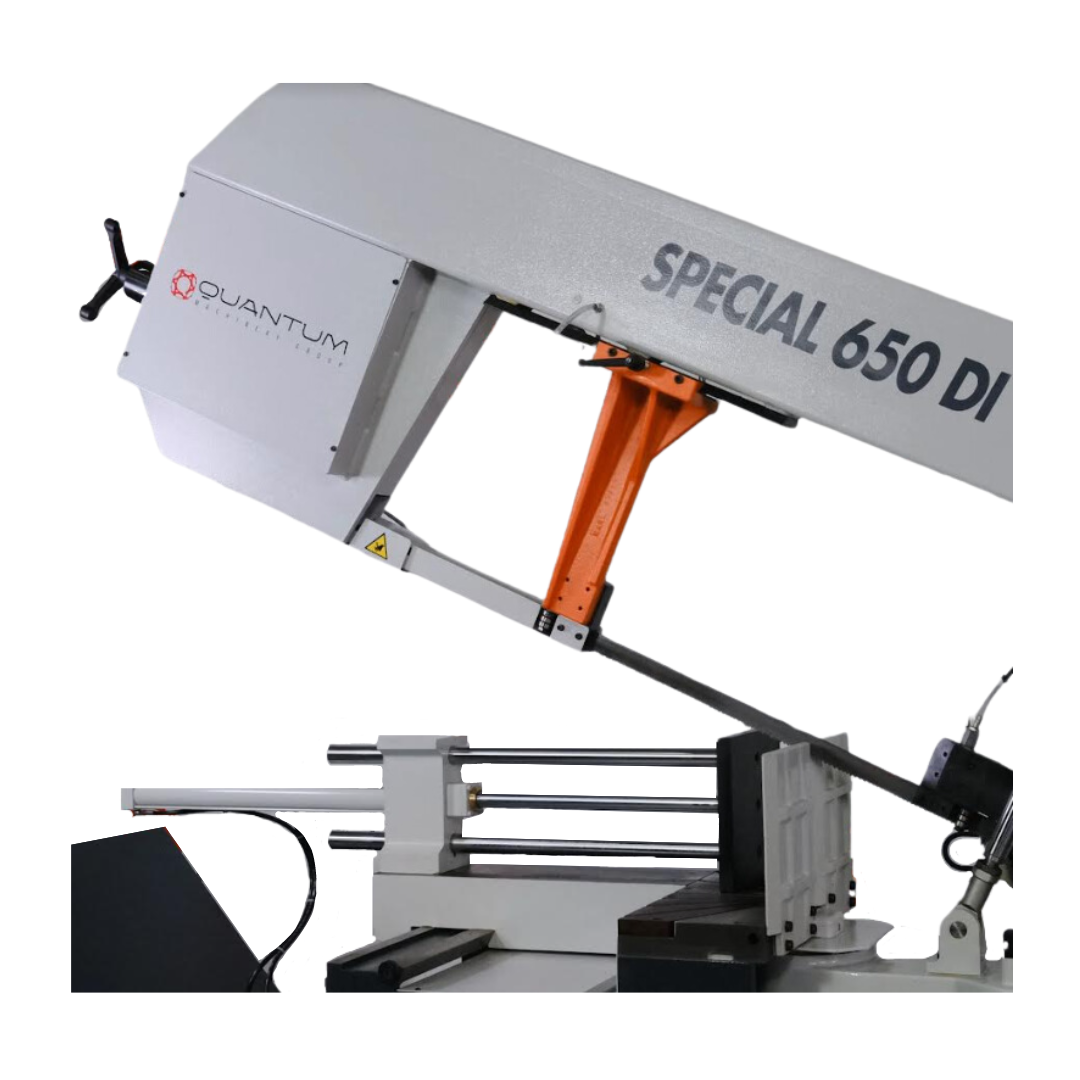

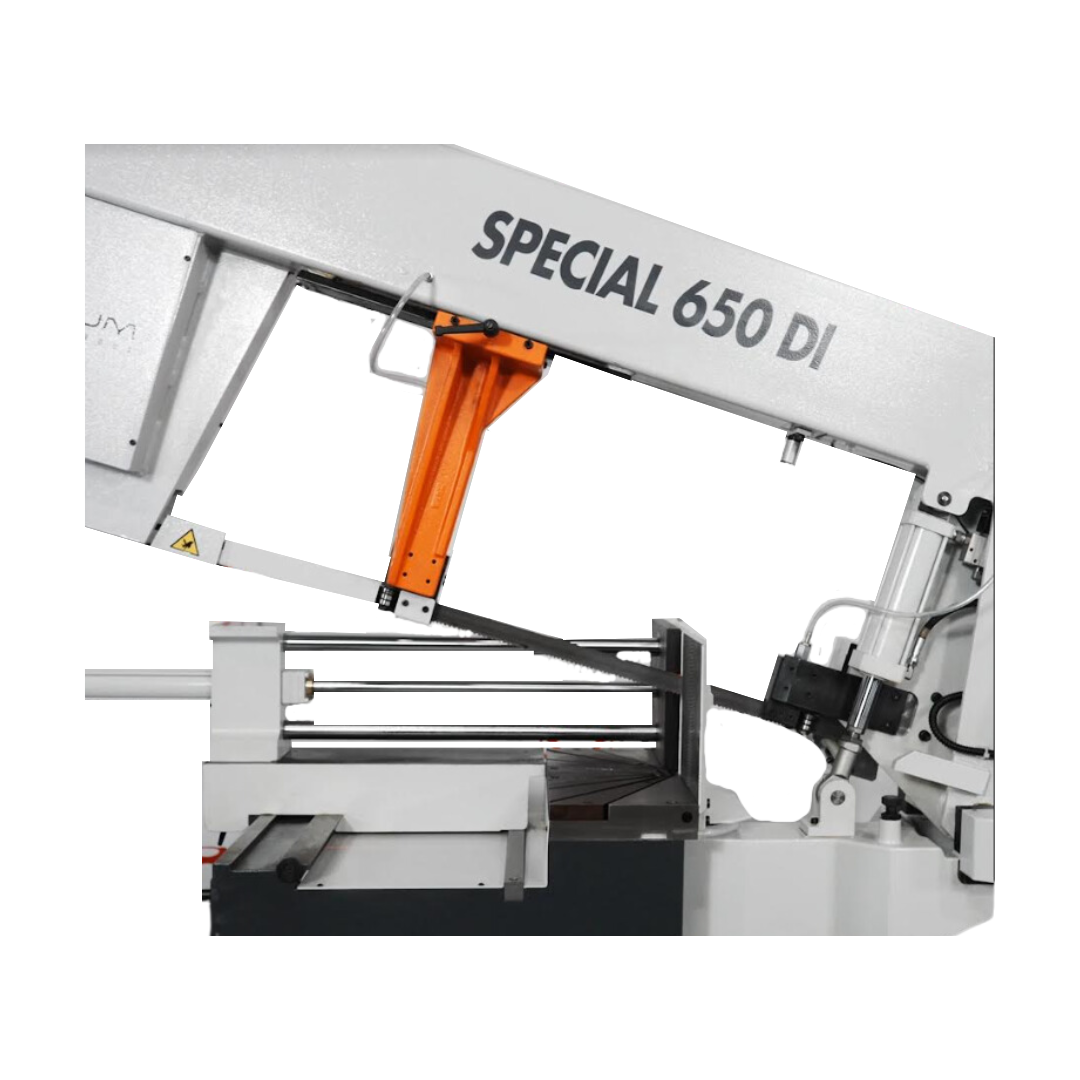

Quantum Machinery 220V Three Phase 18” Semi-Automatic Band Saw with Variable Speed Inverter S 650 DI
$25,795.25Current price is: $25,795.25.
- Blade Size: 5,270mm x 34mm x 1.1mm
- Vice Jaws Height: 9.84”
- Bed Height: 30”
- Cutting Thickness: 0.059”
Quantum Machinery 220V Three Phase 18” Semi-Automatic Band Saw with Variable Speed Inverter S 650 DI is a Quantum Machinery Group product in the Band Saws collection.
Product Details
- Blade Size: 5,270mm x 34mm x 1.1mm
- Vice Jaws Height: 9.84”
- Bed Height: 30”
- Cutting Thickness: 0.059”
- Semi-Automatic Operation
- Vice closing and activation of band motor
- Cutting bow down stroke
- Return of bow to initial position
- Band motor stop
- Vice opening
- Maximum Cutting Capacities
- Round Tube Straight Cut: 18” 45° Left Cut: 17.6” 60° Left Cut: 9.4” 45° Right Cut: 17.6” 60° Right Cut: 11.75”
- Straight Cut: 18”
- 45° Left Cut: 17.6”
- 60° Left Cut: 9.4”
- 45° Right Cut: 17.6”
- 60° Right Cut: 11.75”
- Square Tube Straight Cut: 7.75” 45° Left Cut: 7.75” 60° Left Cut: 7.75” 45° Right Cut: 7.75” 60° Right Cut: 7.75”
- Straight Cut: 7.75”
- 45° Left Cut: 7.75”
- 60° Left Cut: 7.75”
- 45° Right Cut: 7.75”
- 60° Right Cut: 7.75”
- Solid Round Straight Cut: 17.6” 45° Left Cut: 16.9” 60° Left Cut: 11.75” 45° Right Cut: 16.1” 60° Right Cut: 11.75”
- Straight Cut: 17.6”
- 45° Left Cut: 16.9”
- 60° Left Cut: 11.75”
- 45° Right Cut: 16.1”
- Rectangular Tube Straight Cut: 17.6”H x 24.4”W 45° Left Cut: 15.6”H x 17.6”W 60° Left Cut: 8.5”H x 12.5”W 45° Right Cut: 13.4”H x 17.6”W 60° Right Cut: 10.6”H x 16.5”W
- Straight Cut: 17.6”H x 24.4”W
- 45° Left Cut: 15.6”H x 17.6”W
- 60° Left Cut: 8.5”H x 12.5”W
- 45° Right Cut: 13.4”H x 17.6”W
- 60° Right Cut: 10.6”H x 16.5”W
- Features
- Appropriately dimensioned flywheels
- Strong blade guides with tight stress-raiser bearings and adjustable widia tips
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation
- Safety device on the flywheel casing and on the blade
- Adjustable stop for cuts of the same size
- Balde cleaning device with brush
- Includes: variable speed inverter, vertical hydraulic clamp, laser for saw cut, instruction manual, service tools, & 1 band saw blade
- Specifications
- Vice Jaws Length: 7.87”
- Cutting Range: 60° left up to 60° right
- Max Vice Opening: 24.4”
- 2 Speeds: 23 – 95 feet per minute
- Motor Hydraulic Gearcase: 0.55 kW
- Electropump for Band Cooling: 0.09 kW
- Electrical Requirements: 220V / Three Phase / 60Hz
- Overall Dims (w/o bar stop): 112” x 28” x 90”
- Overall Dims (w/bar stop): 112” x 75” x 90”
- Machine Weight: 2,760 lbs
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: S 650 DI
- Shipping Method: LTL Freight
- Weight: 3,000 lb
- Dimensions: 120 × 84 × 98 in
| Weight | 3000.0 lbs |
|---|---|
| Dimensions | 120.0 × 84.0 × 98.0 in |
| Brand | Quantum Machinery Group |
