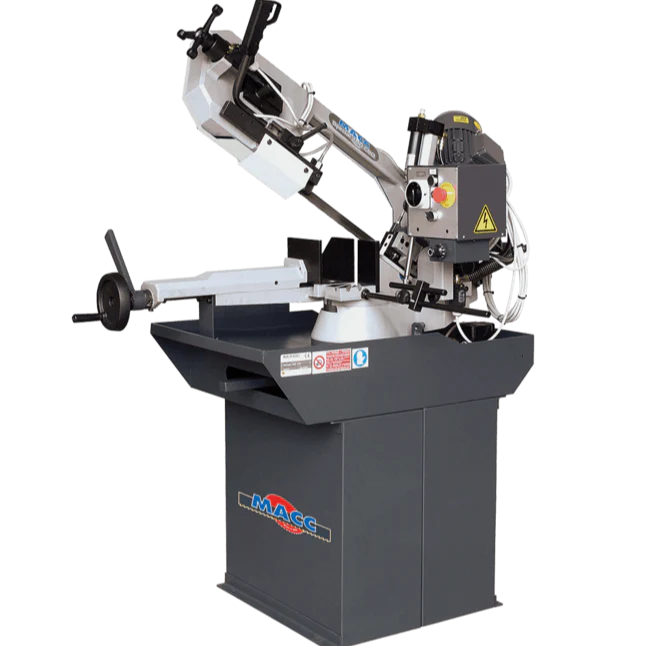

Quantum Machinery 220V Three Phase 8.6″ Manual Band Saw with Automatic Hydraulic Head Descent S 280 CSO
$5,187.00Current price is: $5,187.00.
- Cutting Thickness: 0.047”
- Cutting Range: 90° Straight up to 60° Right
- Blade Size: 2450mm x 27mm x 0.9mm
- 2 Speeds: 32-66 feet per minute
Quantum Machinery 220V Three Phase 8.6″ Manual Band Saw with Automatic Hydraulic Head Descent S 280 CSO is a Quantum Machinery Group product in the Band Saws collection.
Product Details
- Cutting Thickness: 0.047”
- Cutting Range: 90° Straight up to 60° Right
- Blade Size: 2450mm x 27mm x 0.9mm
- 2 Speeds: 32-66 feet per minute
- Maximum Cutting Capacities
- Round Tube Straight Cut: 8.6” 45° Right Cut: 6.25” 60° Right Cut: 4”
- Straight Cut: 8.6”
- 45° Right Cut: 6.25”
- 60° Right Cut: 4”
- Square Tube Straight Cut: 8.4” 45° Right Cut: 5.9” 60° Right Cut: 3.25”
- Straight Cut: 8.4”
- 45° Right Cut: 5.9”
- 60° Right Cut: 3.25”
- Rectangular Tube Straight Cut: 6”H x 9.75”W 45° Right Cut: 4.25”H x 6.25”W 60° Right Cut: 3.13”H x 3.6”W
- Straight Cut: 6”H x 9.75”W
- 45° Right Cut: 4.25”H x 6.25”W
- 60° Right Cut: 3.13”H x 3.6”W
- Features
- Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding, and vice closure manually operated, manual head return
- Vertical rotation on bolt with adjustable tapered bearings without backlash
- High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw
- Appropriately dimensioned flywheels
- Strong bond guides with tight stress-raiser bearings and adjustable widia tips
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch
- Vice with a device for quick approach
- Wide rotating material support table
- Accident-preventing devices on the flywheel casing, on the control handle, and on the blade
- Adjustable stop for cuts of the same size
- 24V low tension plant
- 0.06 kW power-driven pump for band cooling
- Includes: Bar stop, bar support arm, instruction manual, service tools, & 1 bandsaw blade
- Specifications
- Max Vice opening: 9.80”
- Power Driven Pump: 0.06 kW
- Electrical Requirements: 220V / Three Phase / 60Hz
- Overall Dims (w/o bar stop): 61.8” x 23.6” x 68.7”
- Overall Dims (w/bar stop): 61.8” x 36.2” x 68.7”
- Machine Weight: 485 lbs
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: S 280 CSO
- Shipping Method: LTL Freight
- Weight: 510 lb
- Dimensions: 70 × 48 × 75 in
| Weight | 510.0 lbs |
|---|---|
| Dimensions | 70.0 × 48.0 × 75.0 in |
| Brand | Quantum Machinery Group |
