Quantum Machinery Nargesa 220V Single Phase Bar Twisting and Scrolling Machine MT150A
$12,037.35Current price is: $12,037.35.
- Max Twisting Capacity: ¾”
- Max Bending Capacity: 5/8”
- Rotary Speed: 4 RPM
- Motor Power: 0.37 kW
Quantum Machinery Nargesa 220V Single Phase Bar Twisting and Scrolling Machine MT150A is a Quantum Machinery Group product in the Metal Forming & Shaping collection.
Product Details
- Max Twisting Capacity: ¾”
- Max Bending Capacity: 5/8”
- Rotary Speed: 4 RPM
- Motor Power: 0.37 kW
- Description
- The Nargesa MT150A Bar Twisting and Scrolling Machine was patented by Prada Nargesa many years ago and it makes Quantum Machinery a leading company at manufacturing this kind of equipment. It has been made in a welded and mechanized steel monoblock. It is thought to work cold iron. Ideal for making all kinds of pieces for the ornamental forging, balusters, volutes, etc. Used in: window grill, balusters, tables, and chairs making a lot of different shapes in round, square, tubular profiles, handrails, flat bars, etc.

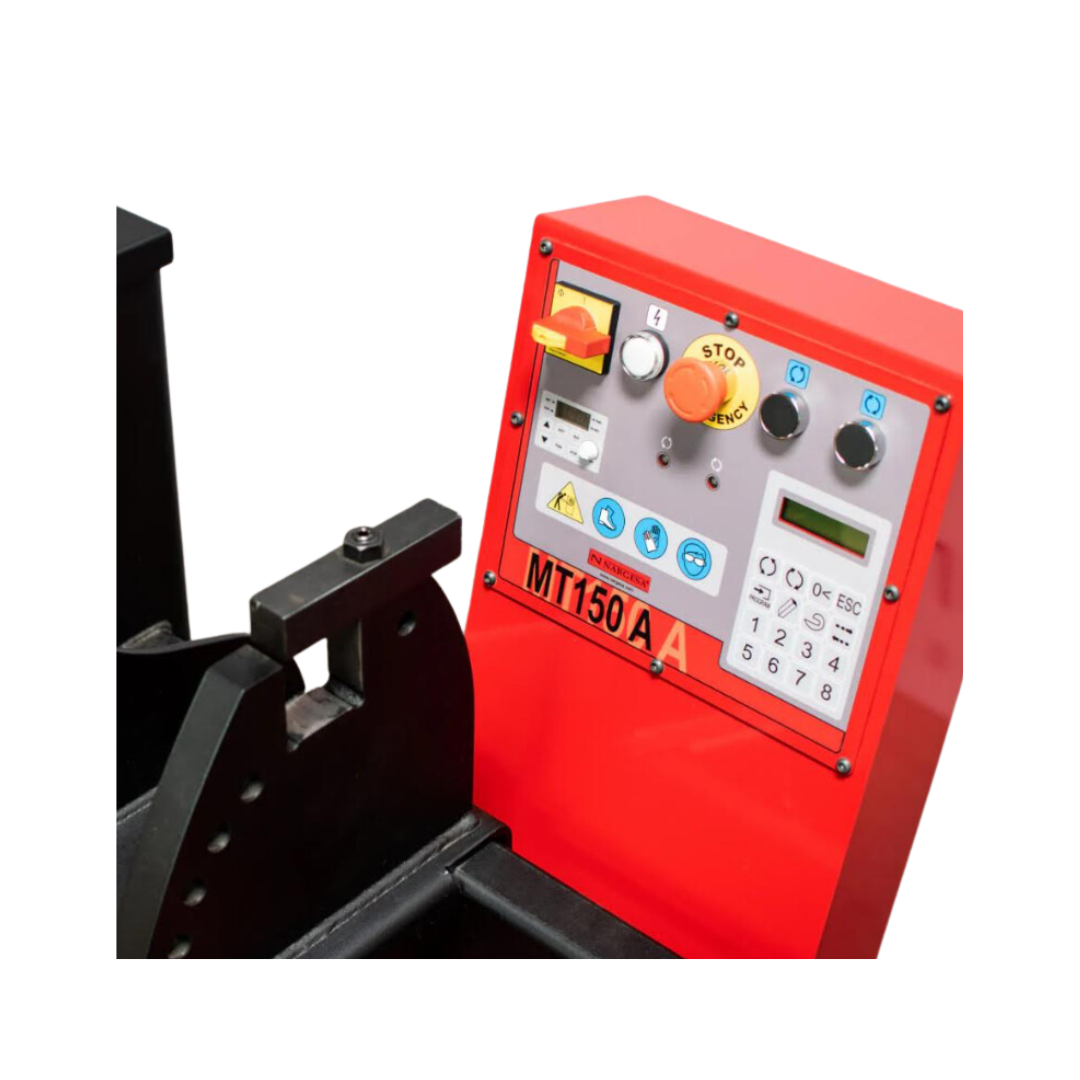

- The MT150A Control Panel
- Easy use
- Digital screen
- Touch pad
- Piece counter
- Automatic unbolt
- Capacity for 8 different memories
- Features
- Safe and reliable transmission by a motor reducer with flat treated pinions, achieving a remarkable performance and least maintenance
- Perfect for making all kinds of ornamental standard parts and essential to make your own designs, a lot more demanded in the market. The pieces requested by architects, technicians, and final customers, make it a very important tooling in a blacksmith workshop
- Working method by twisting and flexion in cold
- Machine suitable for small and medium production
- The MT150A has a NC that enables it to make bigger productions
- Possibility of buying the tooling for the machine in mm or inches
- NC programmer to repeat series, piece counter, automatic unbolt, memories
- Adjustable millimeter scale on its head to make all parts the same
- Electric panel command with double button, right and left, which makes it a very easy handling machine
- The twisting machine Nargesa MT150A is equipped with a complete set of standard tooling by means of which the user can make a great deal of shapes: twisted, scrolls, bending, hooks, chains
- Specifications
- Max Scrolling & Bending in Flat Bar: 1¼” x 3/8”
- Max Continued Scrolling Length: 37.75”
- Electrical Requirements: 220V / Single Phase / 60Hz
- Machine Dims: 89” x 25” x 44”
- Machine Weight: 575 lbs
- Optional Add-Ons
- Fitting plates
- Specialized Tooling
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: MT150A
- Shipping Method: LTL Freight
- Weight: 700 lb
- Dimensions: 94 × 30 × 48 in
| Weight | 700.0 lbs |
|---|---|
| Dimensions | 94.0 × 30.0 × 48.0 in |
| Brand | Quantum Machinery Group |
