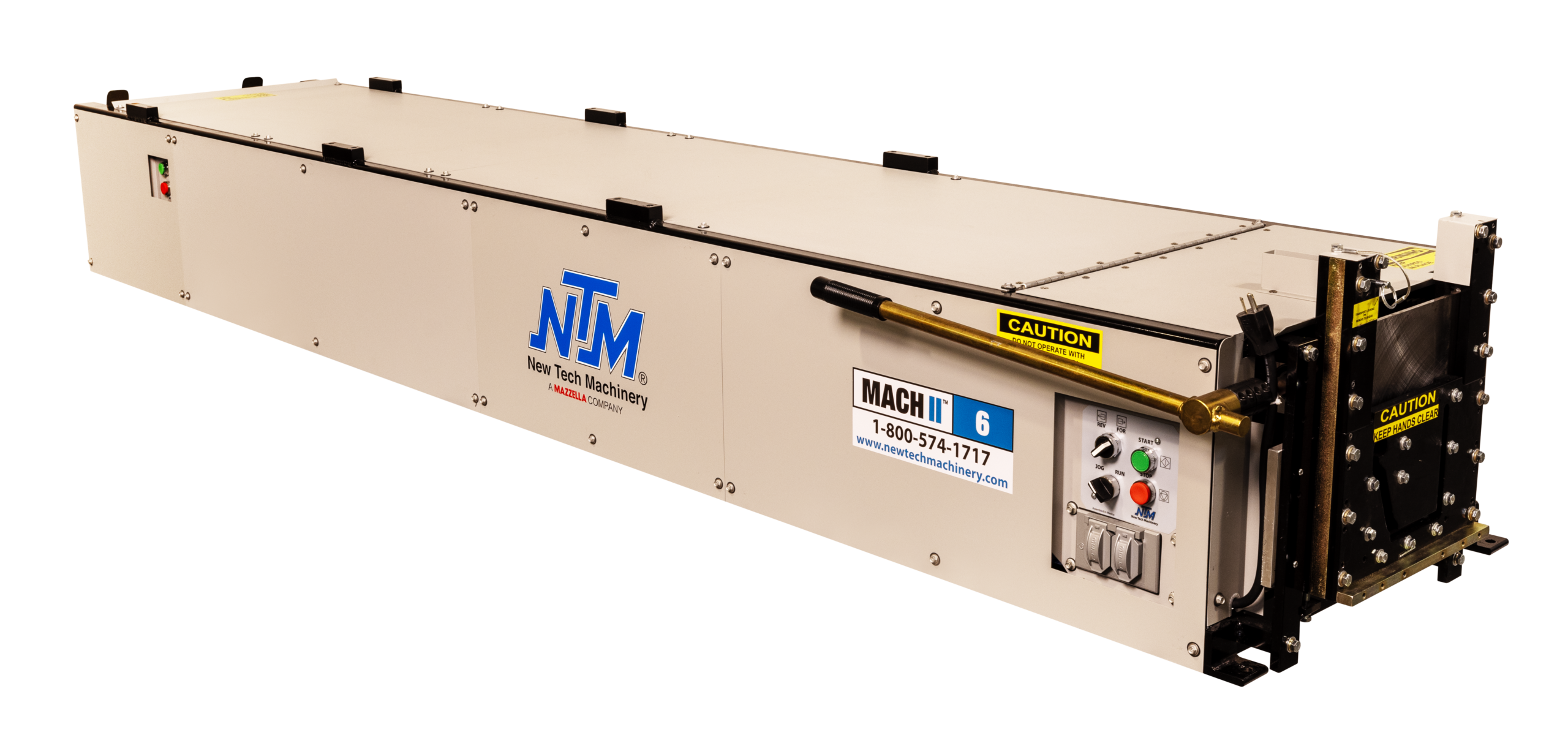

New Tech Machinery Mach II 6” Gutter Machine Basic Configuration with Shear MG6
$6,597.50Current price is: $6,597.50.
- Speed: 50 ft./min (15m/min) Approx.
- Material Width: 6” Gutter: 15” (380mm)
- Drive: Electrically Driven Polyurethane Rollers
- Electric Motor: 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
New Tech Machinery Mach II 6” Gutter Machine Basic Configuration with Shear MG6 is a New Tech Machinery product in the Metal Forming & Shaping collection.
Product Details
- Speed: 50 ft./min (15m/min) Approx.
- Material Width: 6” Gutter: 15” (380mm)
- Drive: Electrically Driven Polyurethane Rollers
- Electric Motor: 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
- Description
- The award-winning MACH II has taken the seamless gutter industry to a whole new level. The only way to compete in the gutter-forming business is to own the MACH II. It’s the most copied machine in the industry, so don’t get stuck with an imitation! Offered with the industry’s best warranty.
- *Basic machine with shear (no reels, reel stands, or cradles)
- Standard Features
- Polyurethane Drive Rollers
- Stainless Steel Forming Rollers
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Welded Tubular Steel Frame
- Forward Pulling, Easy Cut Shear for Accuracy
- Industry’s Best Warranty
- Power Interruption Safety Circuit
- Specifications
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle
- Height: 4’ (1.2m)
- Weight: 1,250 lbs. (570kg)
- Materials Formed: Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized) Painted Aluminum: .019″ to .032″ (.5mm to .8mm) Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
- Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
- Shear: Manually Powered, Hardened Tool Steel Blades & Shear Dies
- Max Coil Weight: Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle
- Max Outside Diameter for Coil: 30″ (762mm) on reel
- Available Options & Accessories
- Turnstile reel stand
- 16" ID adjustable width Reel (maximum weight 1,000 lbs.)
- 20" ID adjustable width reel (maximum weight 1,000 lbs.)
- Transfer rack for reel stands
- 5" or 6" cradle
- Single run-out stand
- Set of three run-out stands
- 12-Volt system
- CE Certified wiring
- Riser pad to raise machine 6" – 8"
- Riser pad to raise machine 10" – 12"
- Remote, 4-button start / stop / forward / reverse for 110 Volt – 220 Volt
- Remote, 4-button start / stop / forward / reverse for 12 Volt DC
- Hook assembly for 5", 6" or 5"/6" machine
- Bottom bead option (combo machine requires both BB5 and BB6) ** Not available for economy machines
- 5" crate
- 6" and 5"/6" combo crate
- 5” Gutter Machine Cover Kit
- 6” & 5/6” Gutter Machine Canvas Cover Kit
- Cart for 5", 6", or 5"/6" gutter machine with casters (two are locking)
- EZ-Counter Computerized Length Controller ** Flange / shear options quoted upon request
Specifications
- Manufacturer: New Tech Machinery
- SKU: MG6
- Shipping Method: LTL Freight
- Weight: 1,350 lb
- Dimensions: 130 × 34 × 58 in
- Country of Origin: United States of America
- Warranty: 3 Years (Parts)
| Weight | 1350.0 lbs |
|---|---|
| Dimensions | 130.0 × 34.0 × 58.0 in |
| Brand | New Tech Machinery |
