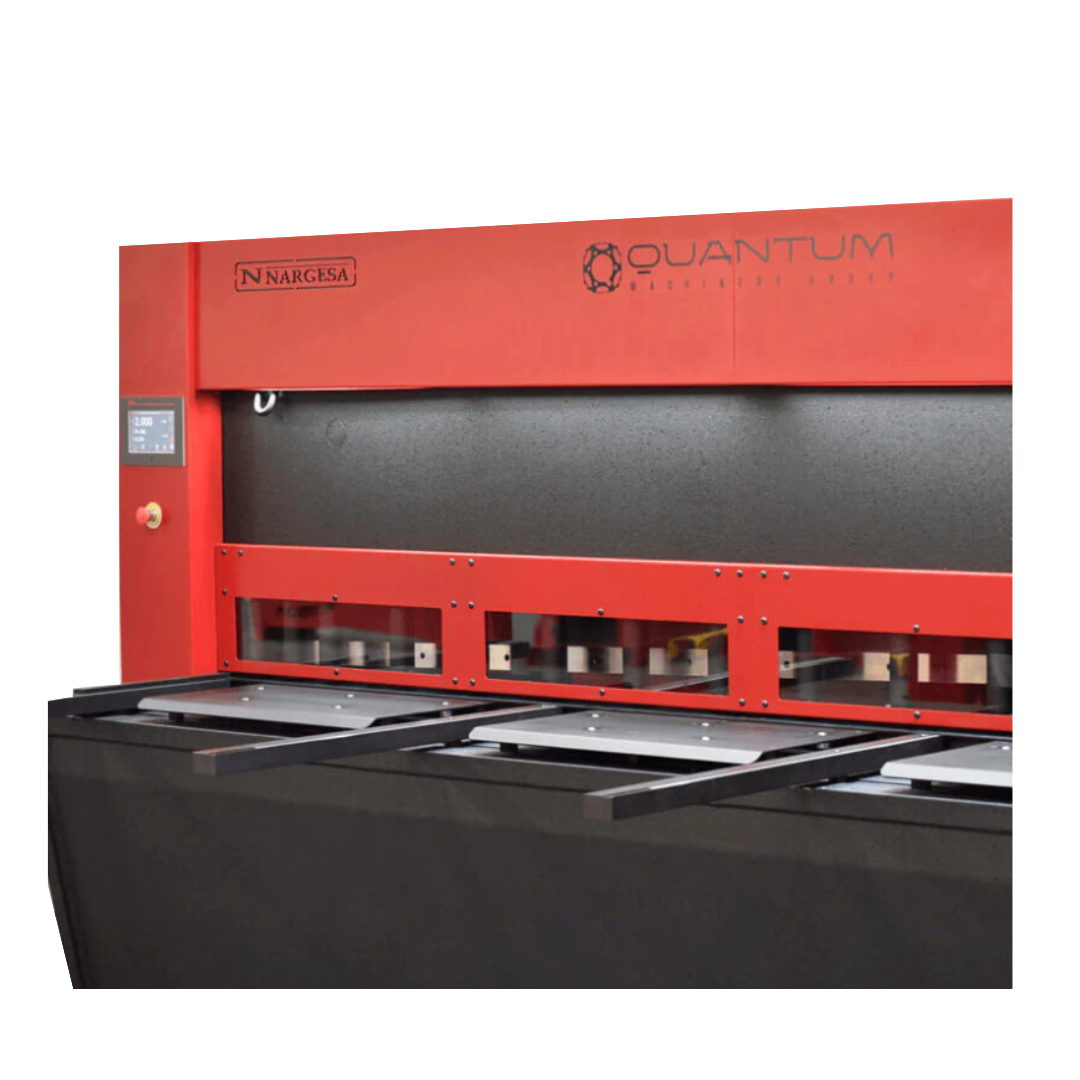

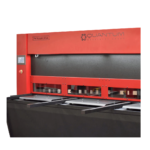

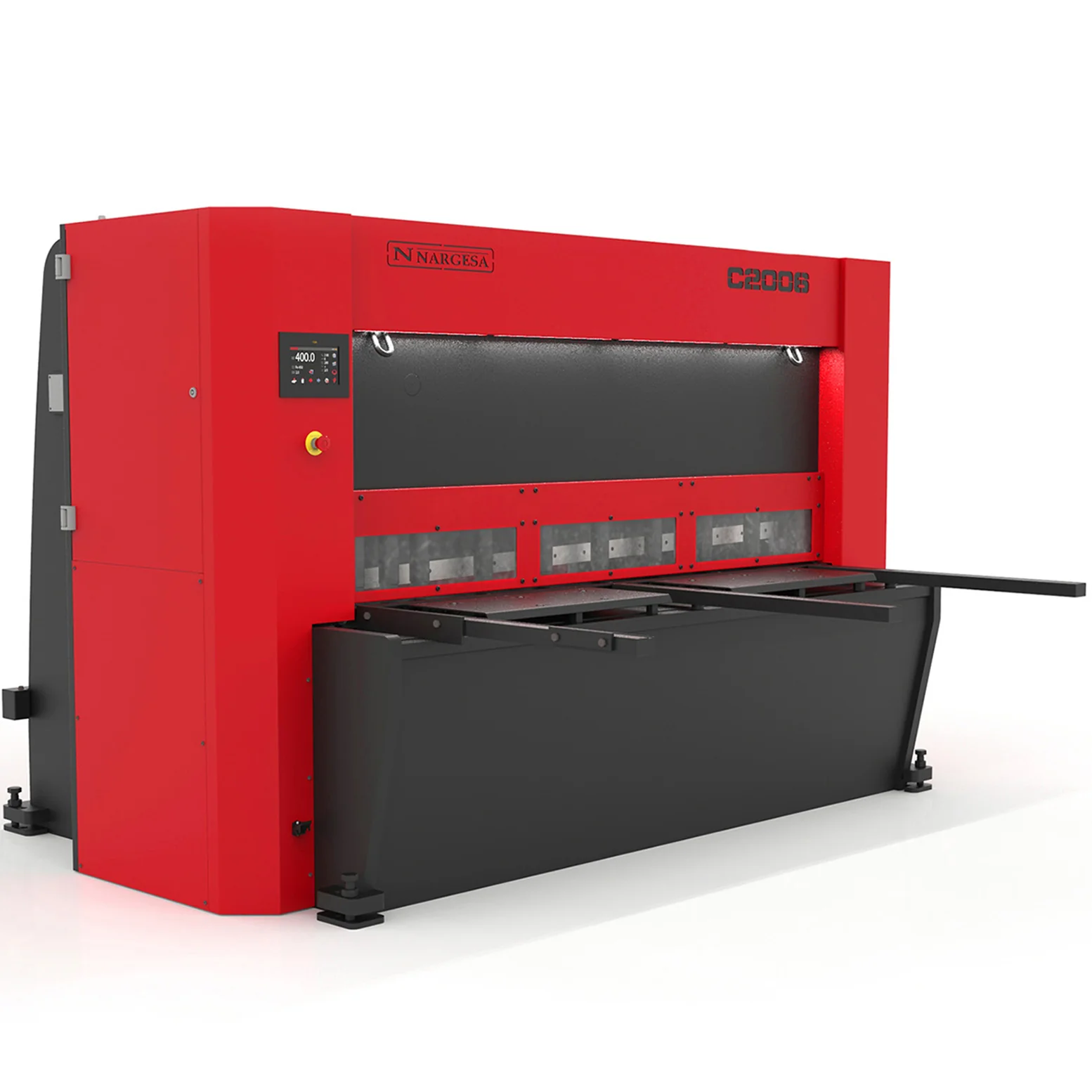

Quantum Machinery Nargesa 6.5ft 480V Three Phase Hydraulic Vertical Cut Shear with CNC Control C2006
$31,857.50Current price is: $31,857.50.
- Cutting Length: 79”
- Goose Neck for Cuts with Bigger Lengths: 7.5”
- Accuracy & Repeatability of Positioning: from +/- 0.004”
- Millimeter Squaring Arm Length: 39.3”
Quantum Machinery Nargesa 6.5ft 480V Three Phase Hydraulic Vertical Cut Shear with CNC Control C2006 is a Quantum Machinery Group product in the Shears collection.
Product Details
- Cutting Length: 79”
- Goose Neck for Cuts with Bigger Lengths: 7.5”
- Accuracy & Repeatability of Positioning: from +/- 0.004”
- Millimeter Squaring Arm Length: 39.3”
- Description
- The last generation of QUANTUM NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.
- Advantages of Vertical Cut Instead of Swing Cut
- Energy Savings: Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving
- Cutting Quality: Clean, perfect, and accurate cut
- Life of the Blades: The blades wear is almost nule. The life of the blades is 4 times higher than other sharing systems
- Features
- CNC back gauge
- Digital display
- 4-edged lower and upper blades suitable for stainless steel
- Cutting area lit up by LEDs
- Thin marking zone for manual cutting
- Driving with safety pedal and emergency stop
- Back overture with safety optoelectronic devices
- CNC Control ESA 262 Features
- The operator only has to enter the type of material, thickness, distance from the gauge and the CNC will automatically arrange all components to obtain an optimal result
- Equipped with a 7” touch screen which makes all operations on the machine simpler and more intuitive
- You can manage up to 3 axes and 16 + 12 I/O with an integrated PLC
- Storage of thousands of parts programs
- 7” 800×480 color touch screen resolution
- 128 MB silicon disk
- 2 analog inputs, 12-bit resolution
- 16 digital inputs (24V DC)
- 16 digital outputs (24V DC, 0.7 A max) protected against overloads and short circuits
- 1 RS232 serial port
- 1 CAN port with 9 contacts Sub D F connector
- 24V DC power supply
- 1 USB input
- 1 Ethernet port that allows connection remotely
- Specifications
- Max Thickness in Mild Steel: 0.23”
- Max Thickness in Stainless Steel: 0.15”
- Independent Hydraulic Rammers: 10 Units
- Squaring Arms: Two
- Strokes per Minute: 10 stroke (all length)
- Fix Cut Inclination: 1.75°
- Guage Displacement: 27.5”
- Hydraulic Pump: 16 liters
- Container Capacity: 73 liters
- Motor Power: 7.5HP
- Electrical Requirements: 480V / Three Phase / 60Hz
- Machine Dims: 113" x 93" x 71"
- Approx Machine Weight: 11,250 lbs
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: C2006(480V)
- Shipping Method: Flatbed
- Weight: 11,500 lb
- Dimensions: 120 × 100 × 84 in
| Weight | 11500.0 lbs |
|---|---|
| Dimensions | 120.0 × 100.0 × 84.0 in |
| Brand | Quantum Machinery Group |
