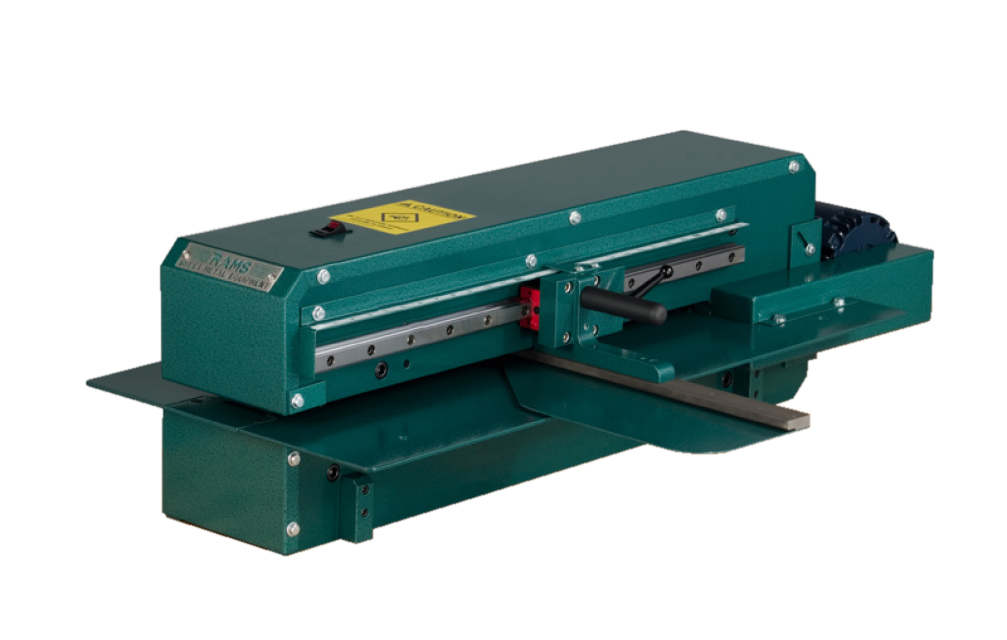

RAMS 16 Gauge Table Mount Slitter RAMS-2011-T
$3,376.75Current price is: $3,376.75.
- Capacity 16 GA. MAX. Mild Steel
- MIN. Slit Width 3/4"
- MAX. Slit Width 24-3/8"
- Approx. Speed 65 FPM
RAMS 16 Gauge Table Mount Slitter RAMS-2011-T is a Rams Sheet Metal Equipment product in the Metal Forming & Shaping collection.
Product Details
- Capacity 16 GA. MAX. Mild Steel
- MIN. Slit Width 3/4"
- MAX. Slit Width 24-3/8"
- Approx. Speed 65 FPM
- Description

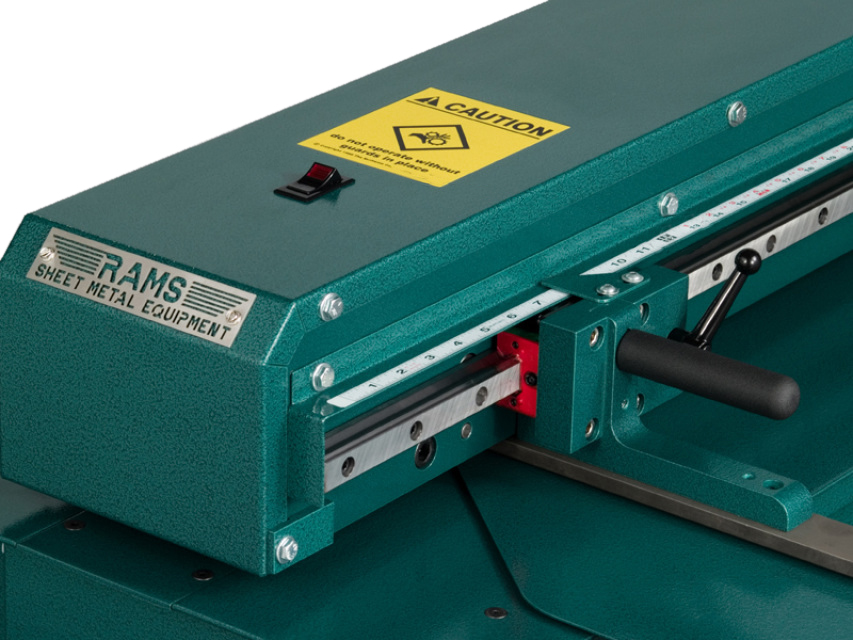

- THK Bearing Slide Rail for effortless one hand adjustments
- Easy to read scale and an adjustable top cutter, eliminating the need for shims
- 1 HP electric motor, 110-115V single phase
- Cabinet is heavy gauge steel with a Hammertone Green Finish
- Holds a tolerances of +/- .007 over an 8 foot distance.
- Specifications
- Dimensions 36" x 28" x 6"
- Approx. Weight 375 LBS
- 16 GAUGE SLITTER MAXIMUM CUTTING CAPABILITIES
- MILD STEEL: 16 ga | .063"
- GALVANIZED SHEET METAL: 16 ga | .063"
- STAINLESS STEEL: 18 ga | .048"
- ALUMINUM: 14 ga | .080"
- COPPER: 14 ga | .080"
- BRASS: 14 ga | .080"
- TRUSS PLATES: 16 ga | .063"
- PLASTICS: 12 ga | .109"
Specifications
- Manufacturer: Rams Sheet Metal Equipment
- SKU: RAMS-2011-T
- Weight: 430 lb
- Dimensions: 52 × 39 × 24 in
| Weight | 430.0 lbs |
|---|---|
| Dimensions | 52.0 × 39.0 × 24.0 in |
| Brand | Rams Sheet Metal Equipment |
